Memory Seat/Mirror/Adjustable Pedals Module C2 - Gray 16 Way Connector End View

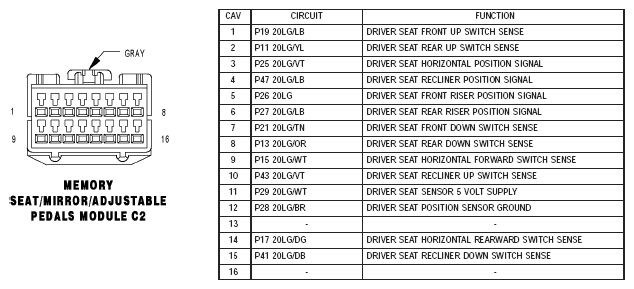

Fig 1: Memory Seat/Mirror/Adjustable Pedals Module C2 - Gray 16 Way Connector End View
Courtesy of CHRYSLER GROUP, LLC
