Manual Temperature Control Head

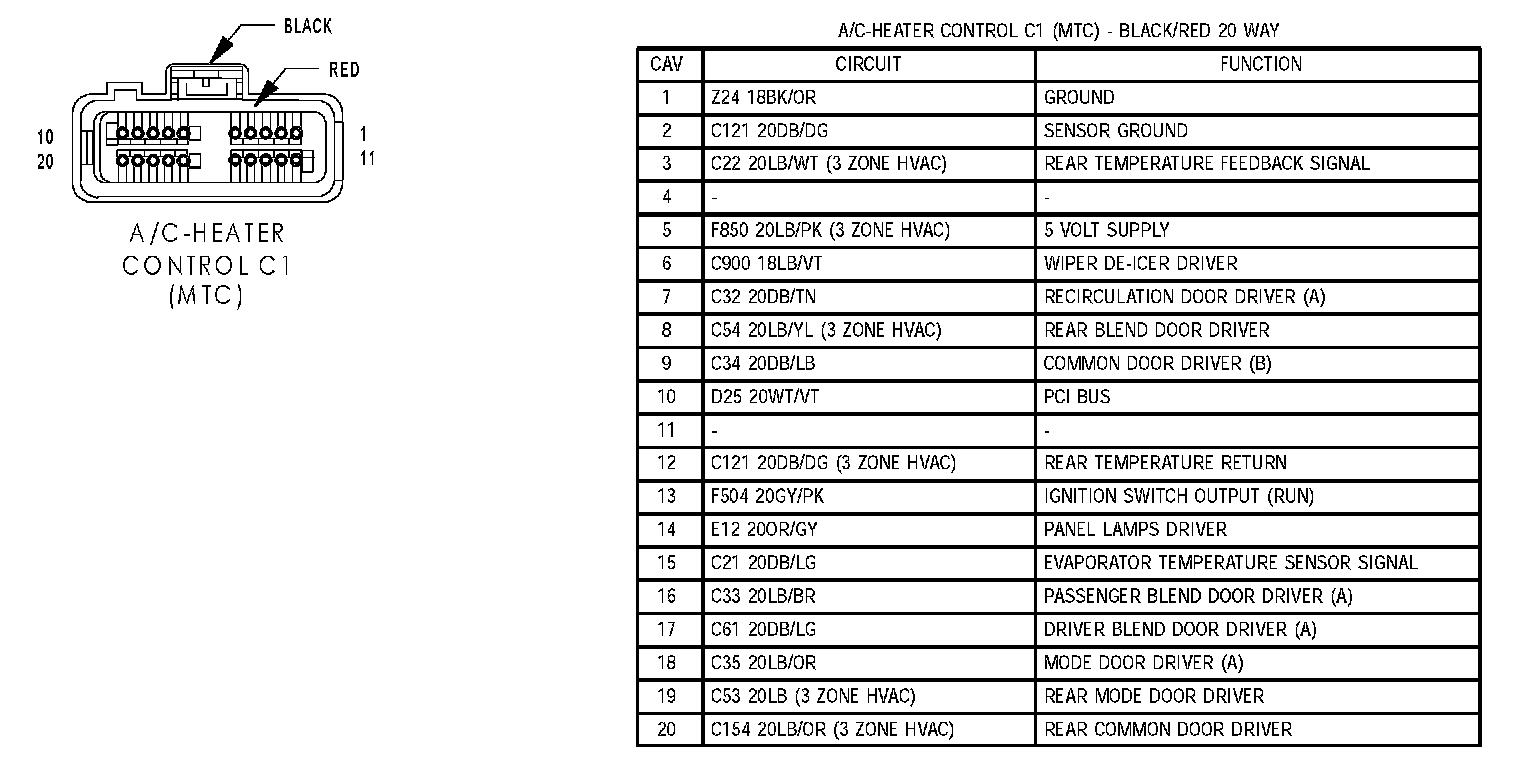

A/C-Heater Control C1 (MTC):
A/C-Heater Control C2 (MTC):
Rear A/C Heater Unit (3 Zone HVAC):
