Chime Inoperative

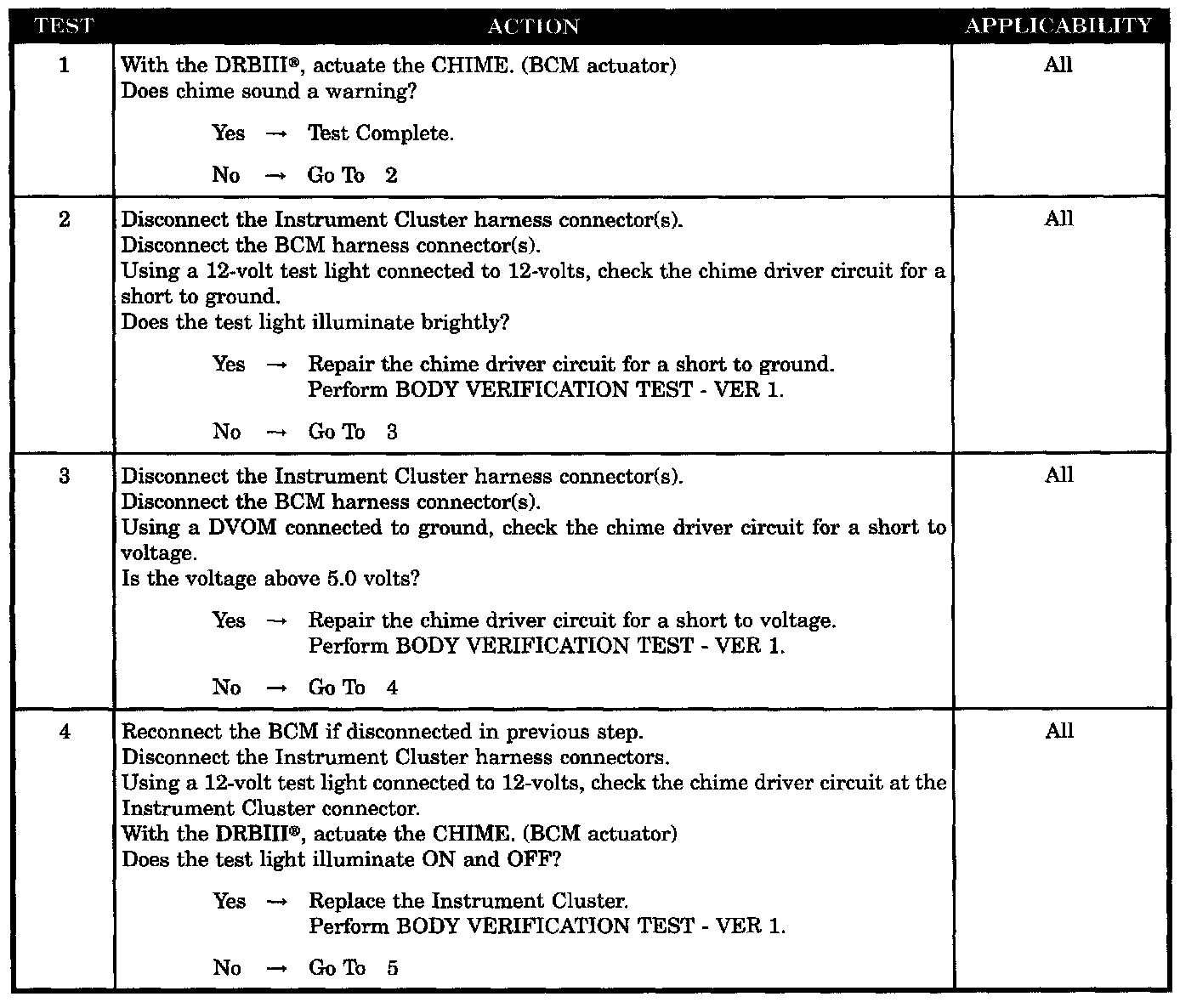

Tests 1 - 4:

Test 5:

SYMPTOM
CHIME INOPERATIVE

POSSIBLE CAUSES
- Chime driver circuit - open
- Chime driver circuit - short to ground
- Chime driver circuit - short to voltage
- Instrument cluster
- BCM
