Crankshaft Position Sensor: Service and Repair

REMOVAL

1. Disconnect the negative battery cable.
2. Raise vehicle and support.

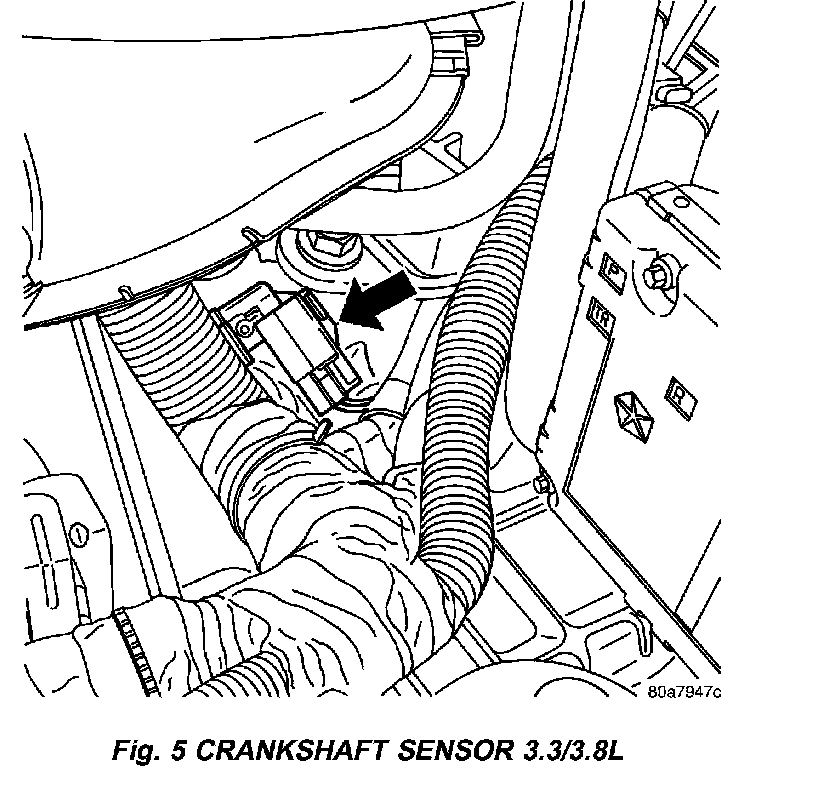

Fig. 5 Crankshaft Sensor 3.3/3.8L:

3. Disconnect the electrical connector.
4. Remove crankshaft sensor bolt.
5. Remove the crankshaft sensor.
