Verification Test

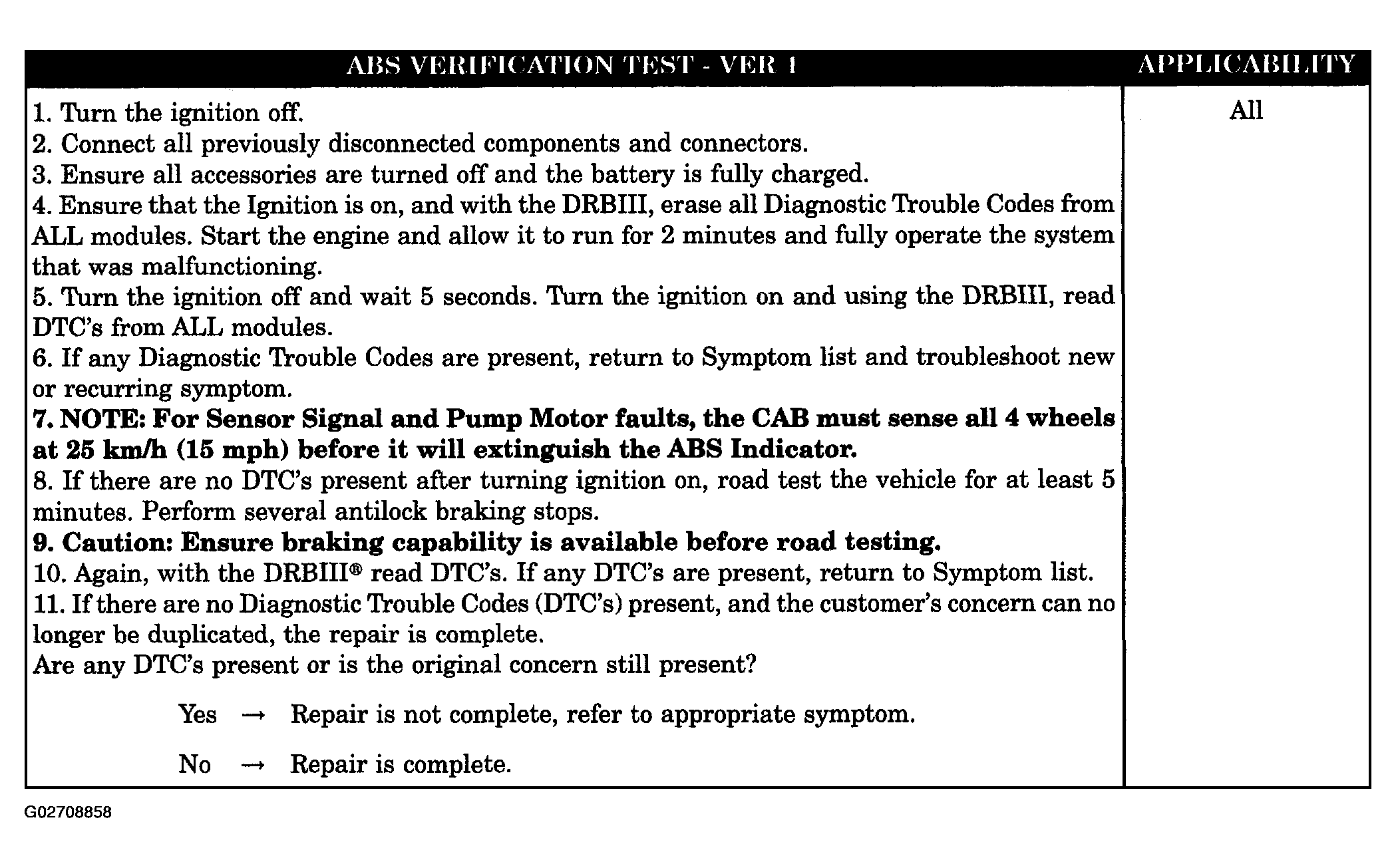

Fig 1: ABS Verification Test - VER 1
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
