Input Speed Sensor

42LE - Automatic Transmission
SPEED SENSOR - INPUT
REMOVAL

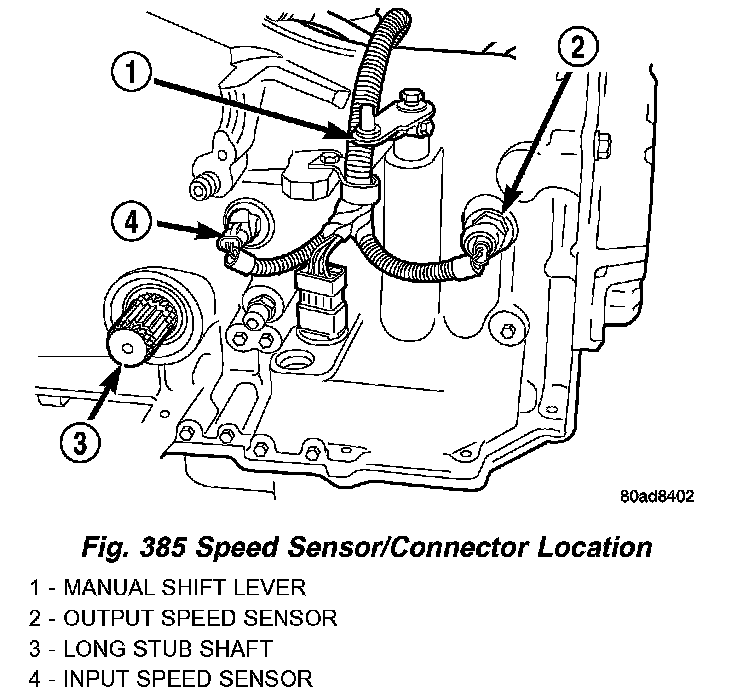

1. Disconnect the input speed sensor connector (Fig. 385).
2. Unscrew and remove the input speed sensor.






3. Inspect the speed sensor o-ring and replace if necessary (Fig. 386).



INSTALLATION
1. Verify o-ring is installed into position (Fig. 386)
2. Install and tighten input speed sensor to 27 Nm (20 ft. lbs.) torque.
3. Connect speed sensor connector (Fig. 385)
4. Connect battery negative cable.
