Pressure Thresholds

The EVIC will monitor the tire pressure signals from the four (or five) tire sensors and determine if any tire has gone below the low pressure threshold or raised above the high pressure threshold. Refer to Fig 1.

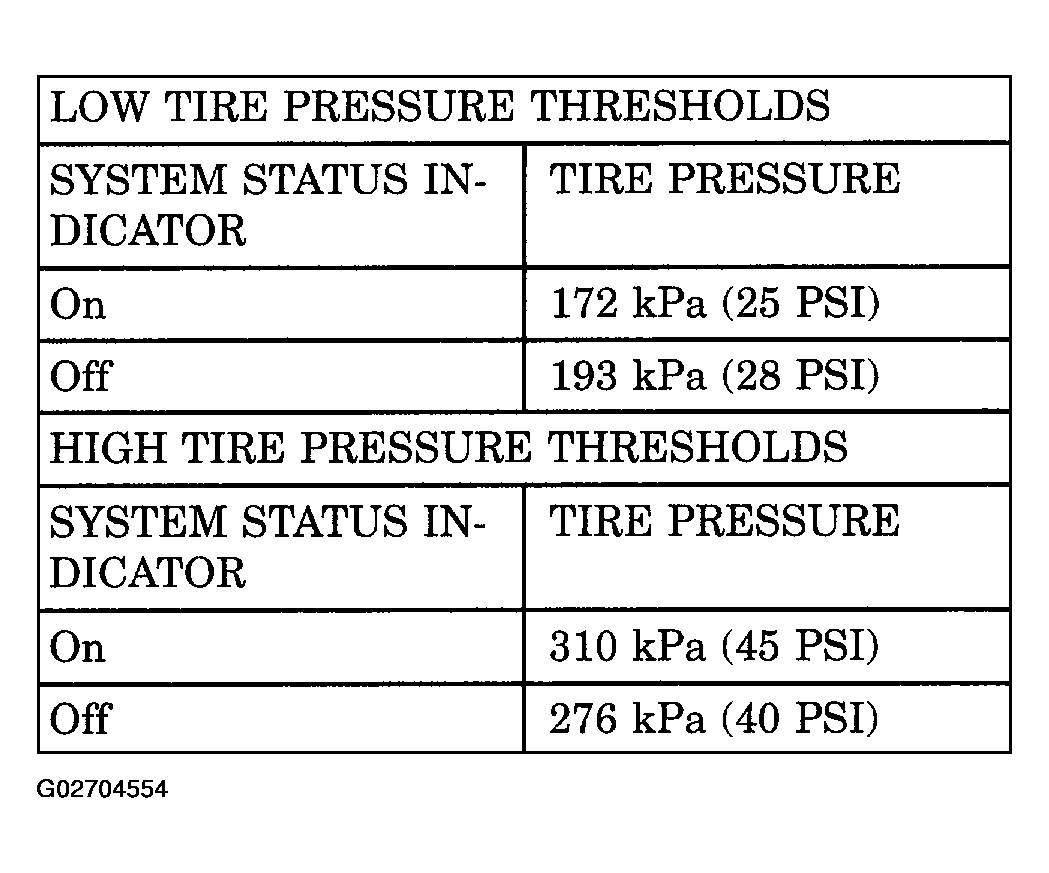

Fig 1: Pressure Thresholds Table

Courtesy of DAIMLERCHRYSLER CORP.
