Automatic Temperature Control Head Connector End View

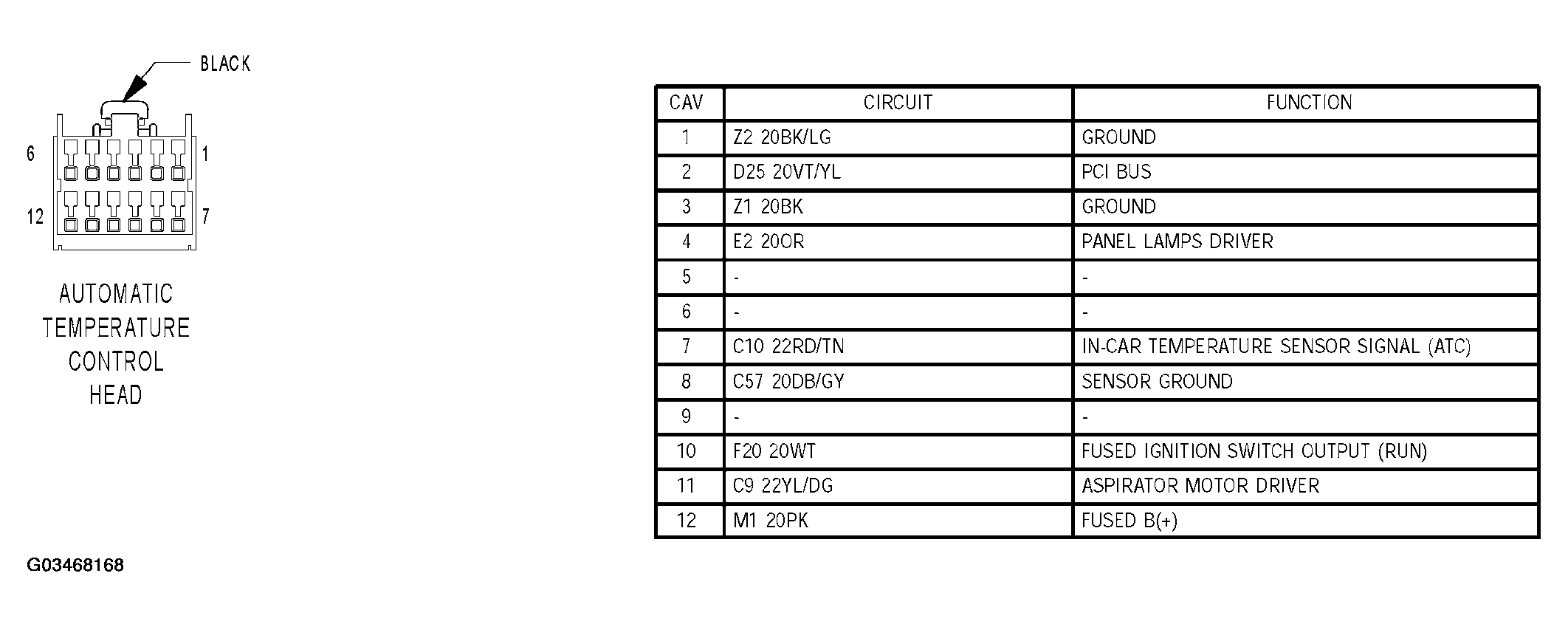

Fig 1: Automatic Temperature Control Head Connector End View
G03468168Courtesy of DAIMLERCHRYSLER CORP.
