Automatic Transmission Diagnostic Procedures
>>
Component Locations
>>
Pressure Port
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Pressure Port

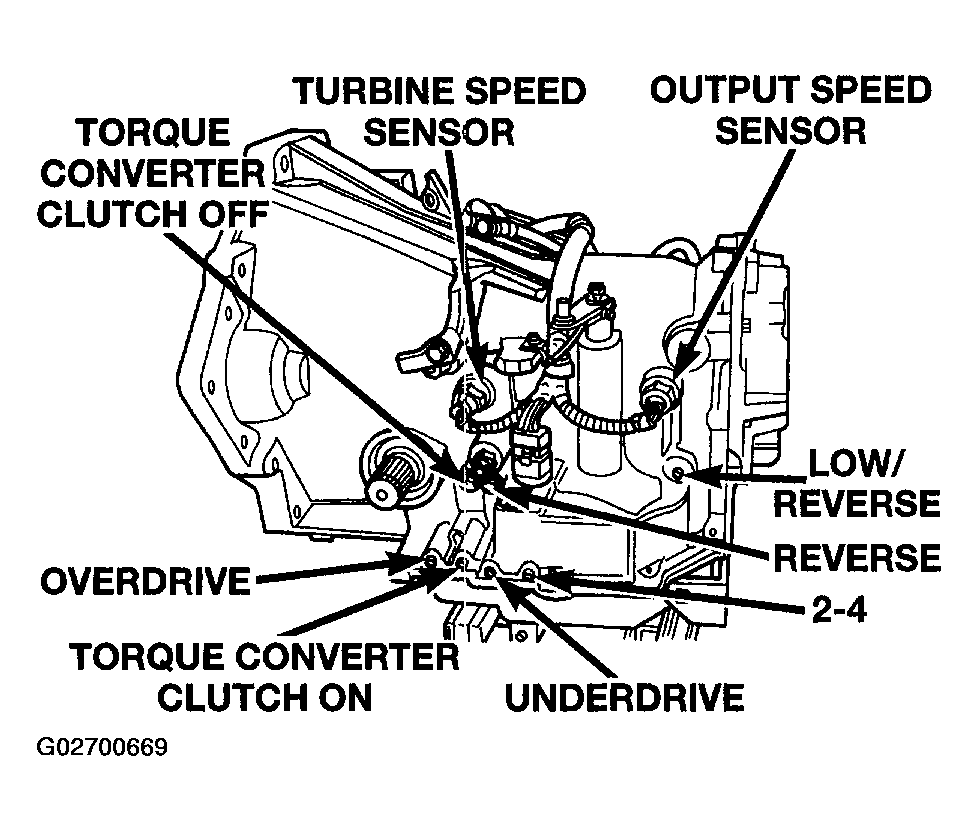

Fig 1: Locating Pressure Port
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
