Symptom: *COMPASS/TEMP MODULE DOES NOT CALIBRATE: Testing

Fig 1: Testing Compass/Temp Module Does Not Calibrate (1 Of 2)
G02696597Courtesy of DAIMLERCHRYSLER CORP.

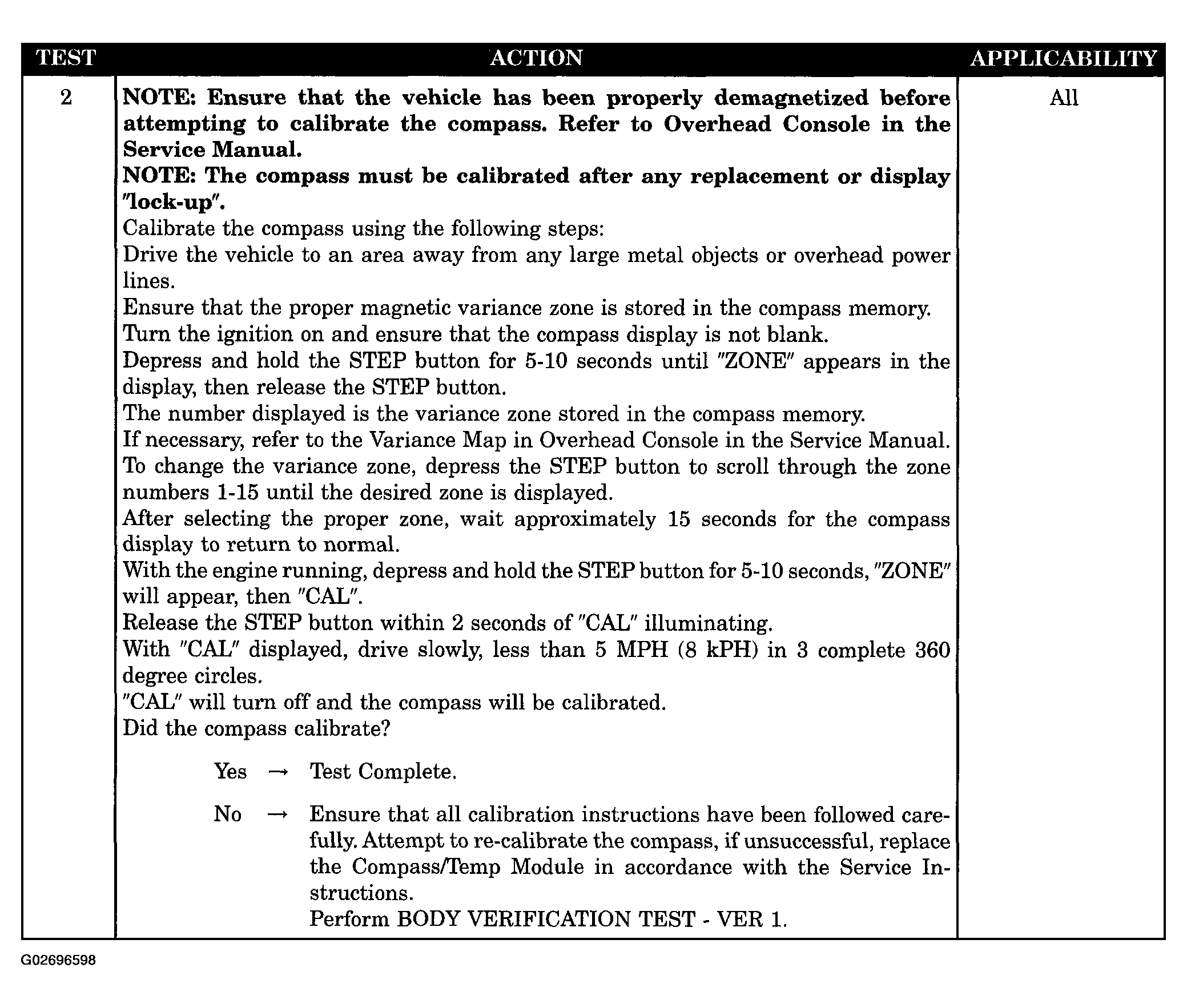

Fig 2: Testing Compass/Temp Module Does Not Calibrate (2 Of 2)
G02696598Courtesy of DAIMLERCHRYSLER CORP.
