Base System

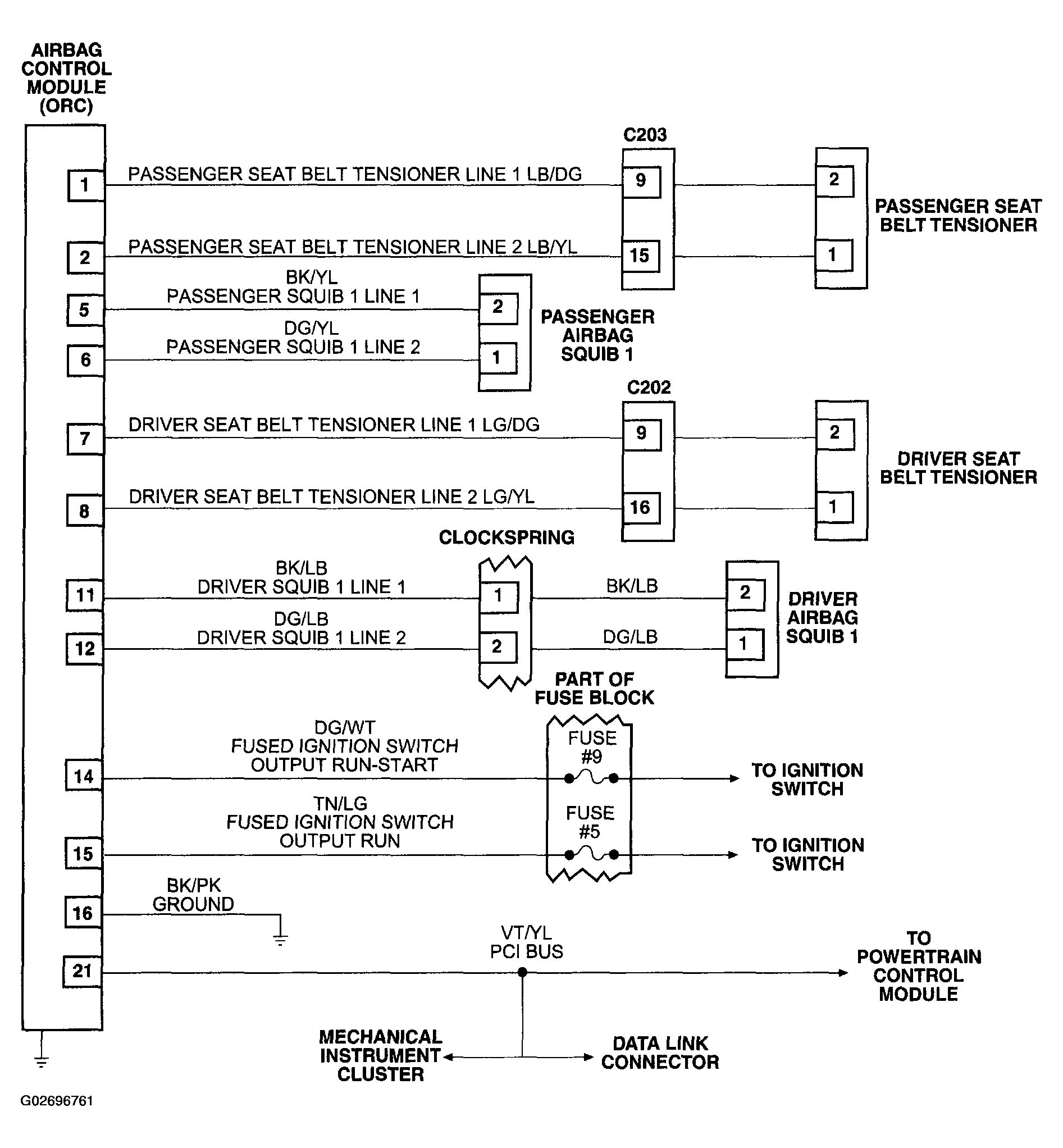

Fig 1: Schematic Diagram Base System
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
