Audio System

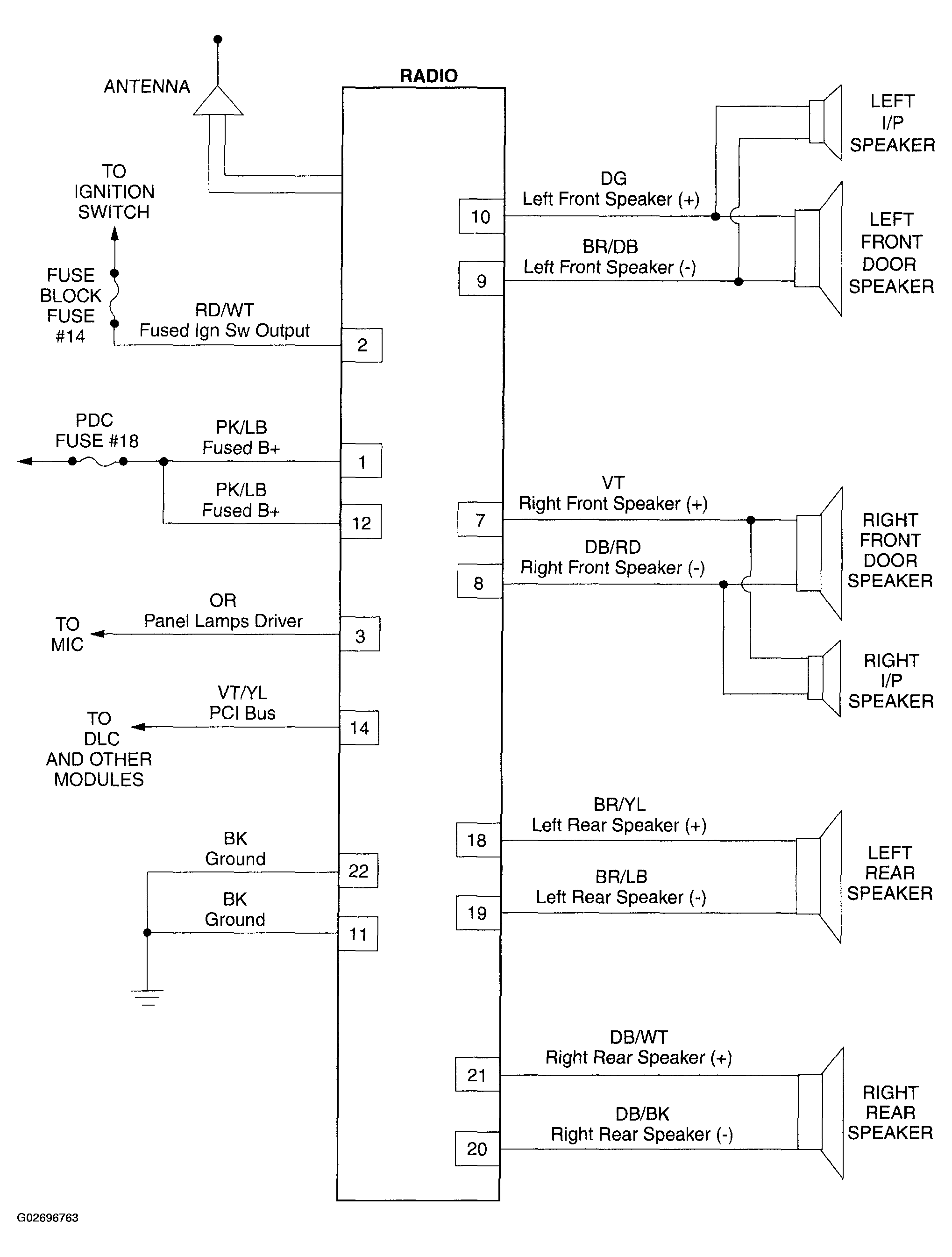

Fig 1: Schematic Diagram Audio System
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
