Intrusion Sensor - Export: Installation

  1. Connect electrical connector.
  2. Orient the dome lamp unit with intrusion sensor in a way that the tabs align with the slots in the headliner (Fig 1 ).

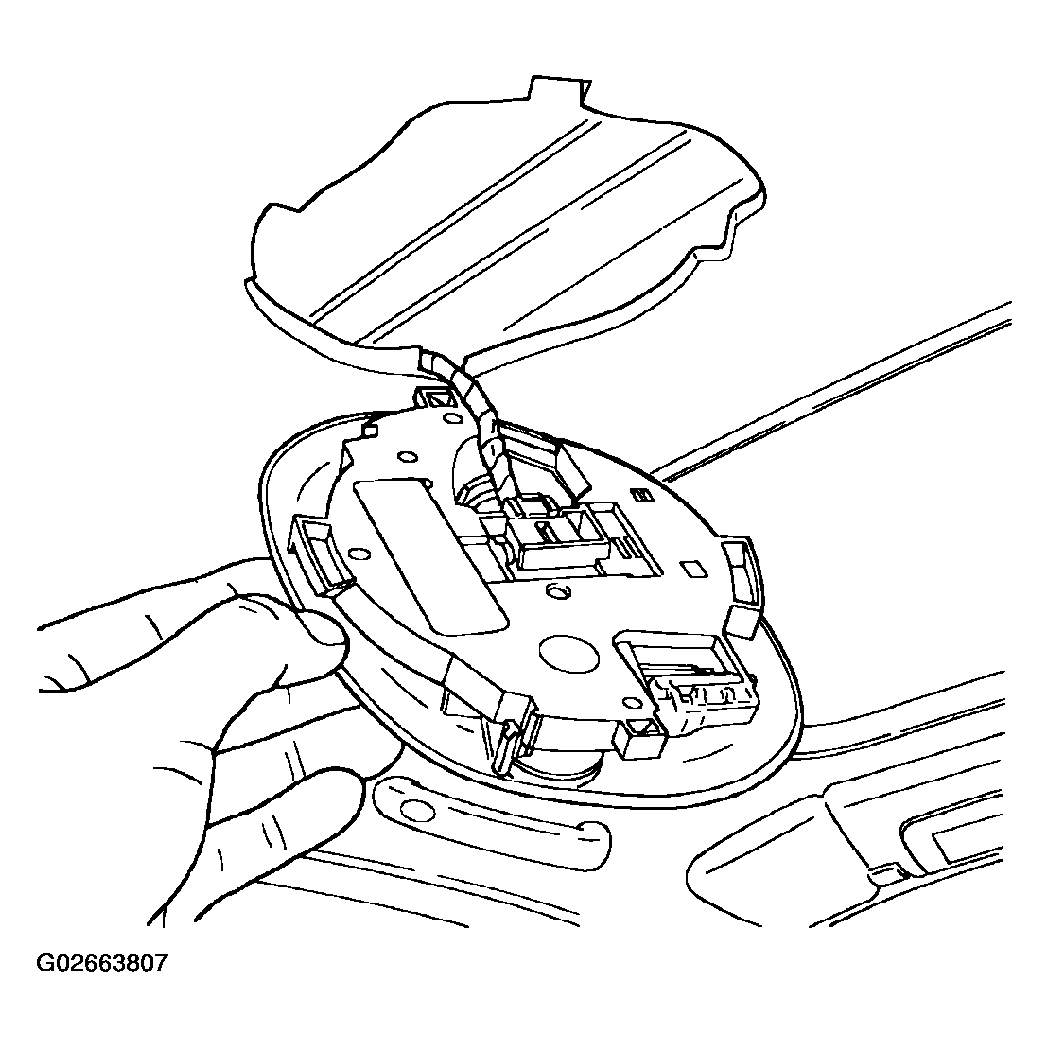

    Fig 1: Identifying Dome Lamp Unit With Intrusion Sensor Orientation To Headliner
    G02663807Courtesy of DAIMLERCHRYSLER CORP.
  3. Push the dome lamp unit with intrusion sensor straight up.
  4. Rotate the dome lamp unit with intrusion sensor clockwise.
  5. Connect the battery negative cable.
