Liftgate CHMSL Access Panel: Removal

  1. Using a trim stick (C-4755), disengage clips holding CHMSL cover trim to liftgate (Fig 1 ).

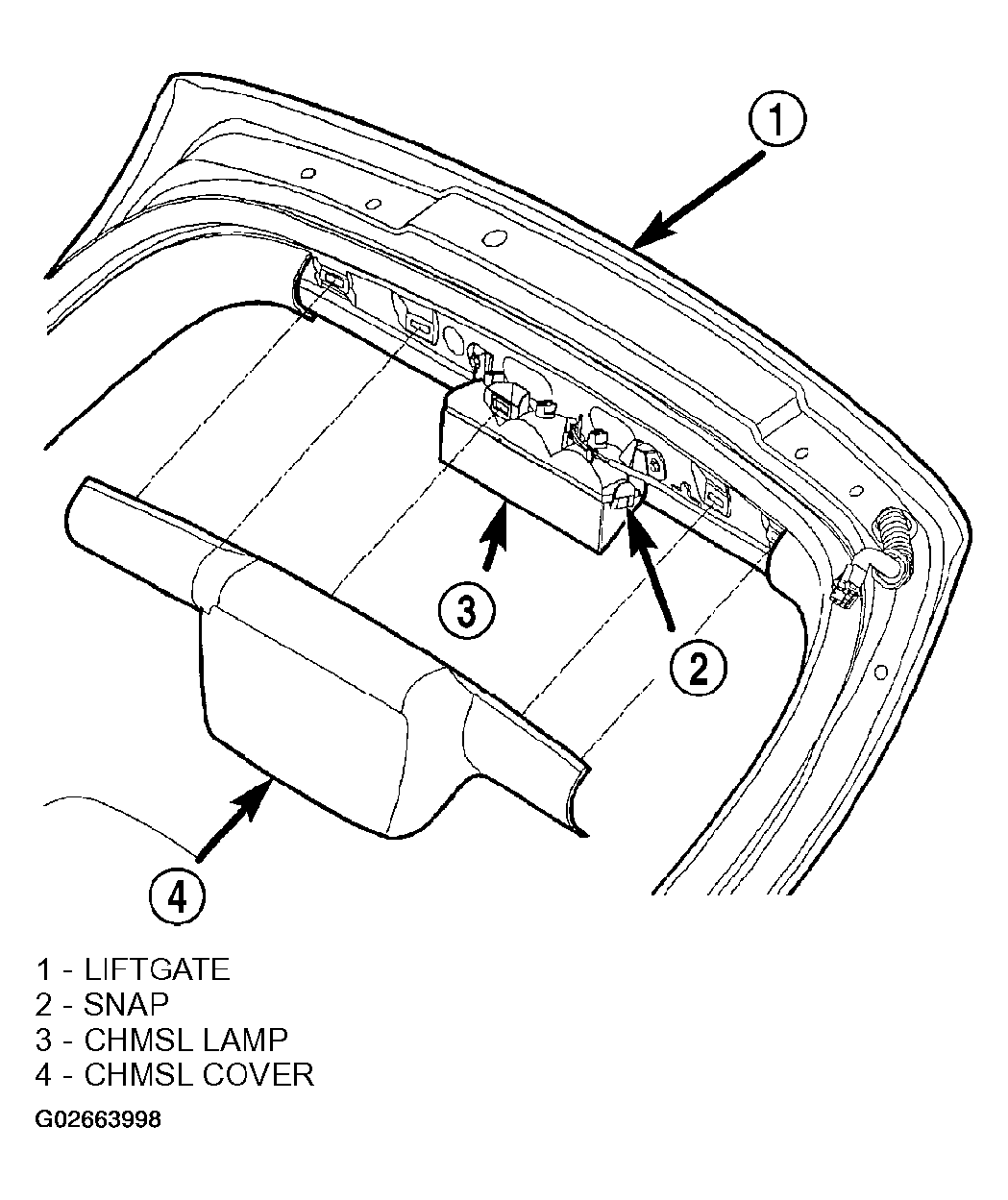

    Fig 1: Removing CHMSL Cover Trim
    G02663998Courtesy of DAIMLERCHRYSLER CORP.
  2. Remove CHMSL cover trim from vehicle.
