A/C Pressure Transducer Harness Connector End View (Turbo)

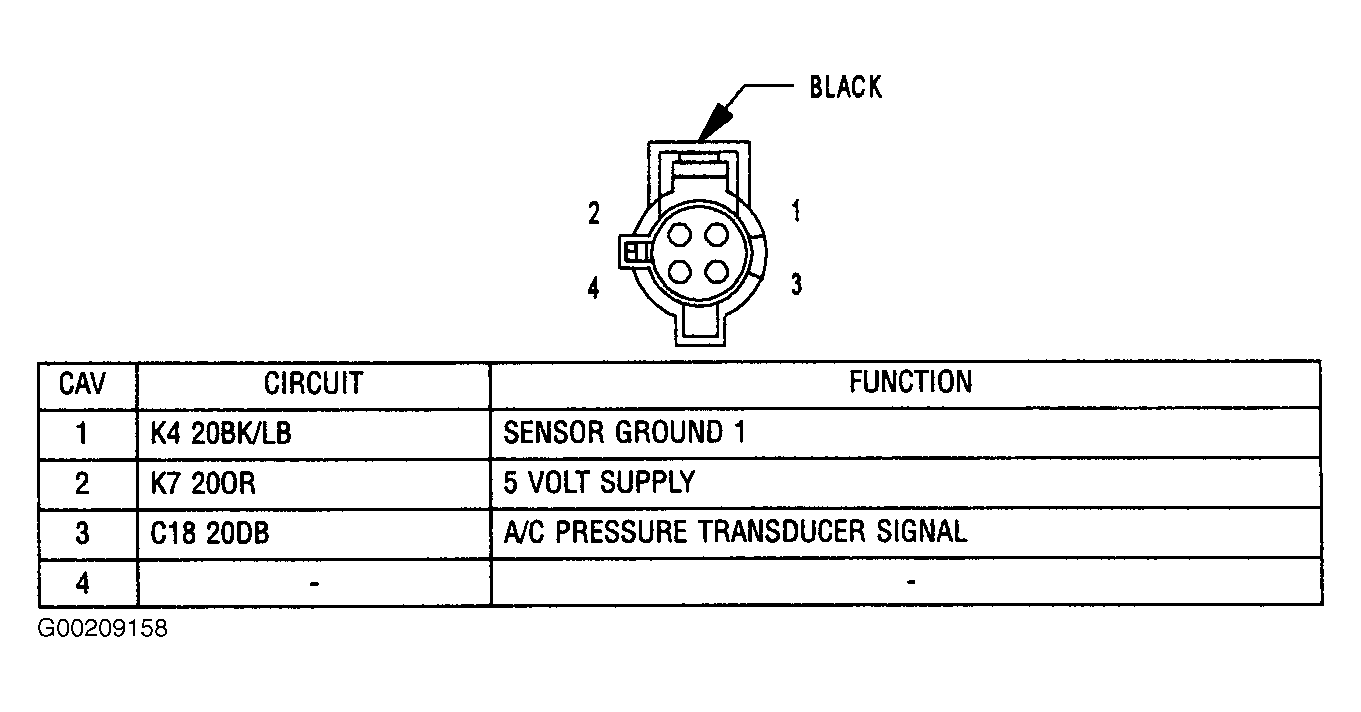

Fig 1: Identifying A/C Pressure Transducer Harness Connector Terminals (Turbo)
G00209158Courtesy of CHRYSLER CORP.
