Power Steering Pressure Switch
A power steering pressure switch is used on some versions of this vehicle to improved the vehicle's idle quality. The pressure switch improves vehicle quality by causing a readjustment of the engine idle speed as necessary when increased fluid pressure is sensed in the power steering system.

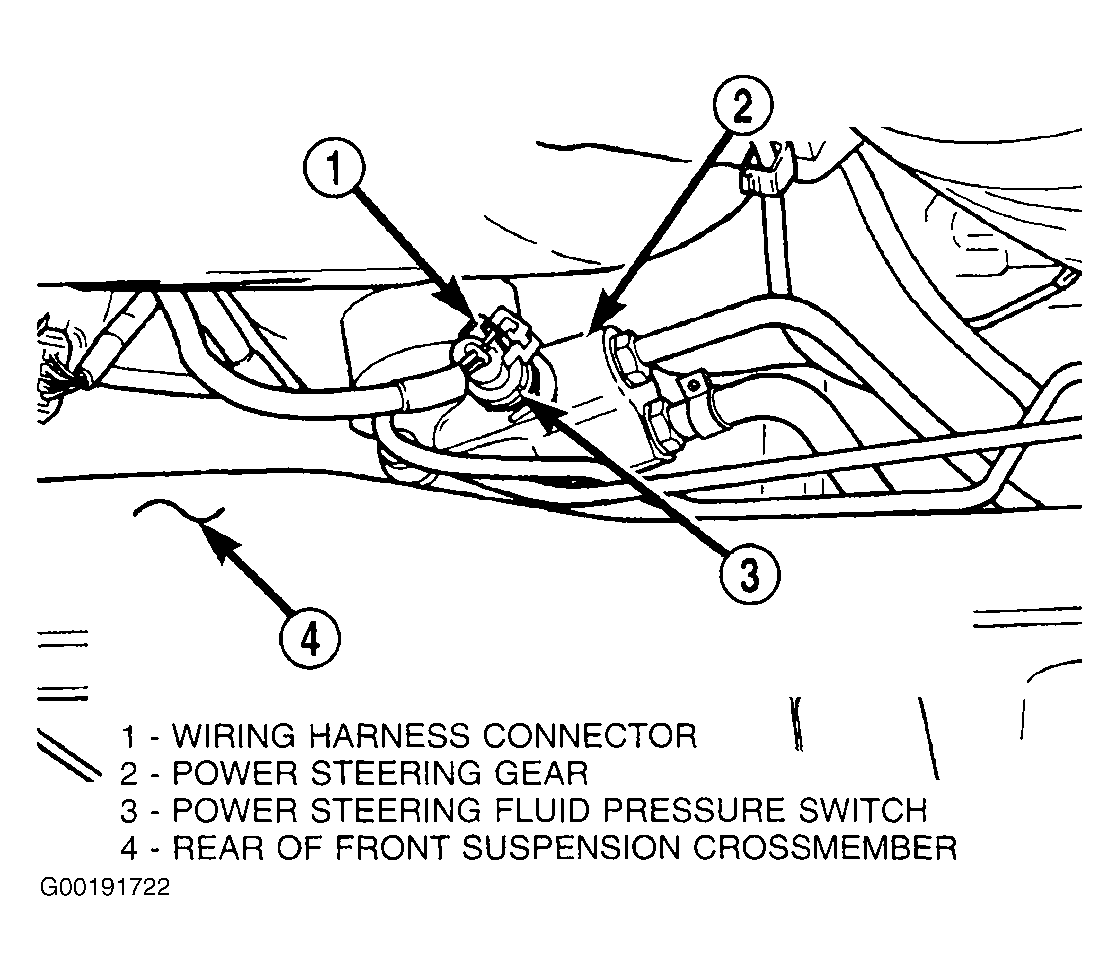

The pressure switch functions by signaling the Powertrain Control Module (PCM) that an increase in pressure of the power steering system is putting additional load on the engine. This type of condition exist when the front tires of the vehicle are turned while the vehicle is stationary and the engine is at an idle speed. When the PCM receives the signal from the power steering pressure switch, it directs the engine to increase it idle speed. This increase in engine idle speed compensates for the additional load, thus maintaining the required engine idle speed and idle quality. The power steering pressure switch is mounted directly on the power steering gear. See Fig 1 .
