Seat Belt Indicator Not Operating Properly

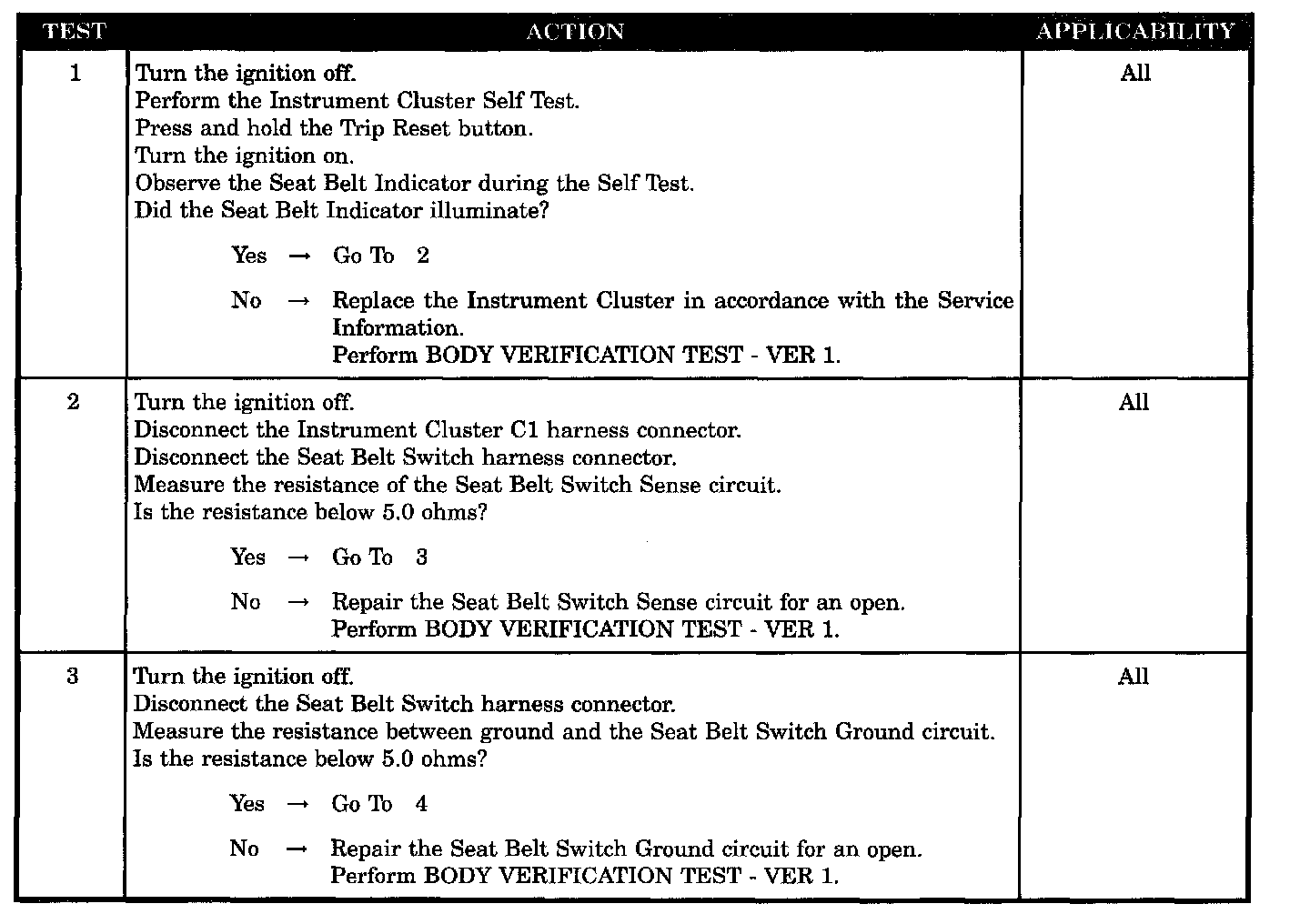

Test 1 - 3:

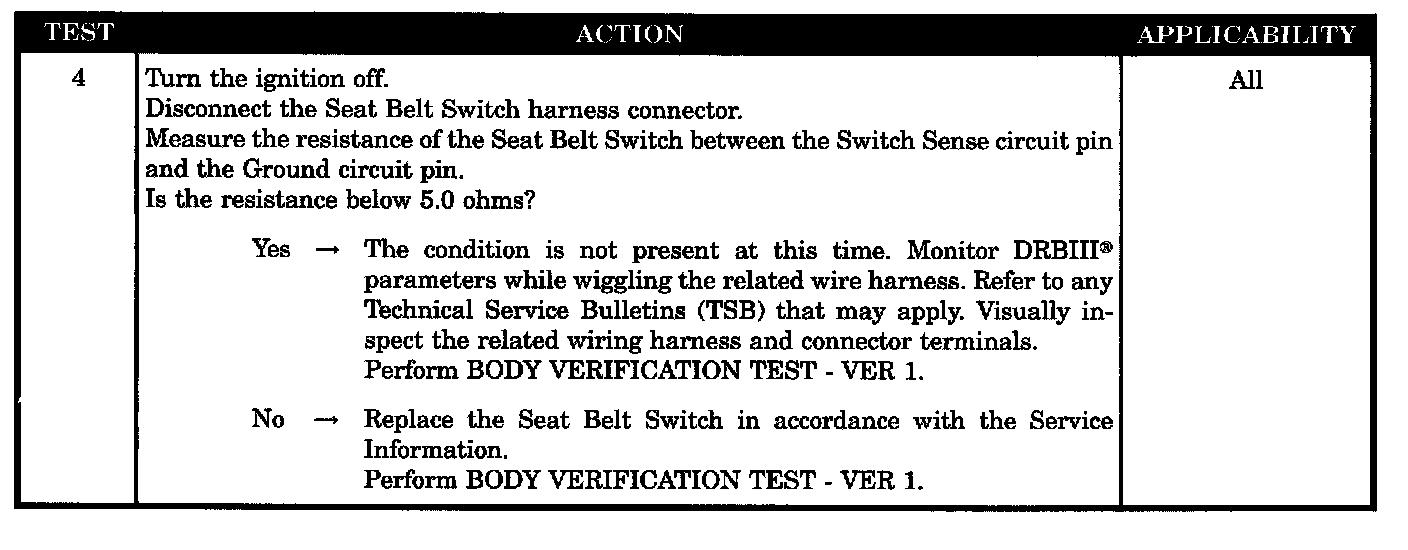

Test 4:






SYMPTOM
SEAT BELT INDICATOR NOT OPERATING PROPERLY

POSSIBLE CAUSES
- Intermittent condition
- Seat belt switch sense circuit open
- Seat belt switch ground open
- Seat belt switch
- Instrument cluster
