Intake Manifold Torque Specifications

Fig. 152:

LOWER INTAKE MANIFOLD
Tighten fasteners to 28 Nm (250 in. lbs.) in sequence shown in (Fig. 152).

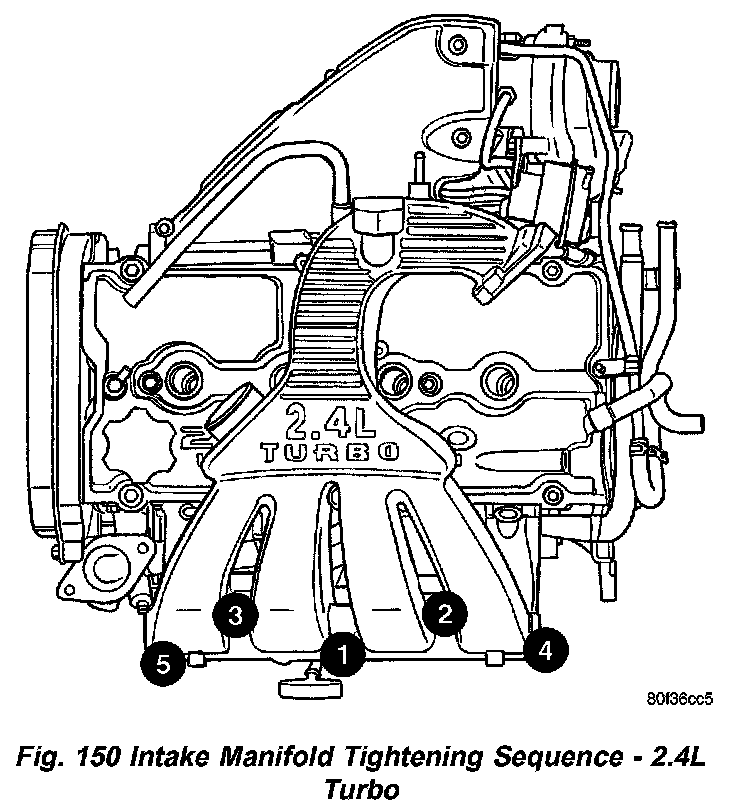

Fig. 150:

UPPER INTAKE MANIFOLD
Tighten upper intake manifold fasteners to 28 Nm (250 in. lbs.) in sequence shown in (Fig. 150).
