Front Fog Lamp Indicator Inoperative

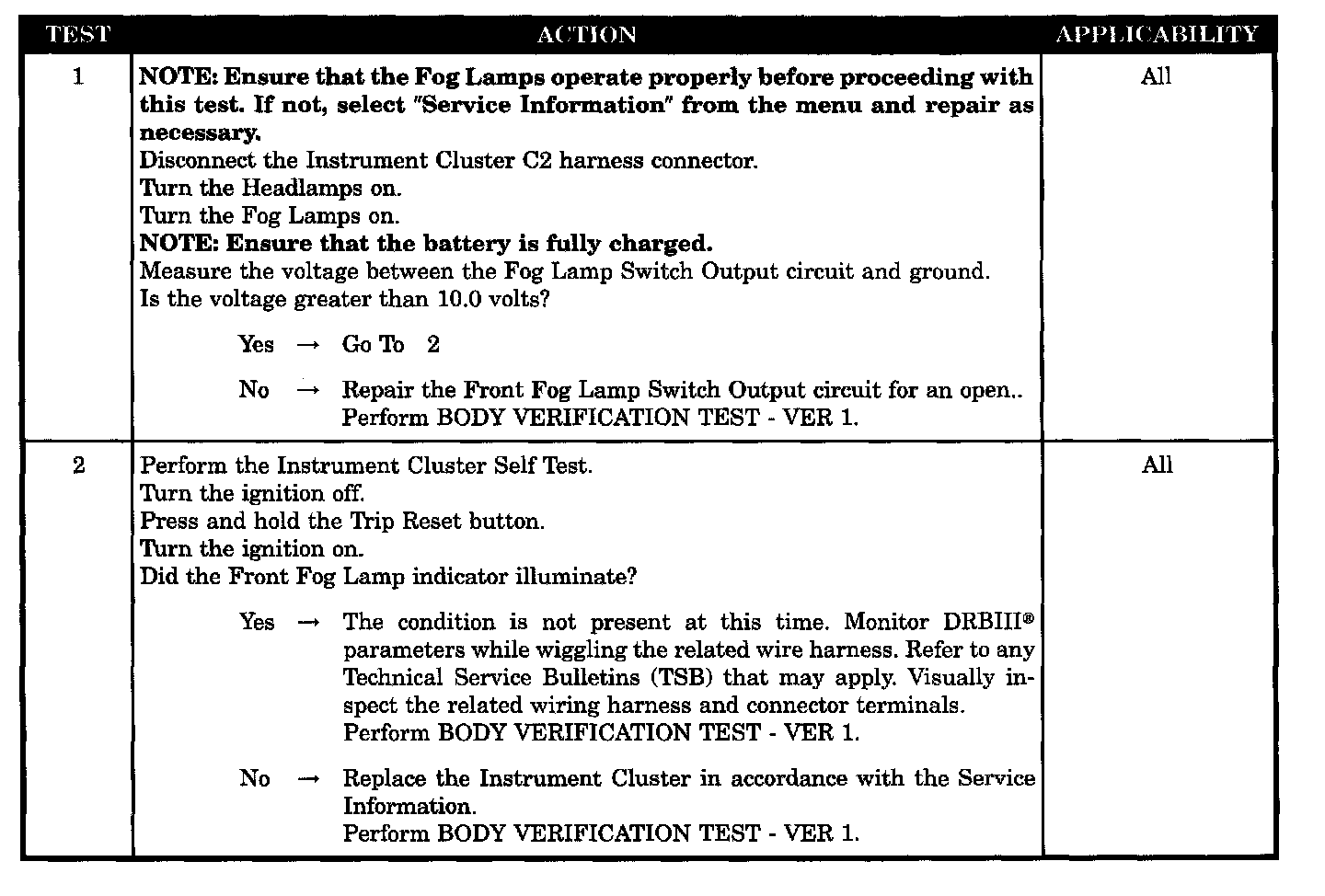

Test 1 - 2:






SYMPTOM
FRONT FOG LAMP INDICATOR INOPERATIVE

POSSIBLE CAUSES
- Intermittent condition
- Front fog lamp indicator circuit open
- Instrument cluster
