Intrusion Sensor Fails to Trip VTSS

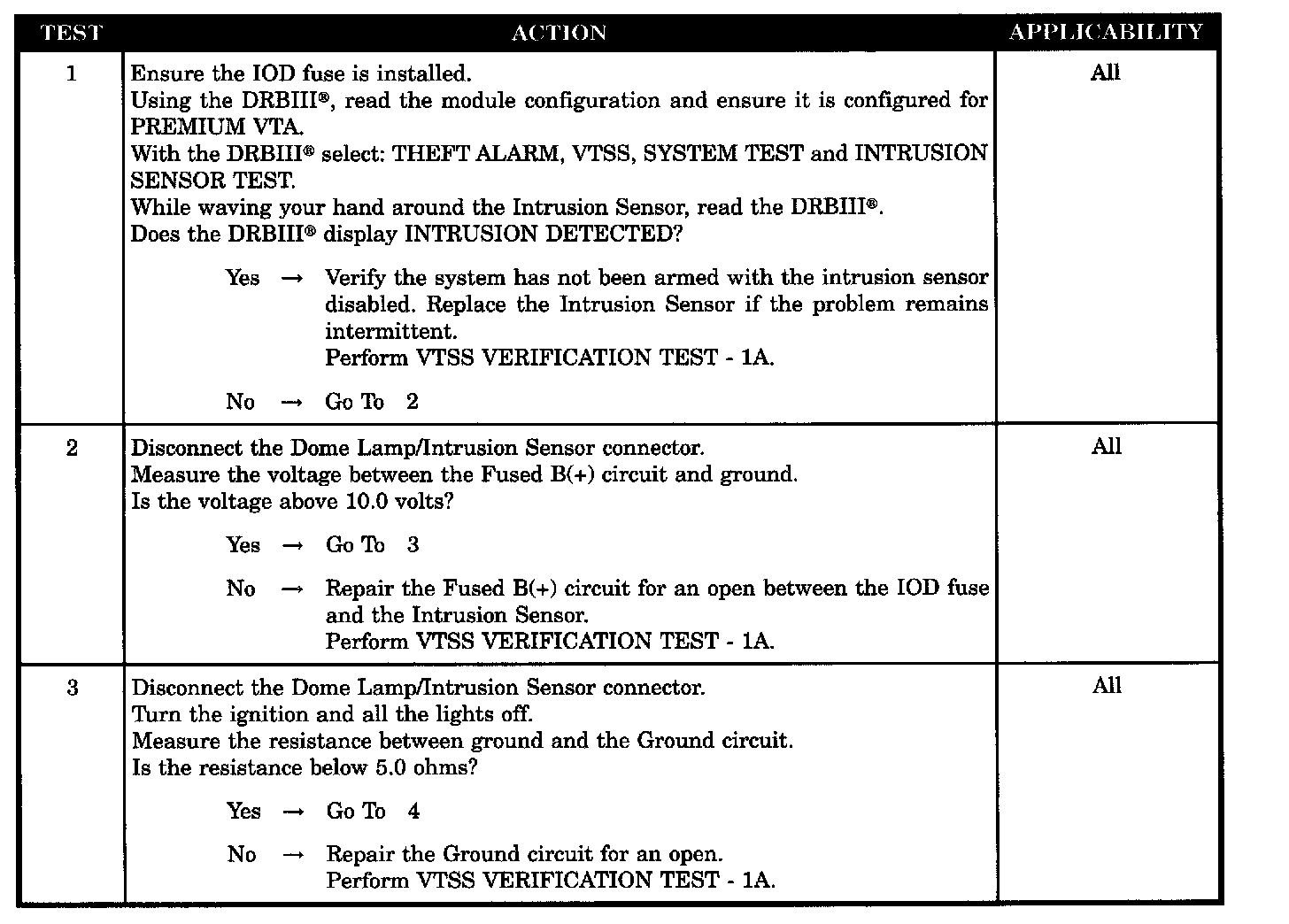

Test 1 - 3:

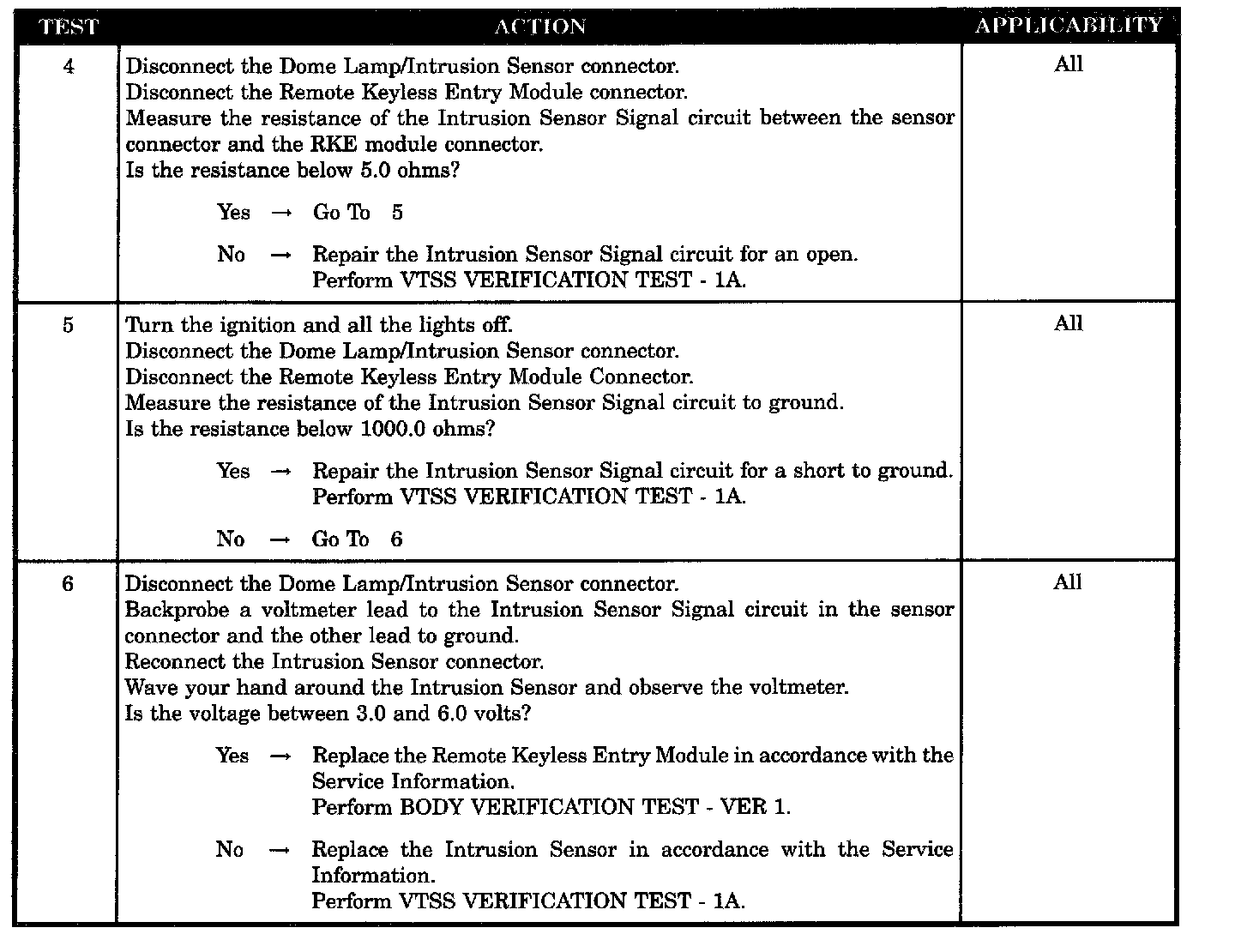

Test 4 - 6:






SYMPTOM
INTRUSION SENSOR FAILS TO TRIP VTSS (EXPORT ONLY)

POSSIBLE CAUSES
- Intrusion sensor
- Open fused B(+) circuit
- Open ground circuit
- Intrusion sensor signal circuit open
- Intrusion sensor signal circuit shorted to ground
- Intrusion sensor
- Remote keyless entry module
