Open Liftgate Fails to Trip Alarm

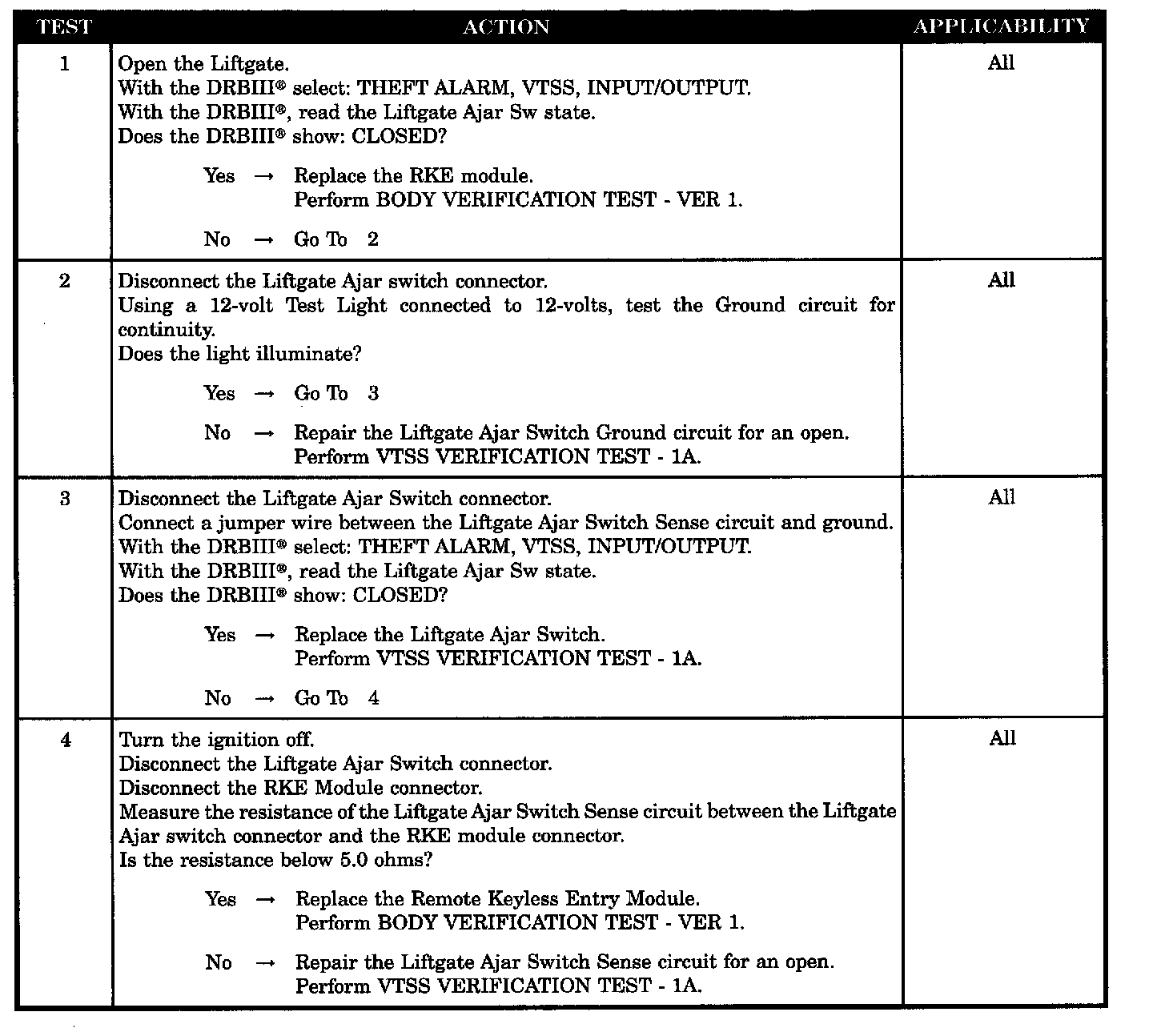

Test 1 - 4:






SYMPTOM
OPEN LIFTGATE FAILS TO TRIP ALARM

POSSIBLE CAUSES
- Liftgate ajar switch
- Liftgate ajar switch ground circuit open
- Liftgate ajar switch status
- Liftgate ajar switch sense circuit open
- Remote keyless entry module
