VTSS Indicator Fails to Flash

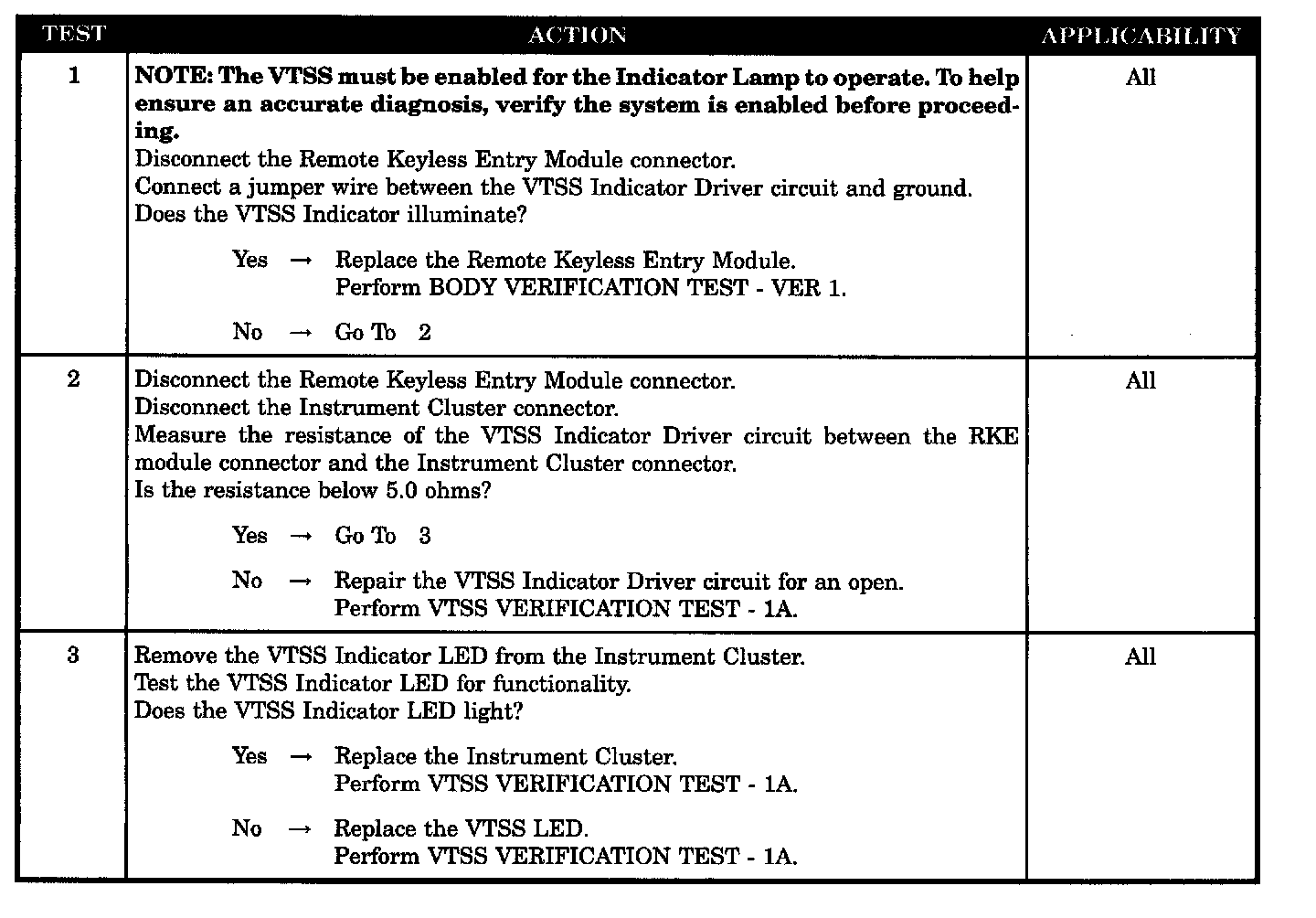

Test 1 - 3:






SYMPTOM
VTSS INDICATOR FAILS TO FLASH

POSSIBLE CAUSES
- Remote keyless entry module
- Instrument cluster
- VTSS indicator driver circuit open
- VTSS led open
