Identifying Engine Control Module C2 (Diesel) - Black 40 Way Connector End View

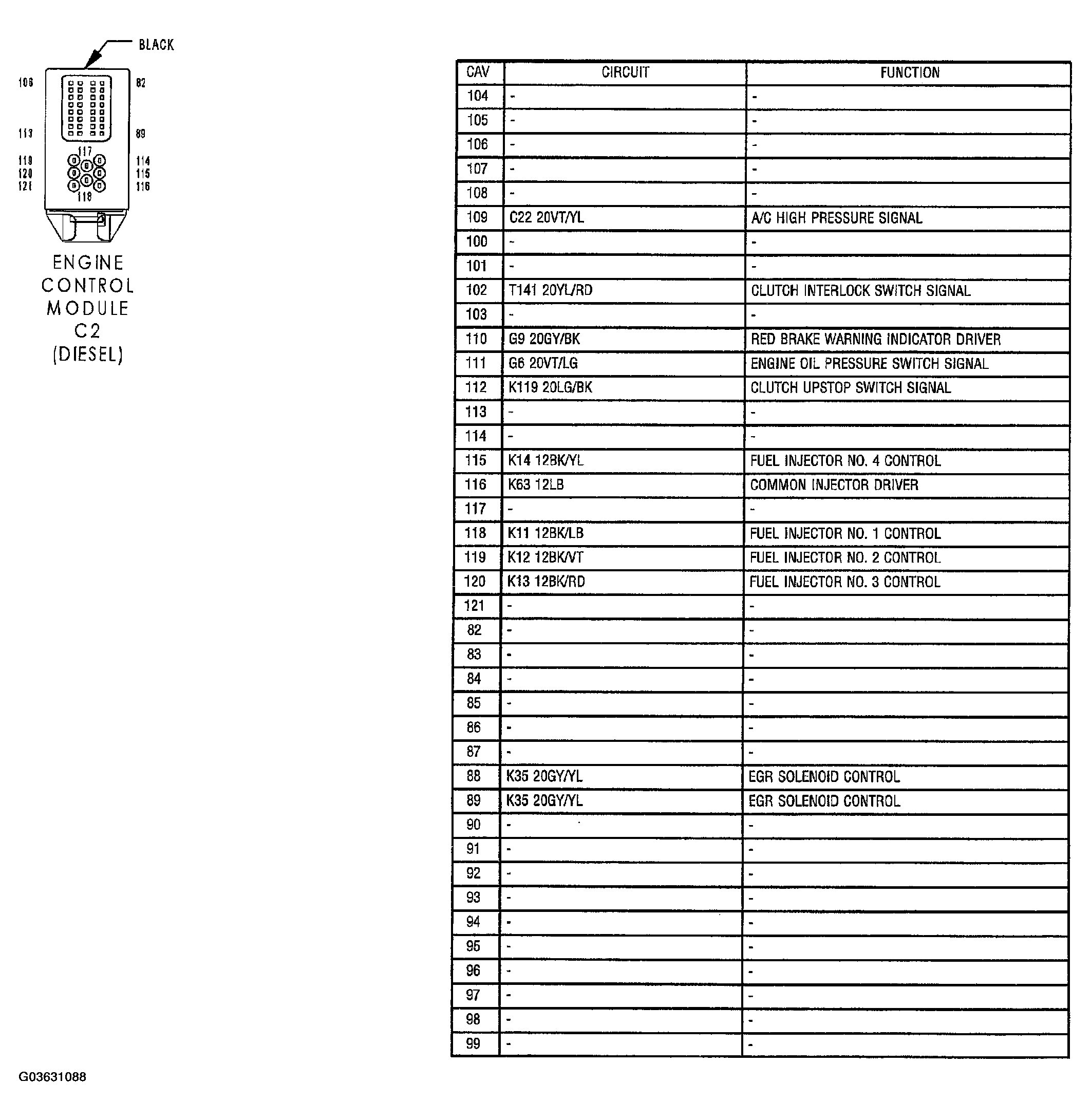

Fig 1: Identifying Engine Control Module C2 (Diesel) - Black 40 Way Connector End View
G03631088Courtesy of DAIMLERCHRYSLER CORP.
