Liftgate Latch: Installation

  1. Place latch in position on vehicle.

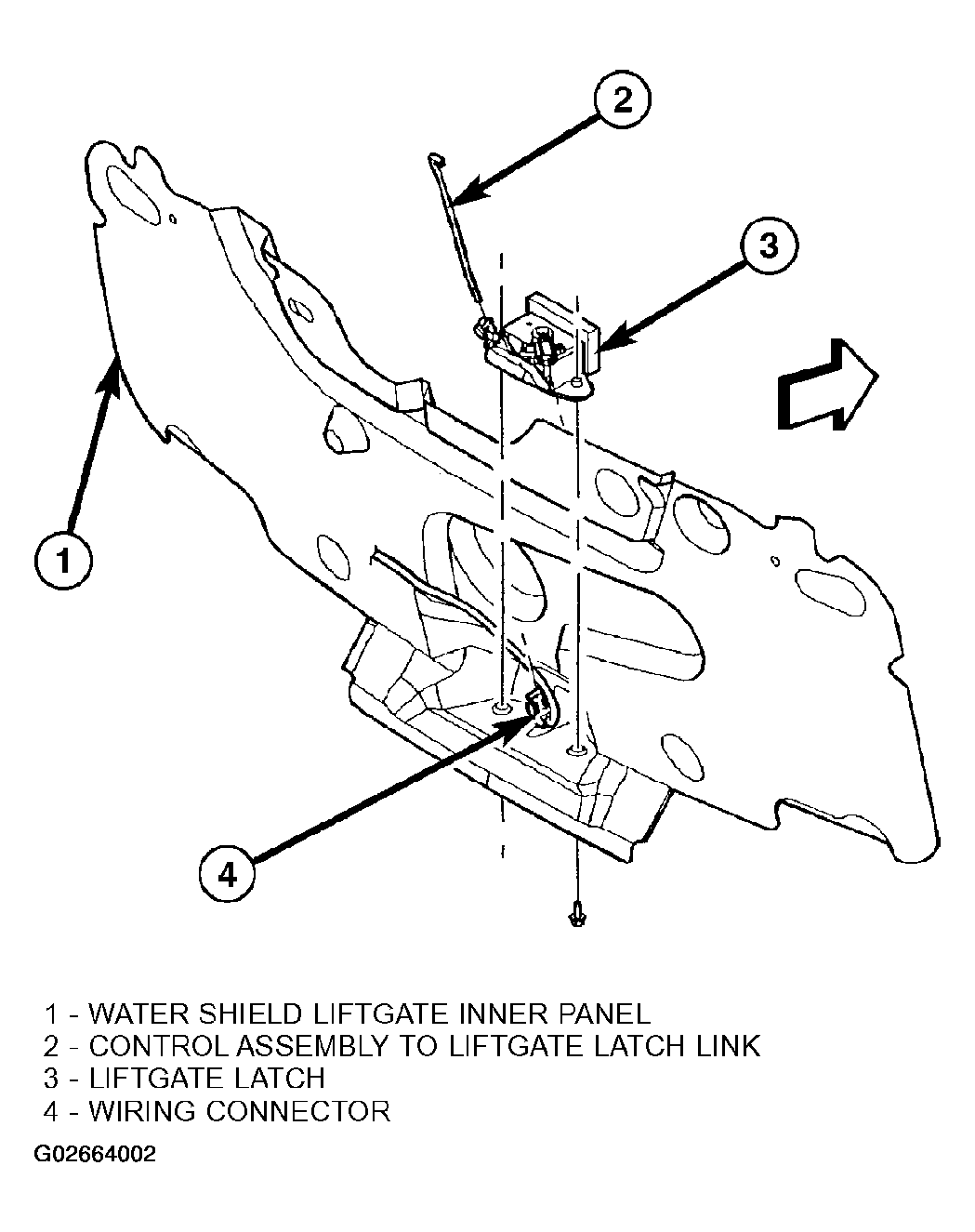

  2. Install screws attaching latch to liftgate. Tighten to 16 N.m (12 ft. lbs.) torque (Figure ).
  3. Pull downward on outside handle link and engage link to clip on latch.
  4. Connect wire connector to liftgate ajar switch.
  5. Verify liftgate fit and operation. Adjust as necessary.
  6. Install liftgate trim panel.
