High Beam Headlamps Will Not Turn Off

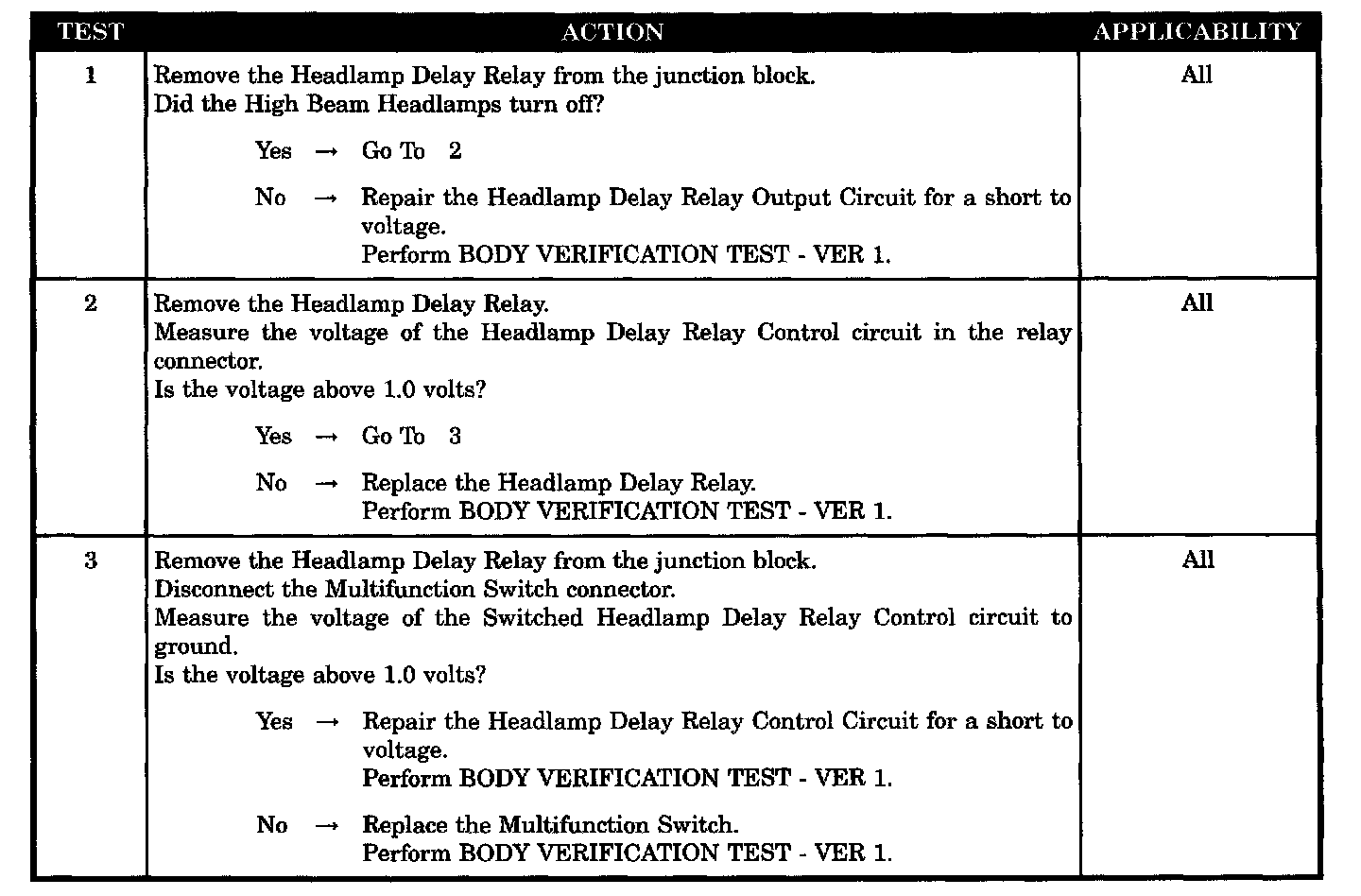

Test 1 - 3:






SYMPTOM
HI BEAM HEADLAMPS WILL NOT TURN OFF

POSSIBLE CAUSES
- Headlamp delay relay output circuit short to voltage
- Headlamp delay relay
- Headlamp delay relay control circuit short to voltage
- Multifunction switch
