Seat Belt Indicator Always On

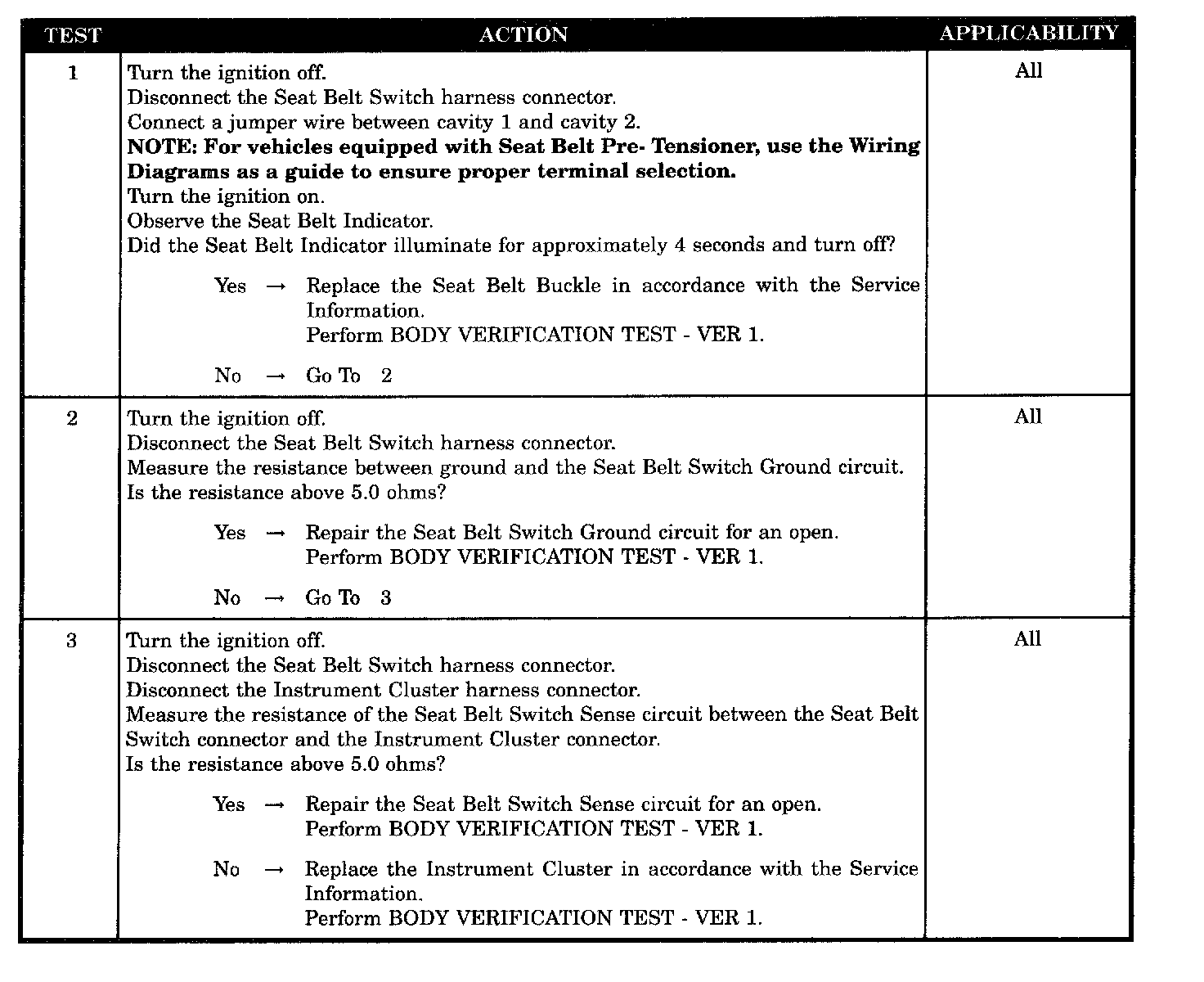

Test 1 - 3:






SYMPTOM
SEAT BELT INDICATOR ALWAYS ON

POSSIBLE CAUSES
- Seat belt switch
- Seat belt switch ground circuit open
- Seat belt switch sense circuit open
- Instrument cluster
