Seat Belt Indicator Inoperative

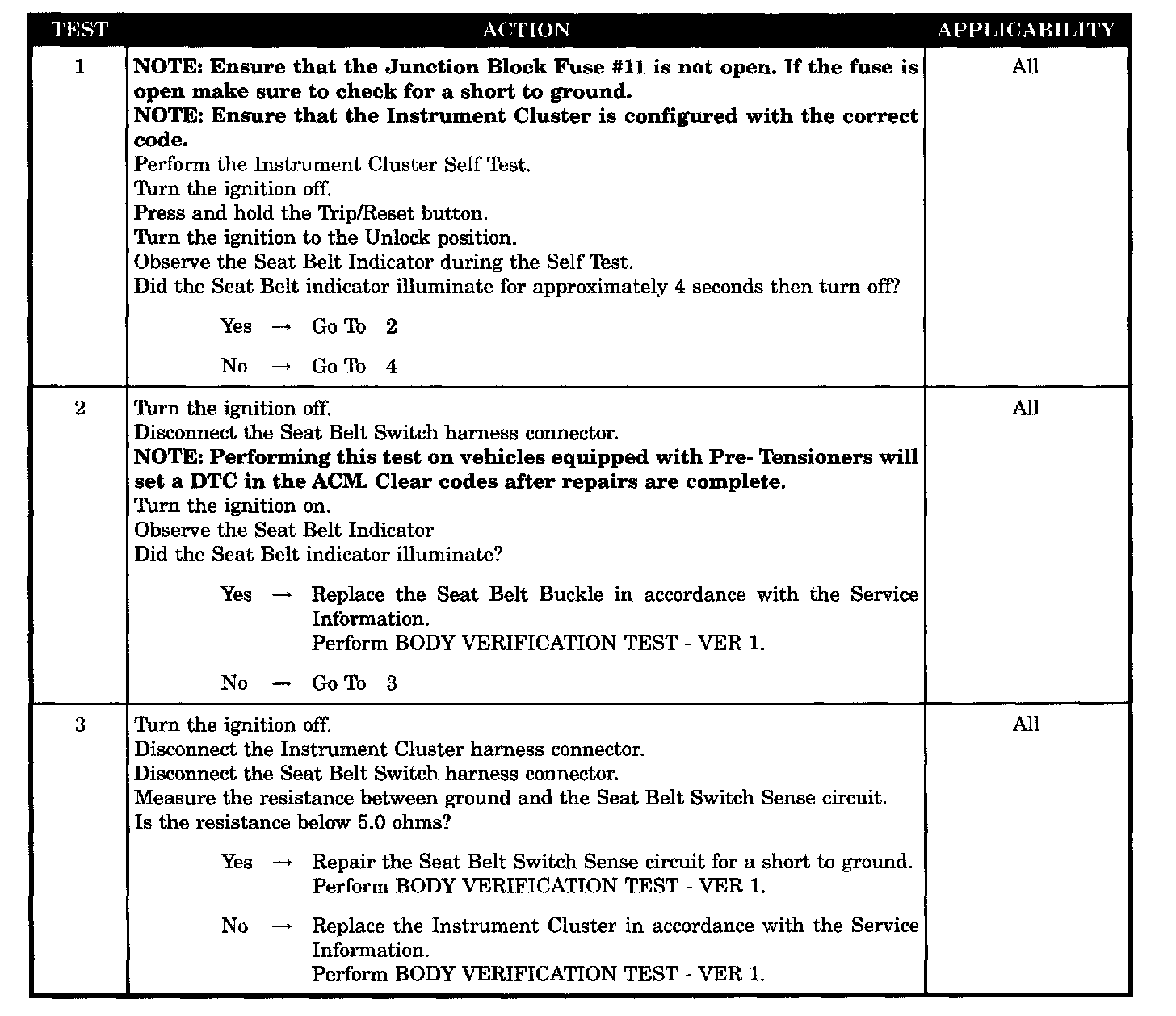

Test 1 - 3:




Test 4:






SYMPTOM
SEAT BELT INDICATOR INOPERATIVE

POSSIBLE CAUSES
- Seat belt switch
- Seat belt switch sense circuit short to ground
- Seat belt indicator led
- Instrument cluster
