Fuse Block

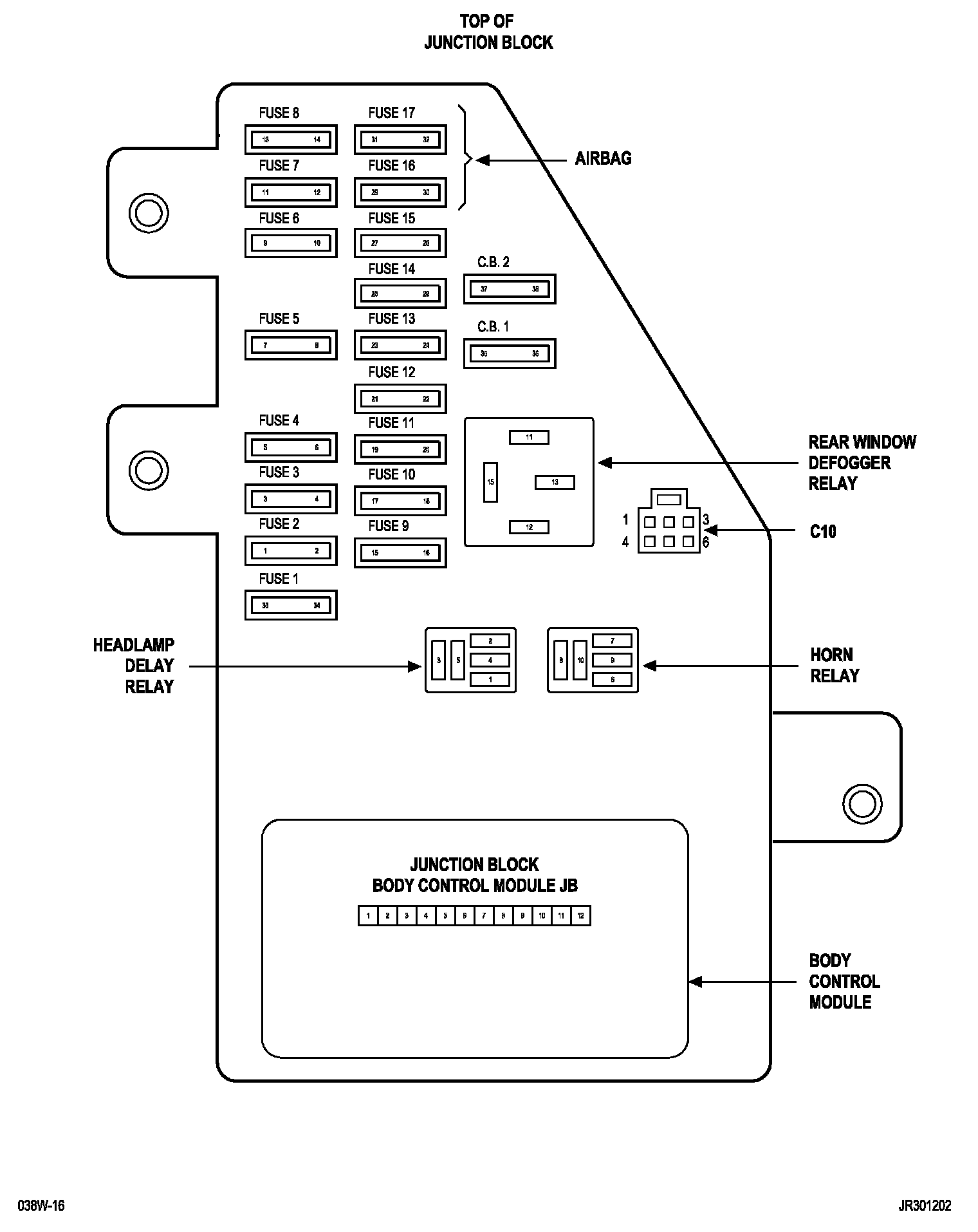

8w-12-2 Junction Block (Top):

8w-12-3 Junction Block (Bottom):

8w-12-5:

8w-12-6:

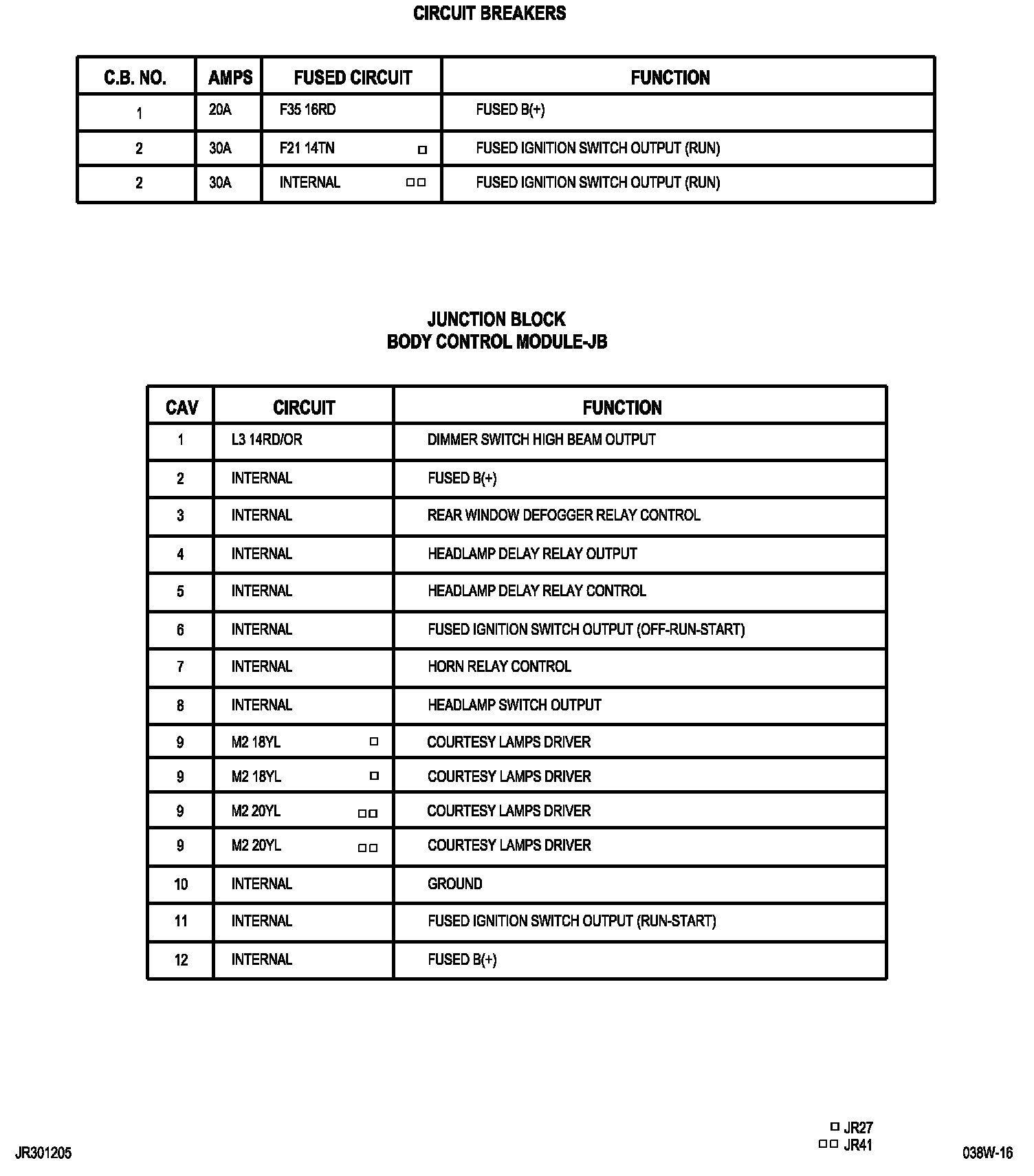

Junction Body Control Module JB:

Junction Block C1:

Junction Block C2:

Junction Block C3:

Junction Block C4:

Junction Block C5:

Junction Block C6:

Junction Block C7:

Junction Block C8:

Junction Block C9:

Junction Block C10:

Junction Block C11 (Export):
