Crankshaft Position Sensor: Service and Repair

REMOVAL
1. Disconnect the negative battery cable.
2. Remove the air cleaner box.

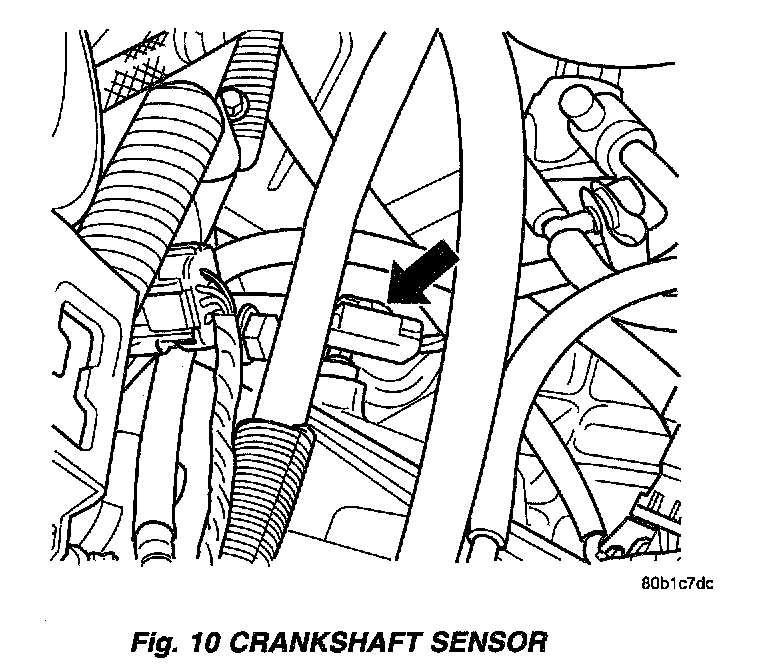

Fig. 10 Crankshaft Sensor:

3. Disconnect the electrical connector from Crankshaft position sensor.
4. Remove bolt.
5. Remove sensor.

INSTALLATION
1. Install crankshaft sensor.
2. Tighten bolt.
3. Install air cleaner box.
4. Connect the negative battery cable.
