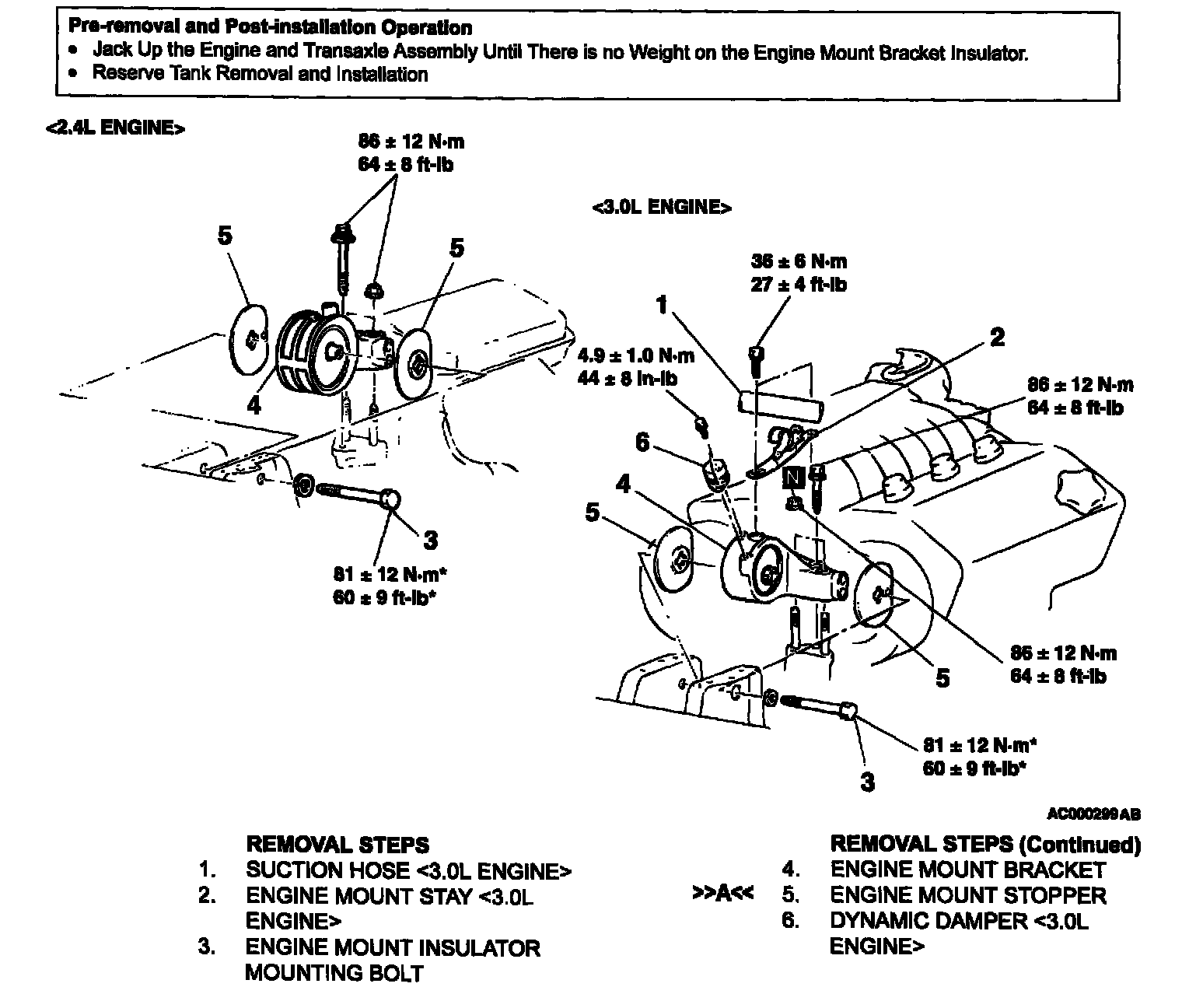

Engine Mounting
ENGINE MOUNTING
<2.4L ENGINE>
CAUTION: Mounting locations marked by * should be provisionally tightened, and then fully tightened after placing the vehicle horizontally and loading the full weight of the engine on the vehicle body.
<2.4L ENGINE>
CAUTION: Mounting locations marked by * should be provisionally tightened, and then fully tightened after placing the vehicle horizontally and loading the full weight of the engine on the vehicle body.
