Oxygen Sensor: Service and Repair

REMOVAL AND INSTALLATION

Removal And Installation:

Required Special
- MD998770: Oxygen Sensor Wrench

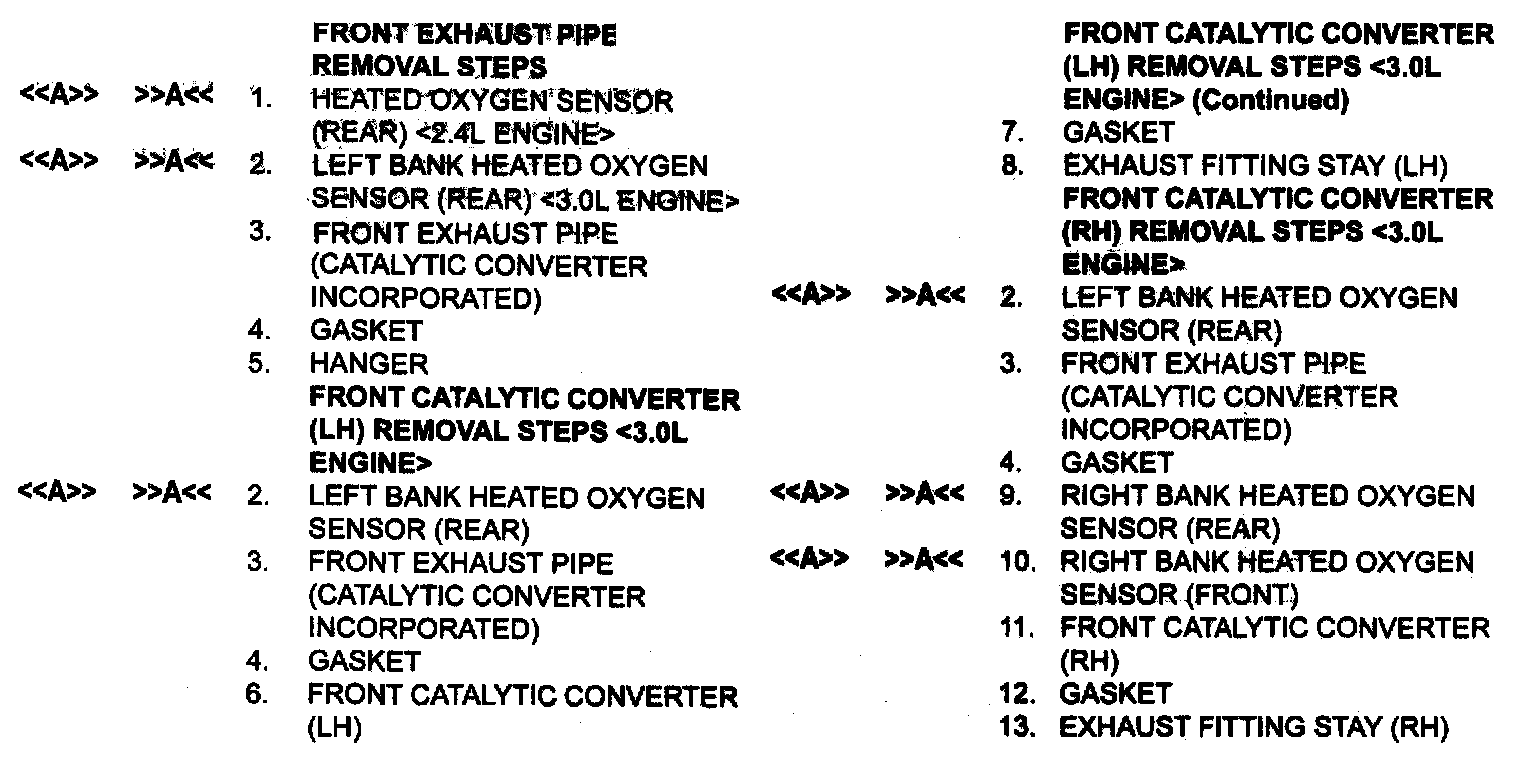

REMOVAL SERVICE POINT





<> HEATED OXYGEN SENSOR (REAR)/LEFT BANK HEATED OXYGEN SENSOR (REAR/RIGHT BANK HEATED OXYGEN SENSOR (REAR/RIGHT BANK HEATED OXYGEN SENSOR (FRONT) REMOVAL

Use special tool MD998770 to remove the oxygen sensor.

INSTALLATION SERVICE POINT





>>A<< RIGHT BANK HEATED OXYGEN SENSOR (FRONT)/RIGHT BANK HEATED OXYGEN SENSOR (REAR)/LEFT BANK HEATED OXYGEN SENSOR (REAR)/HEATED OXYGEN SENSOR (REAR) INSTALLATION

Use special tool MD998770 to installation the oxygen sensor.
