Mode 6 Reference Table (Emission Control System)

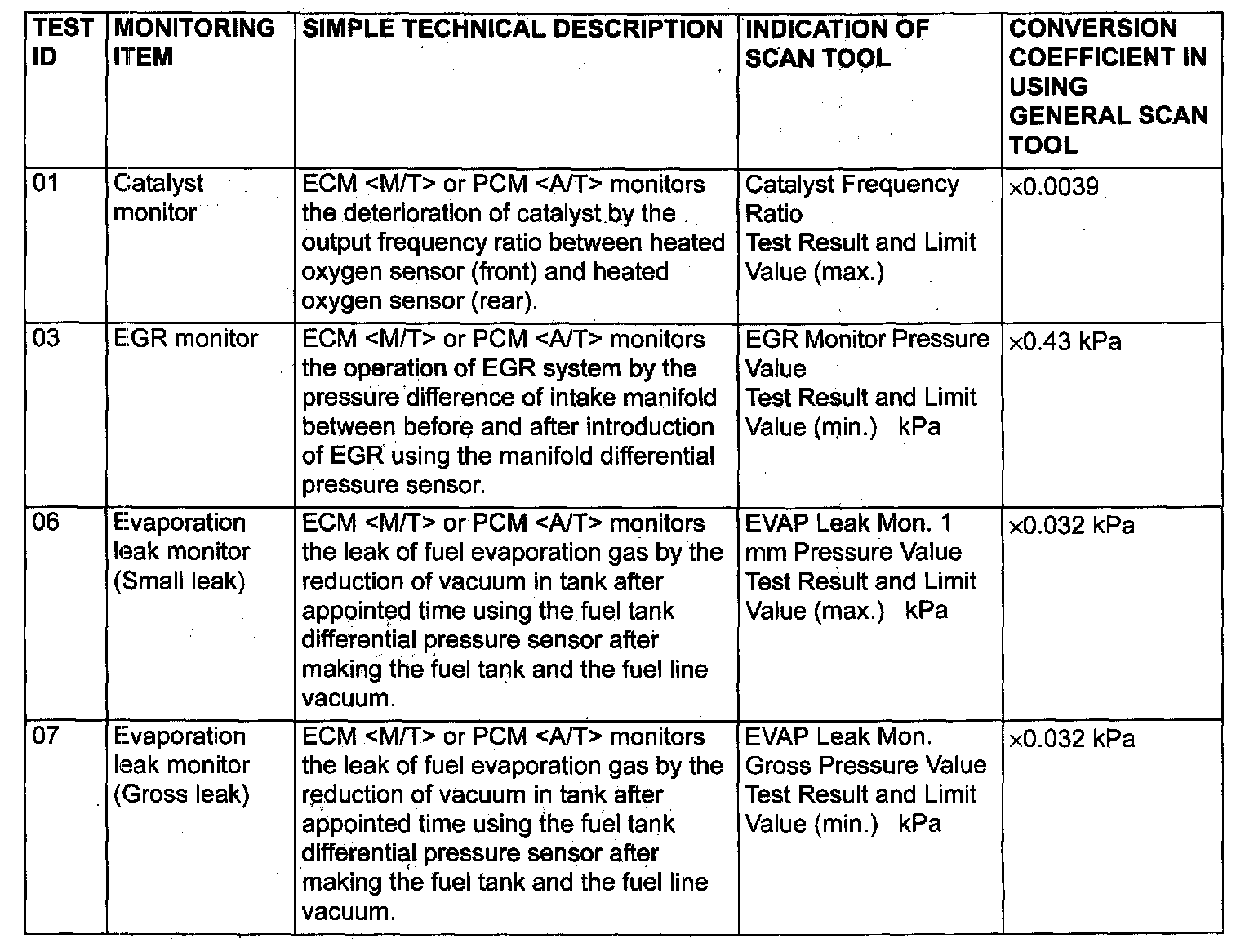

Mode 6 Reference Table - Part 1:

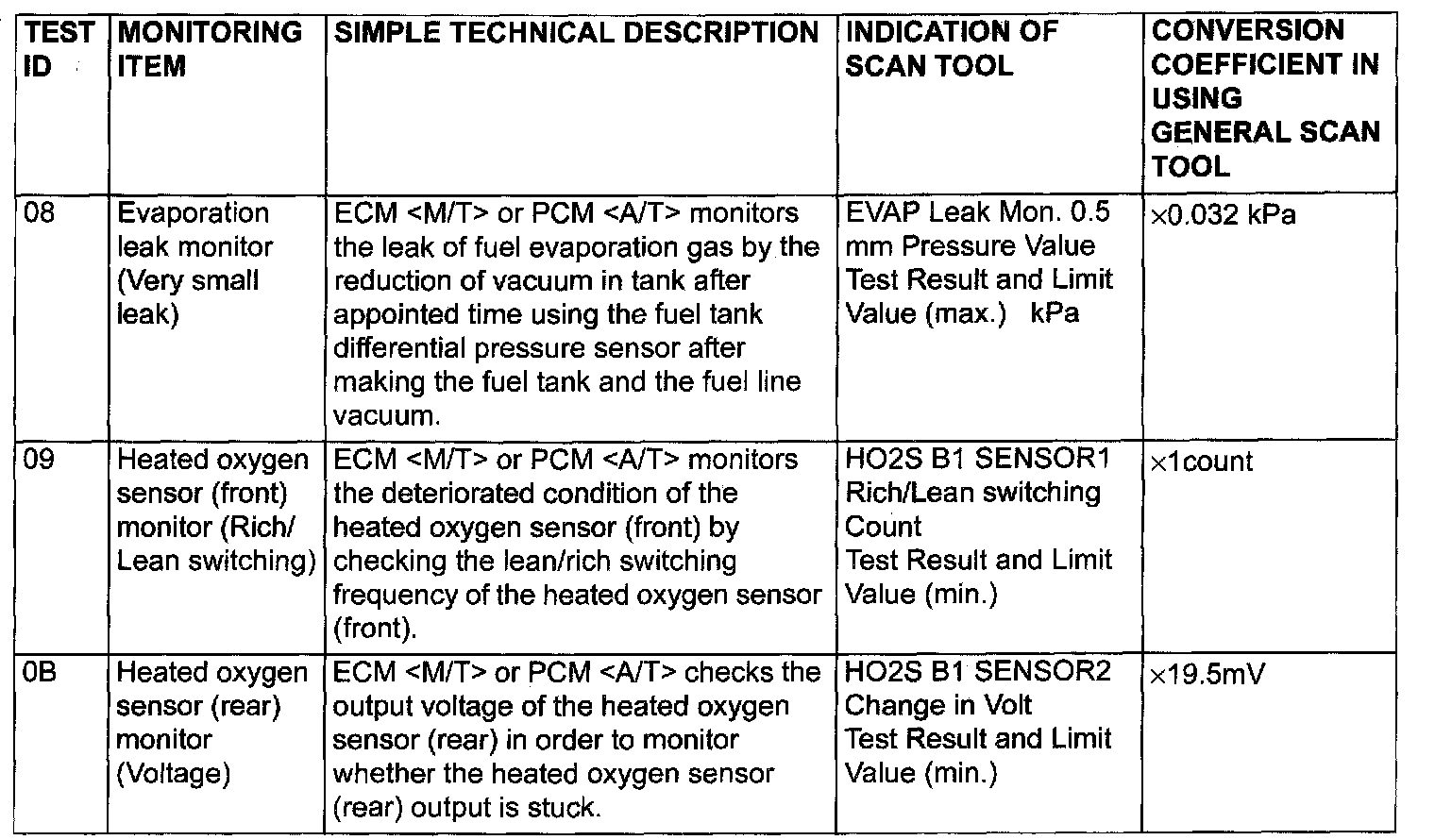

Mode 6 Reference Table - Part 2:

The engine control module (ECM) or powertrain control module (PCM) monitors the condition of emission control system.

By selecting MODE 6 using scan tool, Test Result and Limit Value (minimum) *1 or (maximum) *2 about the main items of emission control system which ECM or PCM monitors can be confirmed. The value at the last monitoring is output by ECM or PCM as a test result.

NOTE:
*1: The test falls if test value is less than this value.
*2: The test fails if test value is greater than this value.
