Powertrain Management: Locations

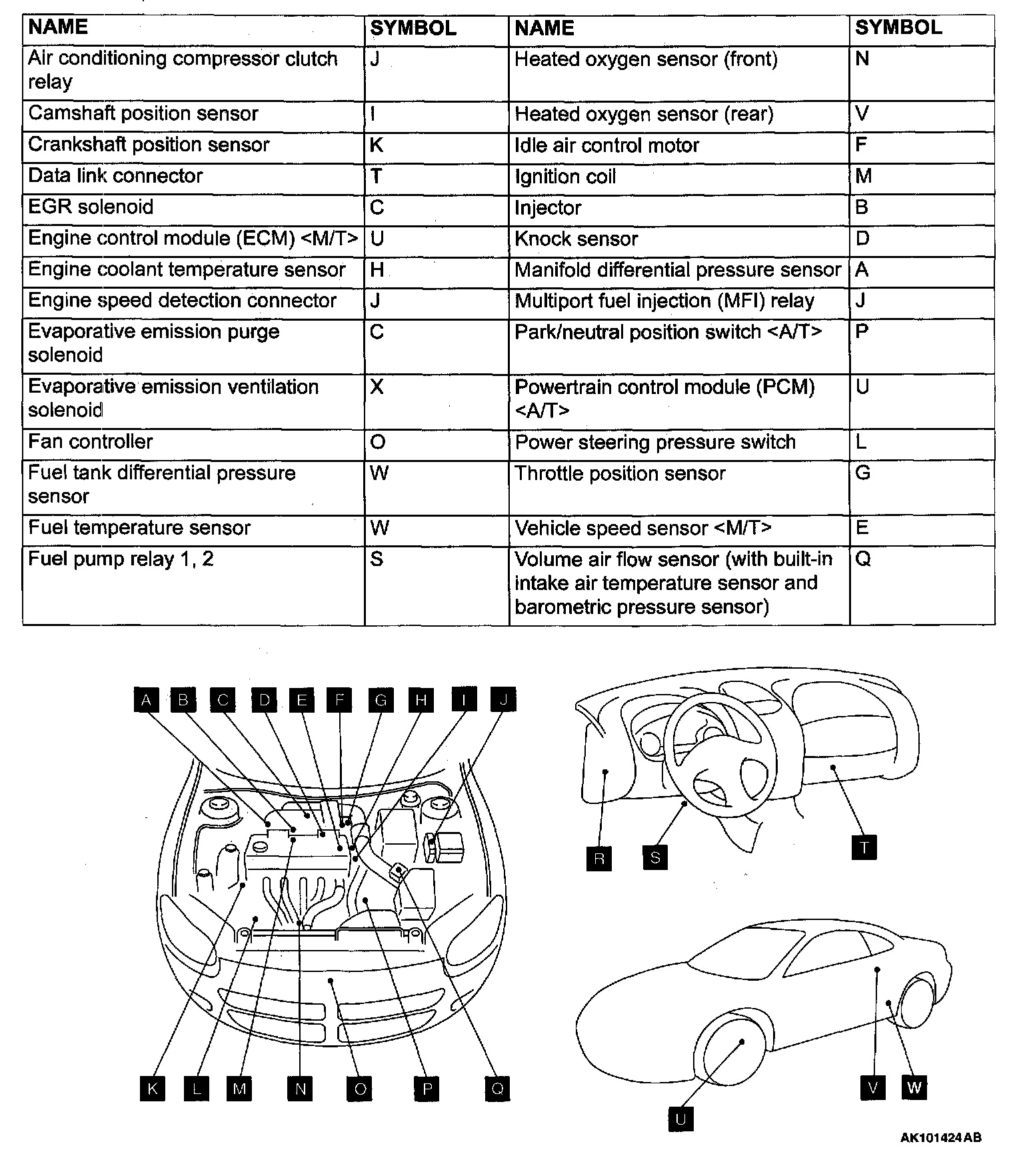

Component Location:

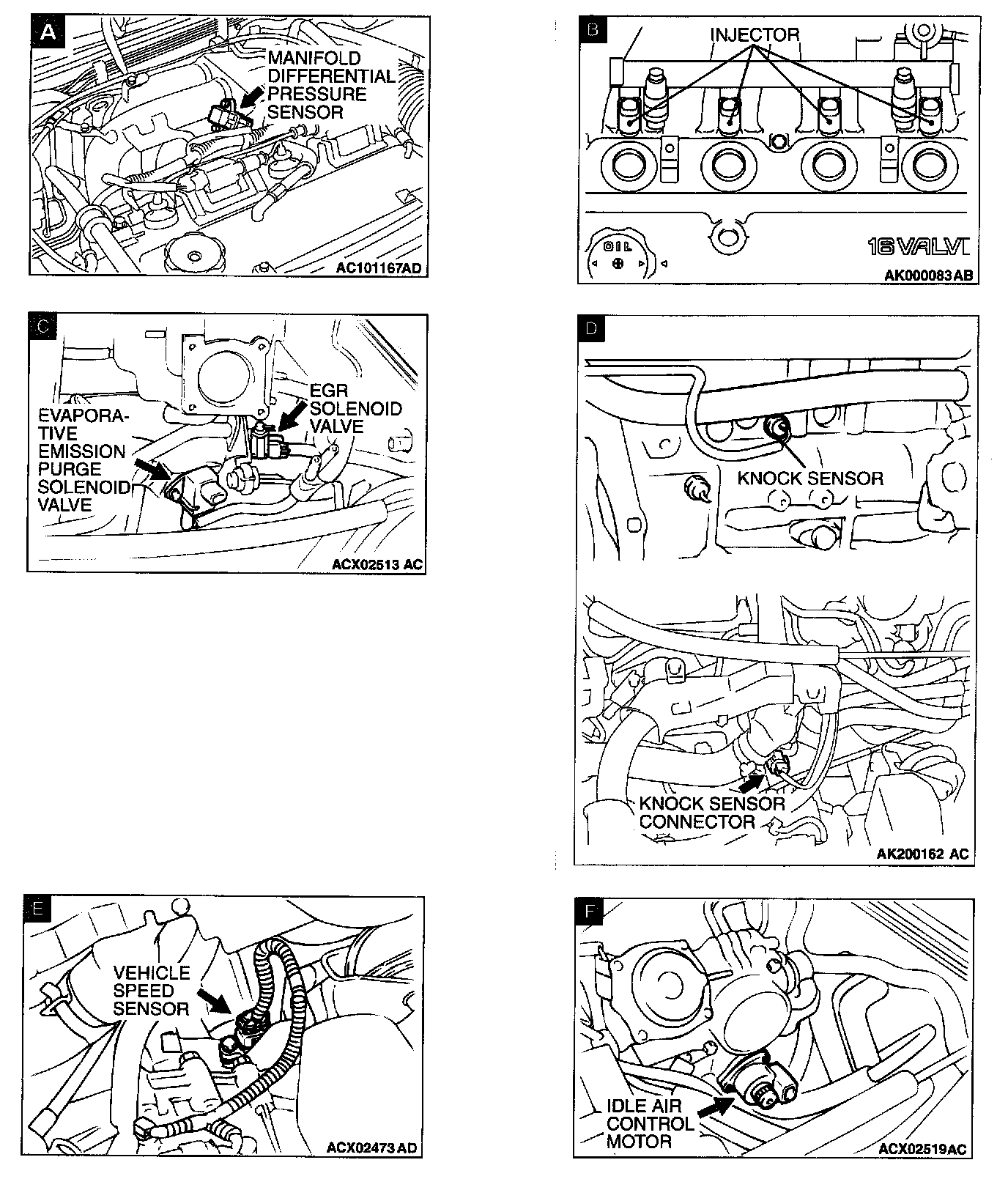

Views A - F:

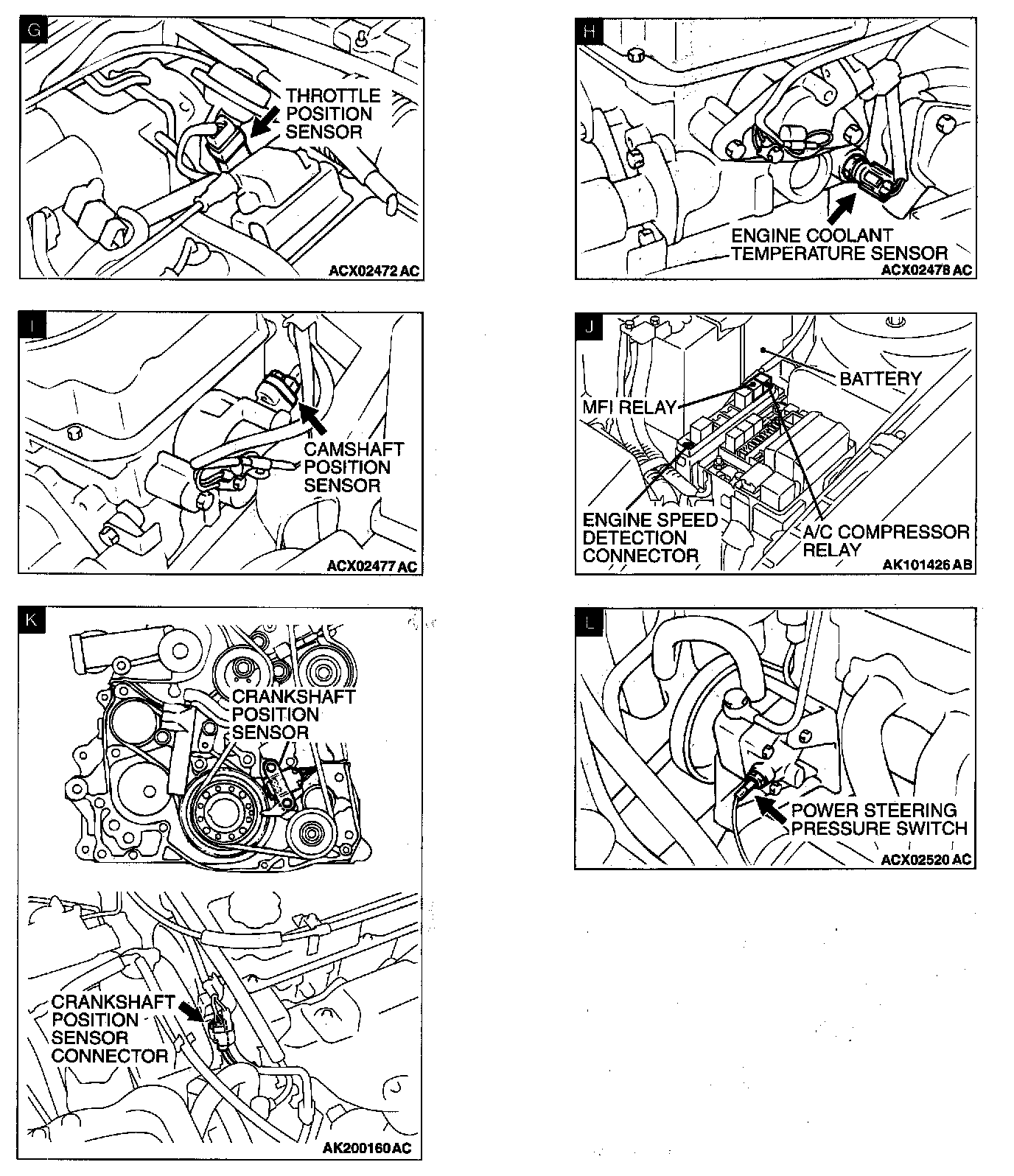

Views G - L:

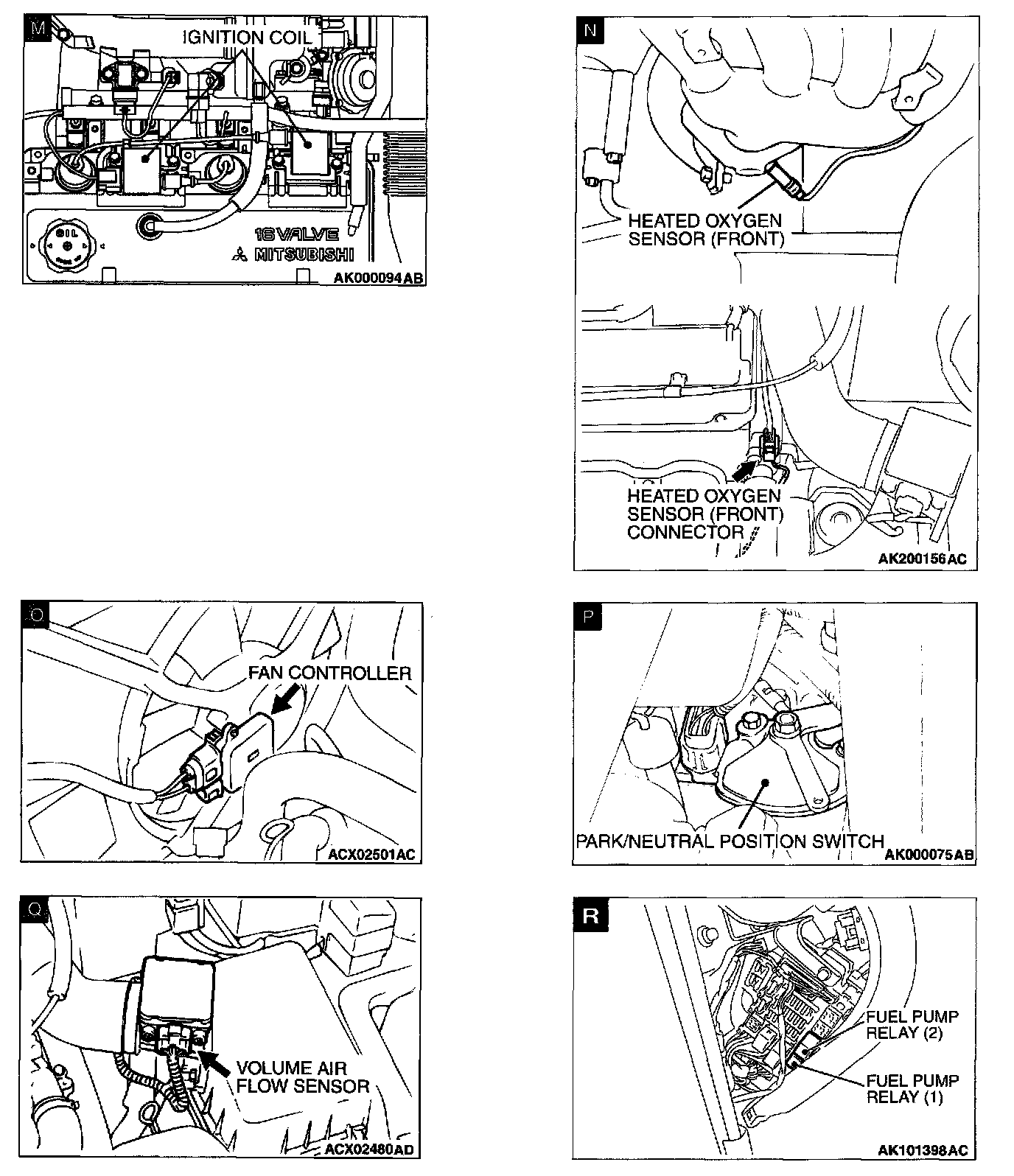

Views M - R:

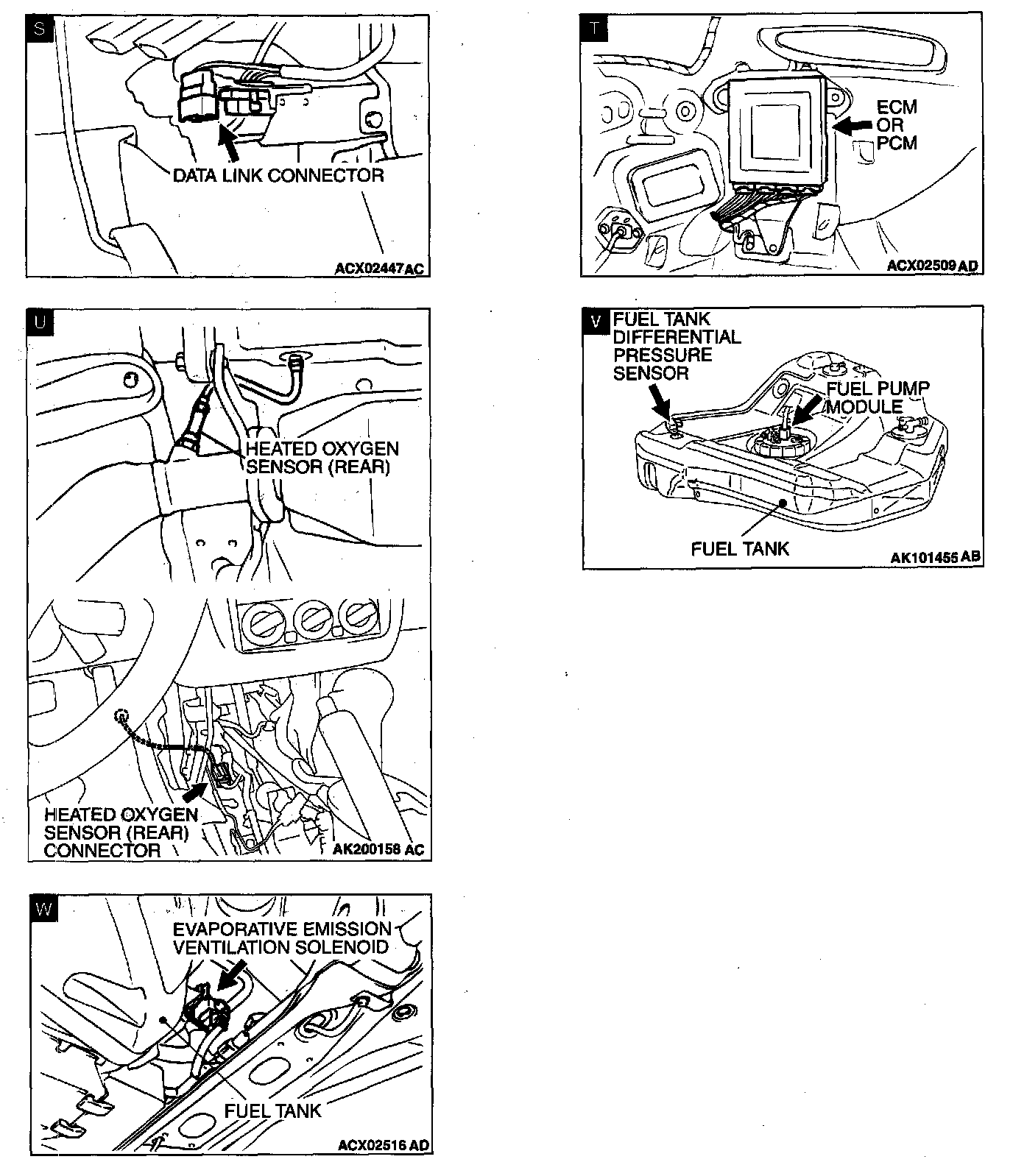

Views S - W:
