< 3.0L Engine > Upshift Pattern

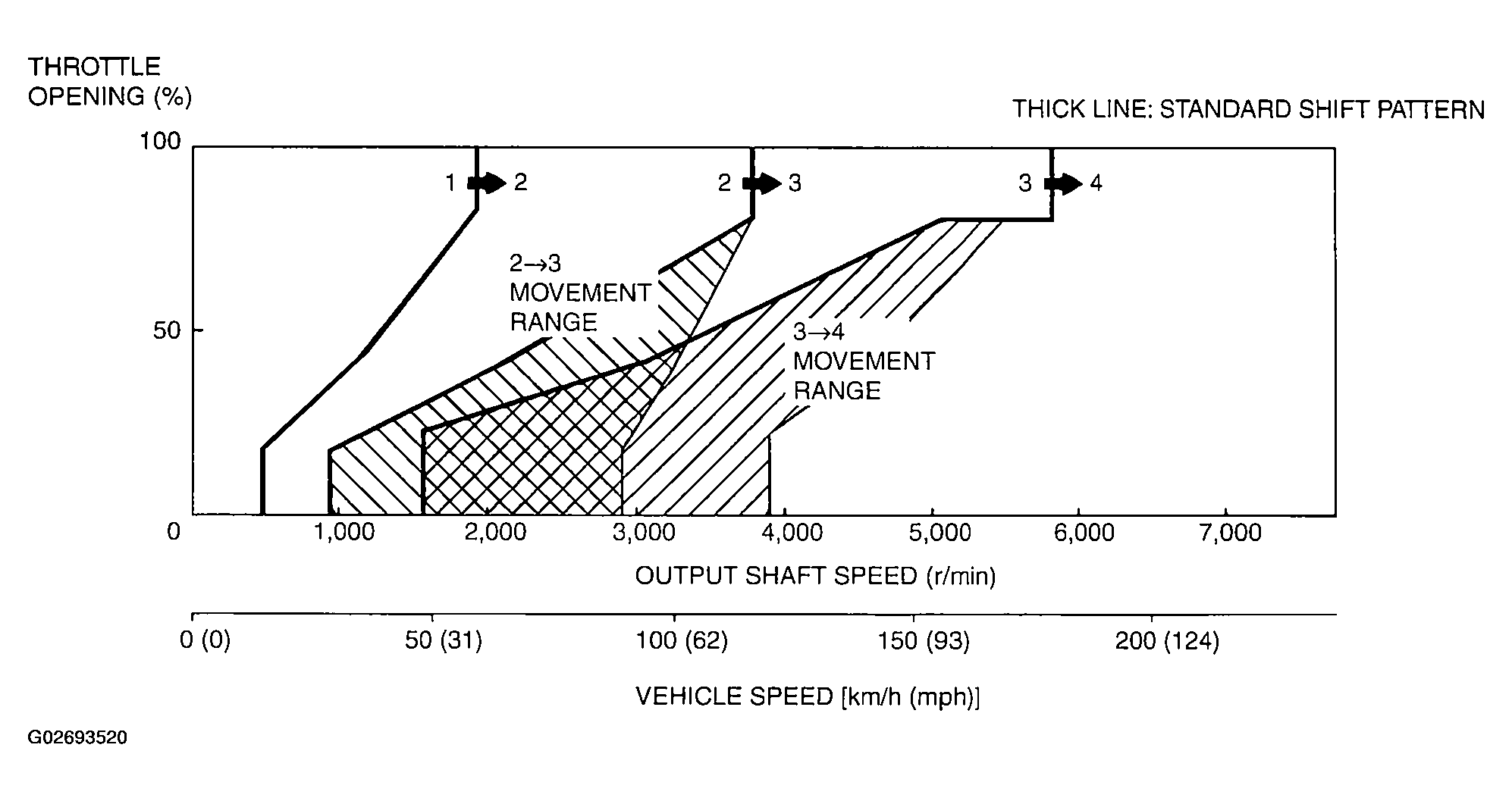

Fig 1: Upshift Pattern Graph (3.0L Engine)
Courtesy of DAIMLERCHRYSLER CORP.
NOTE:
Within 2 -to- 3 and 3 -to- 4 movement ranges, the PCM adjusts shift points according to the driving conditions by memorizing the accelerator pedal stroke and braking timing.
