Disassembly And Assembly: Notes

CAUTION: Never disassemble the BJ assembly except when replacing the BJ boot.

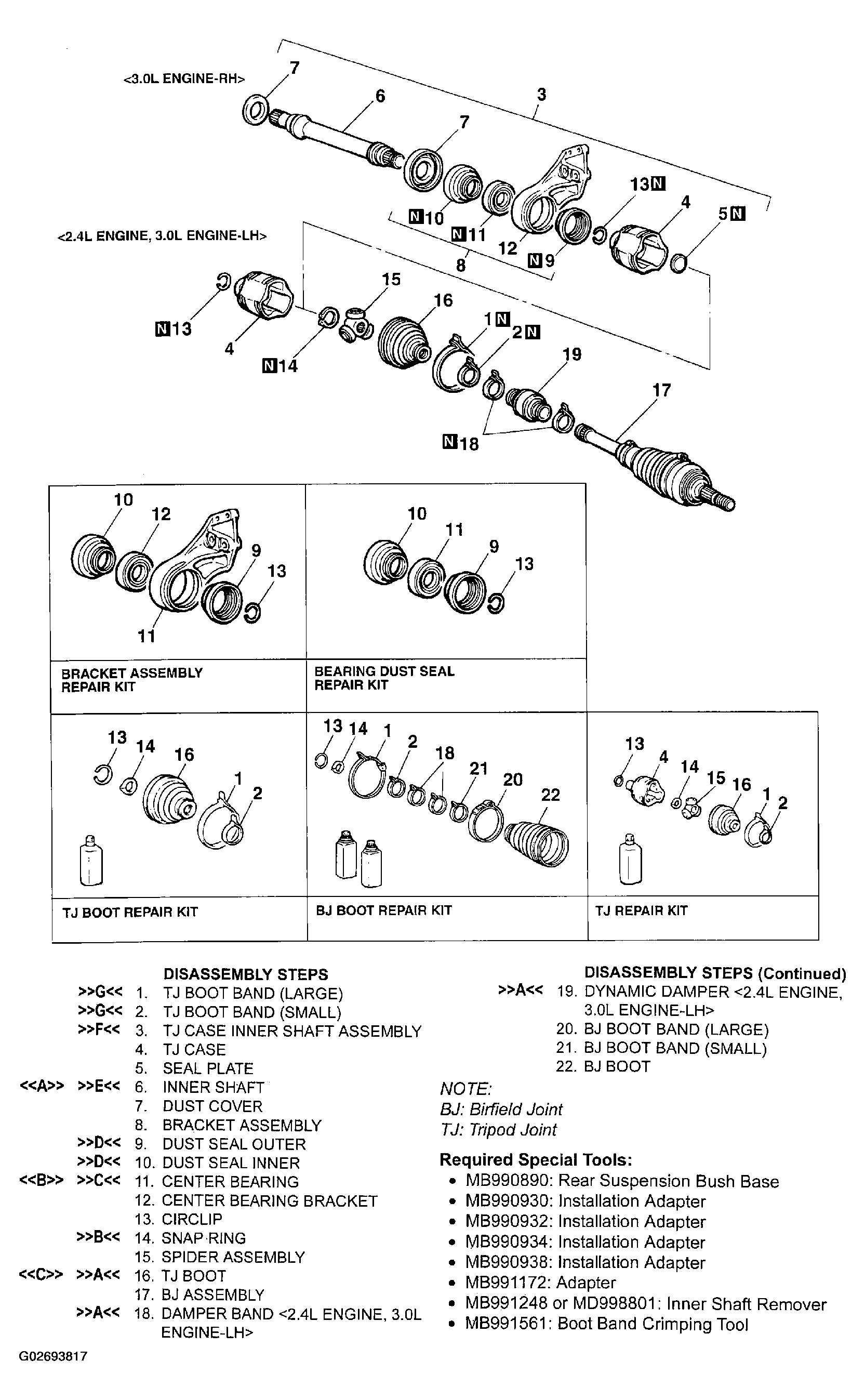

Fig 1: Disassembling & Assembling Drive Shaft Assembly
G02693817Courtesy of DAIMLERCHRYSLER CORP.
