Connector Identification

NOTE: See Fig 1-Fig 44 for connector identification.
Fig 1: Identifying A/C Compressor Clutch Harness Connector
G00201096Courtesy of CHRYSLER CORP.
Fig 2: Identifying A/C Transducer Harness Connector
G00085470Courtesy of DAIMLERCHRYSLER CORPORATION

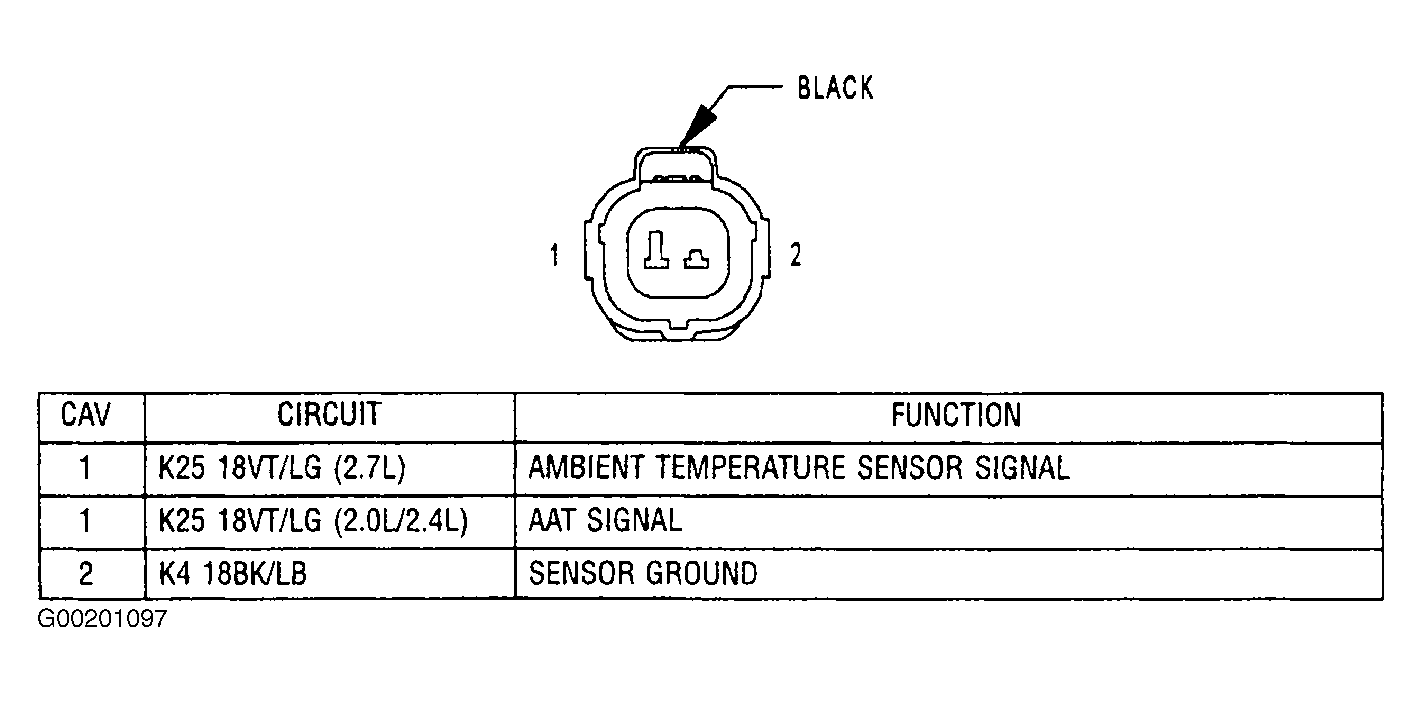

Fig 3: Identifying Ambient Temperature Sensor Harness Connector
G00201097Courtesy of CHRYSLER CORP.

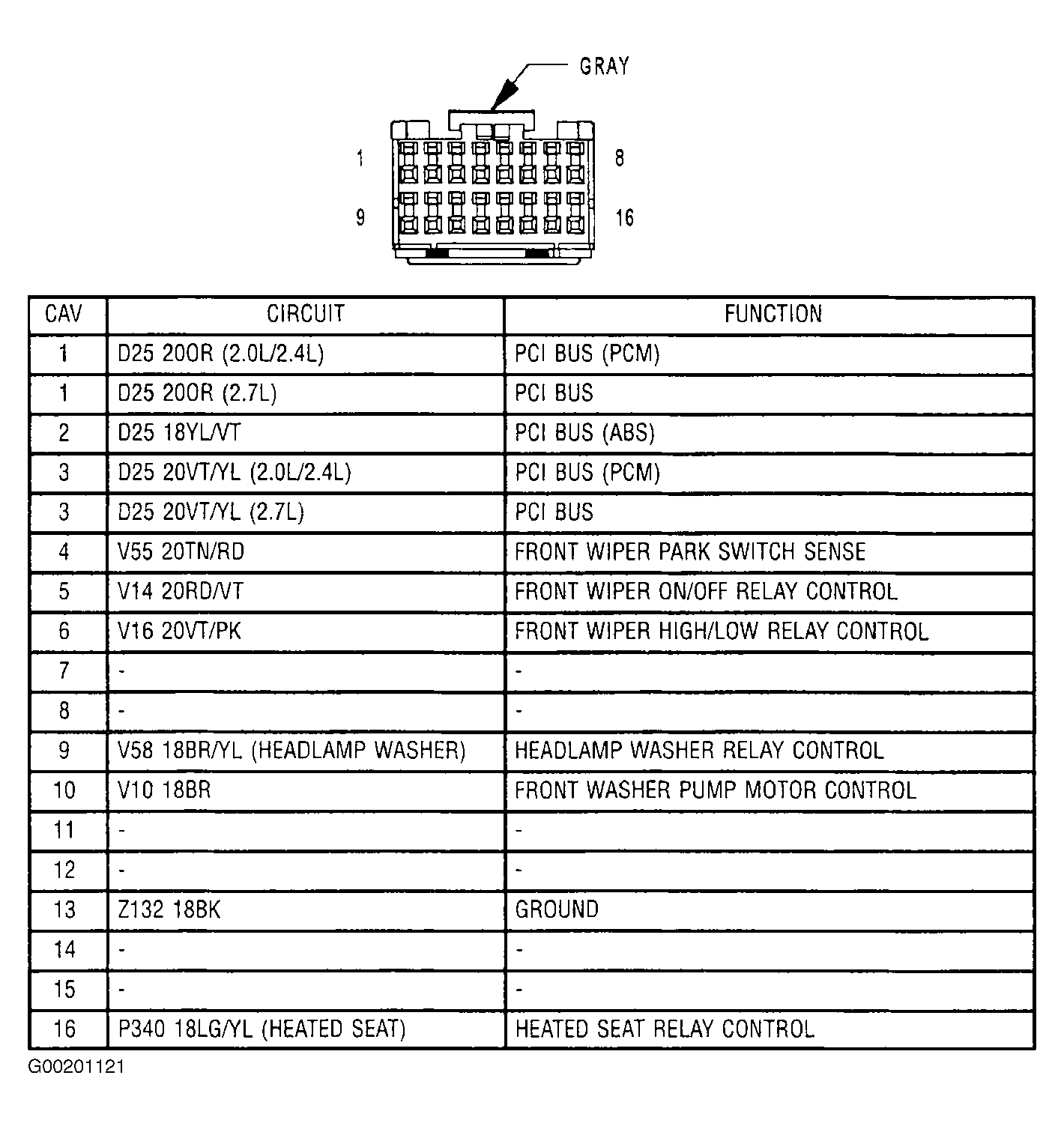

Fig 4: Identifying Body Control Module C3 Harness Connector
G00201121Courtesy of CHRYSLER CORPORATION

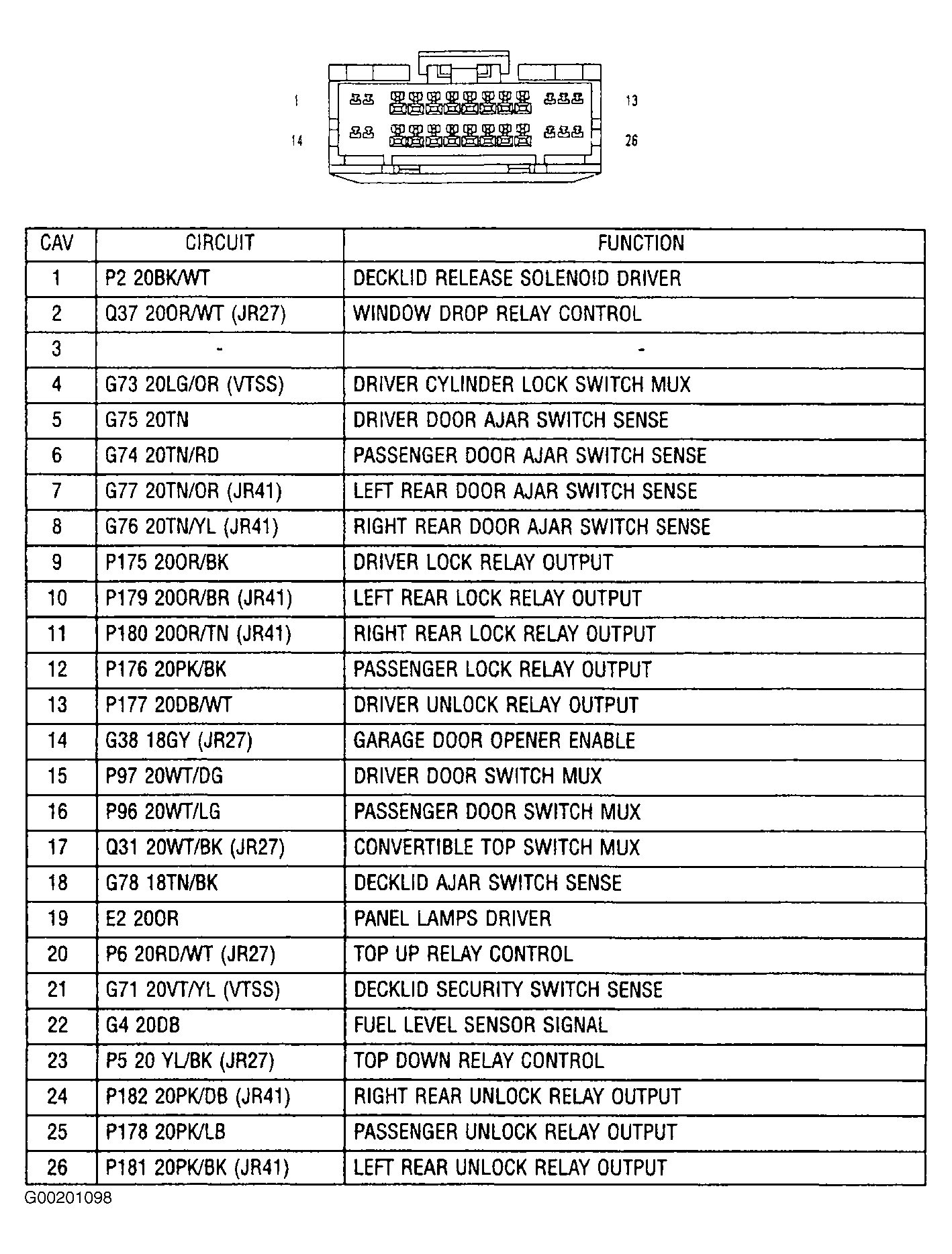

Fig 5: Identifying Body Control Module C4 Harness Connector
G00201098Courtesy of CHRYSLER CORP.

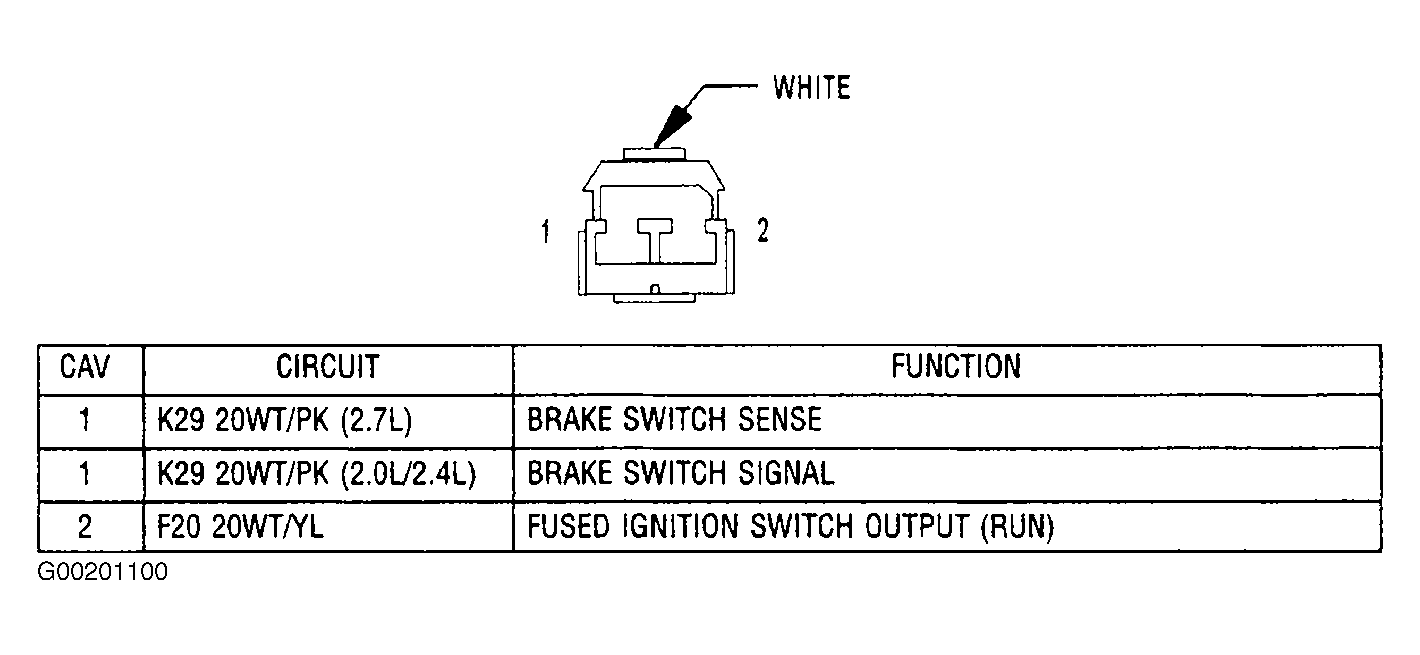

Fig 6: Identifying Brake Transmission Shift Interlock Solenoid Harness Connector
G00201100Courtesy of CHRYSLER CORP.

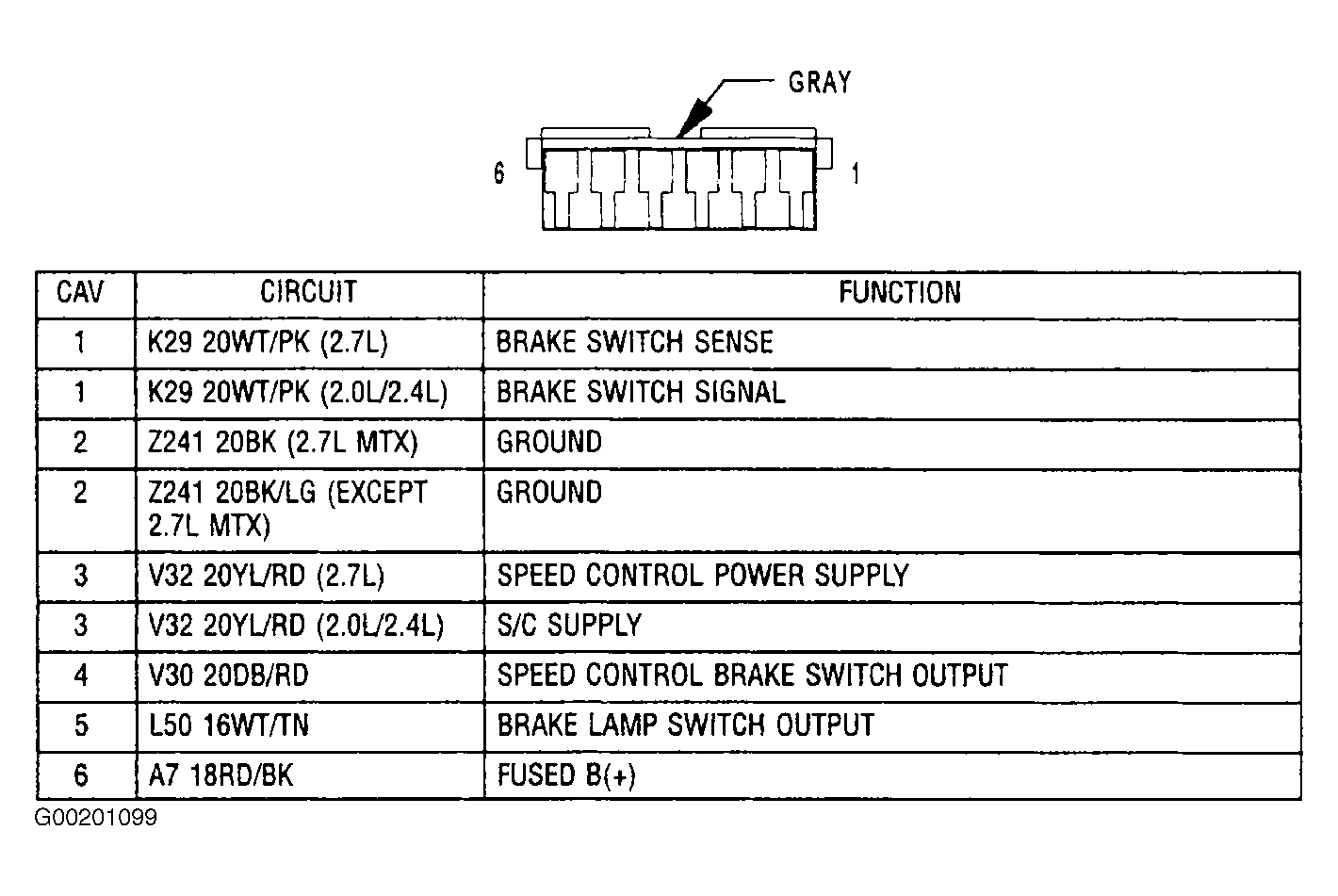

Fig 7: Identifying Brakelight Switch Harness Connector
G00201099Courtesy of CHRYSLER CORP.

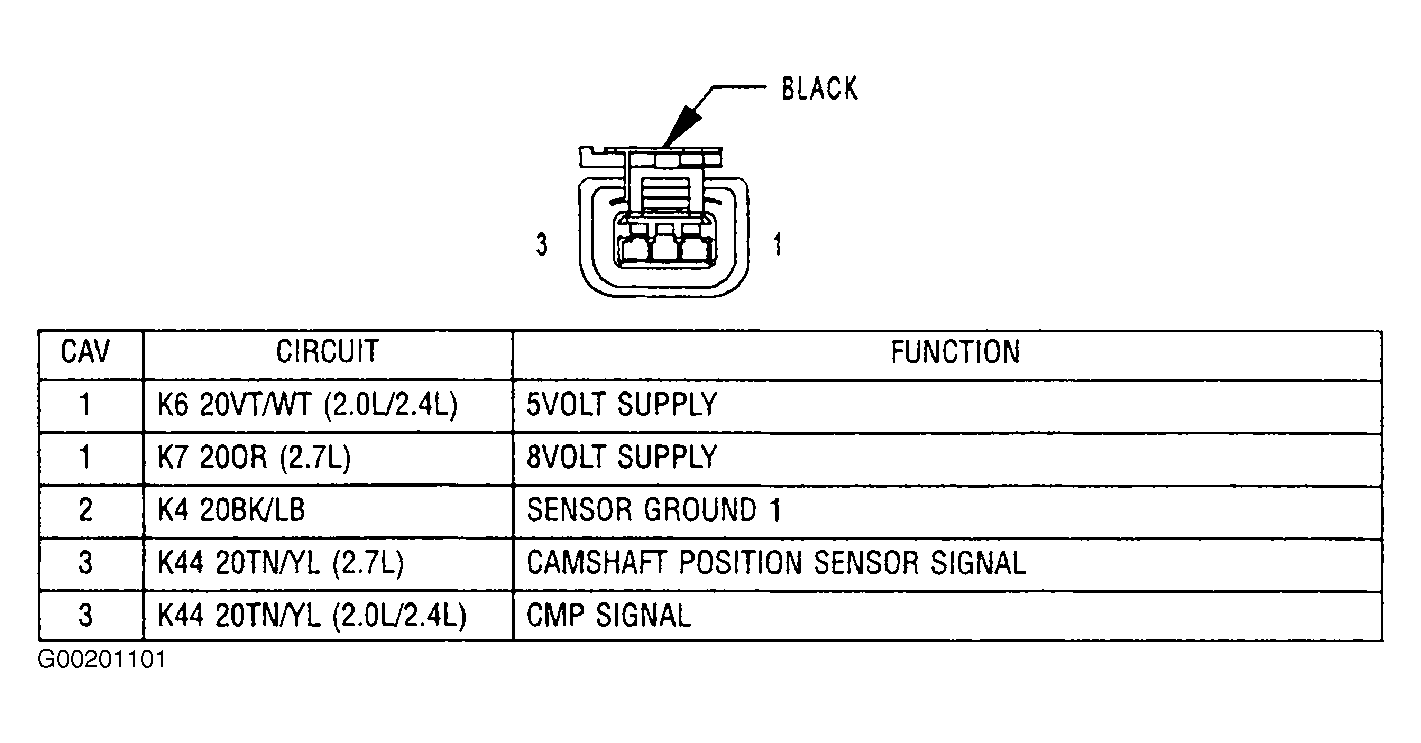

Fig 8: Identifying Camshaft Position Sensor Harness Connector
G00201101Courtesy of CHRYSLER CORP.

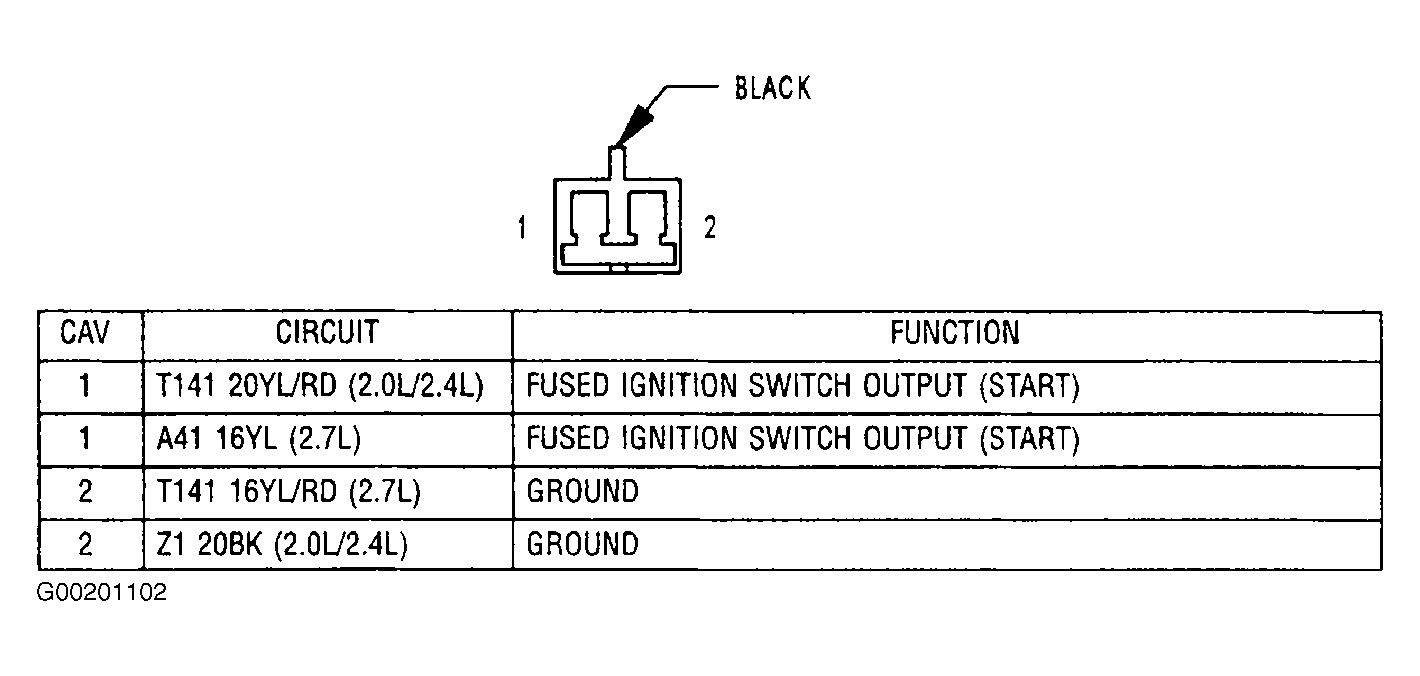

Fig 9: Identifying Clutch Interlock/Upstop Switch Harness Connector
G00201102Courtesy of CHRYSLER CORP.

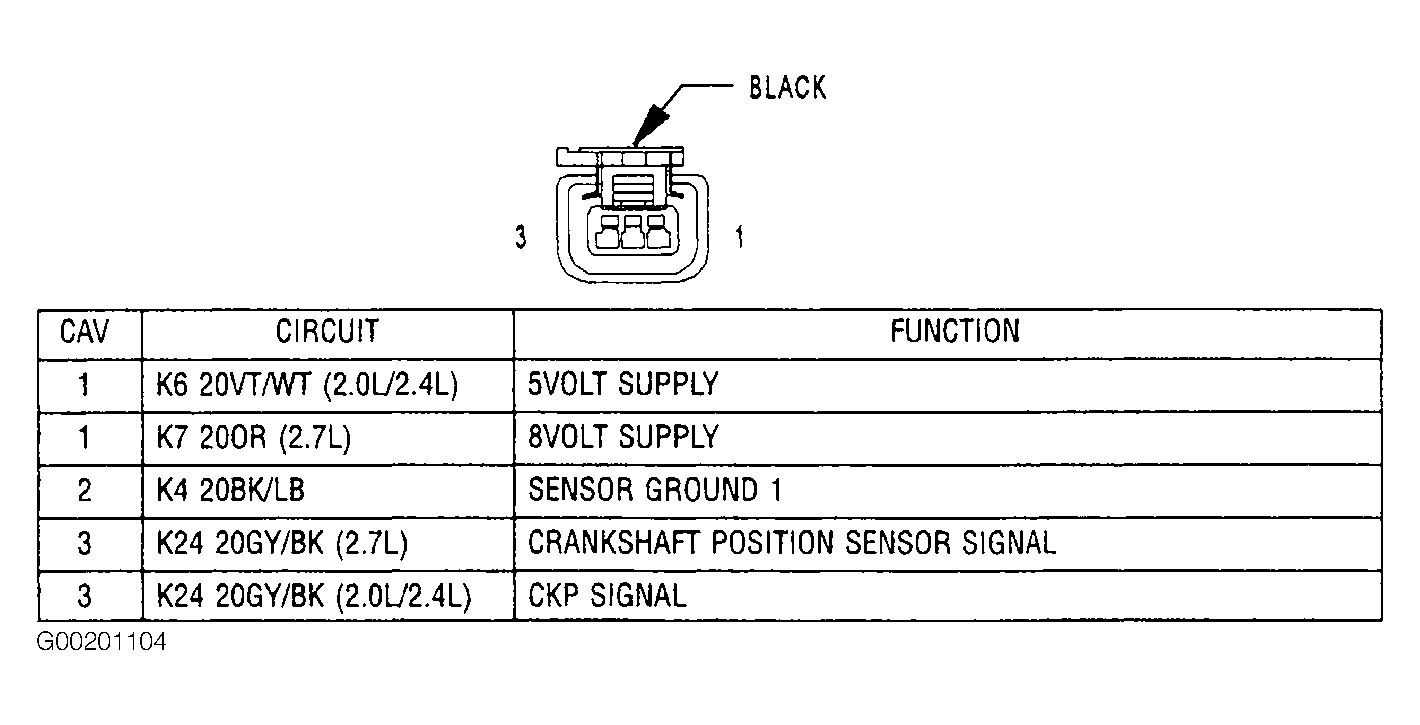

Fig 10: Identifying CKP Sensor Harness Connector
G00201104Courtesy of CHRYSLER CORP.

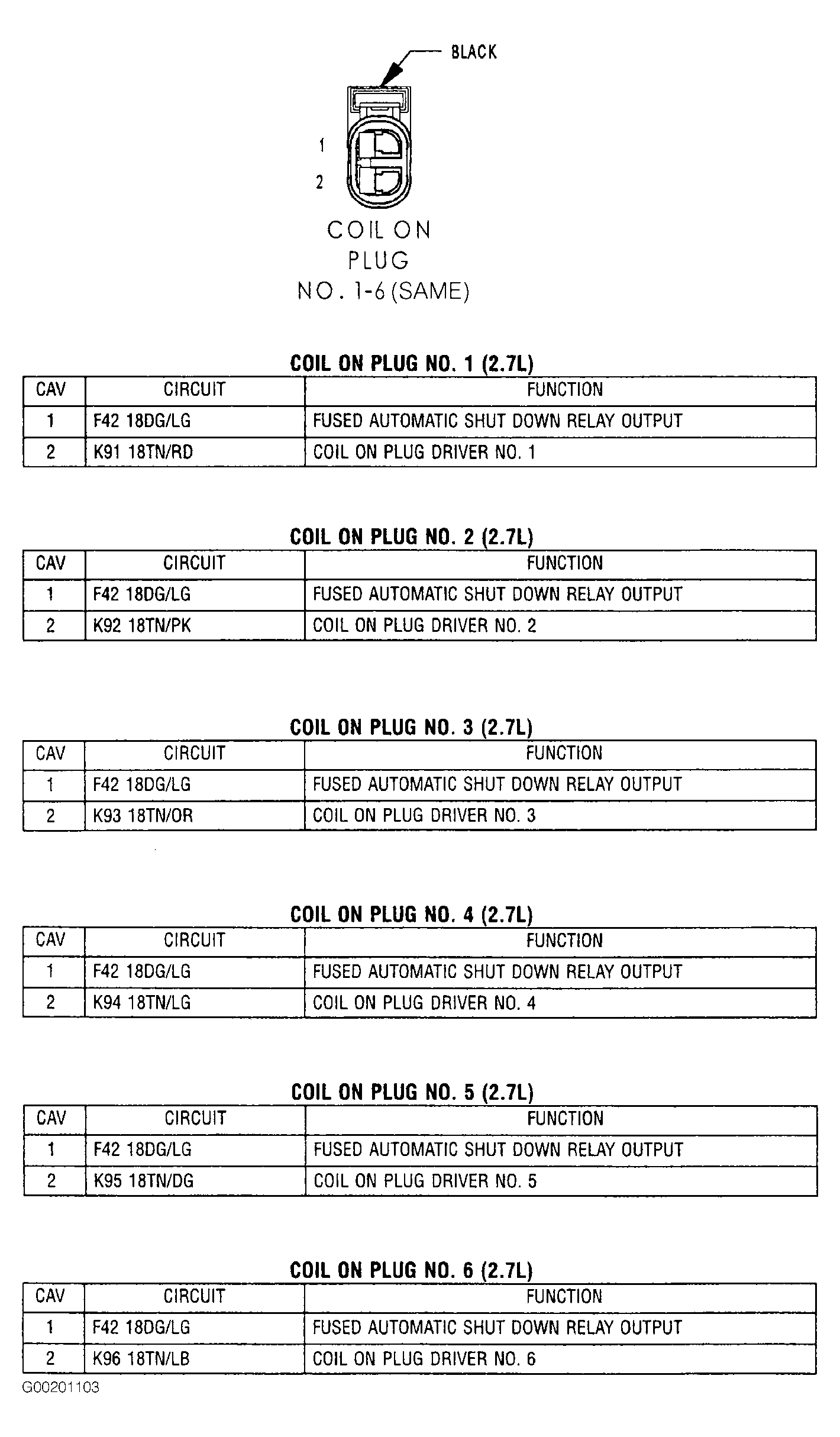

Fig 11: Identifying Coil On Plug
G00201103Courtesy of CHRYSLER CORP.

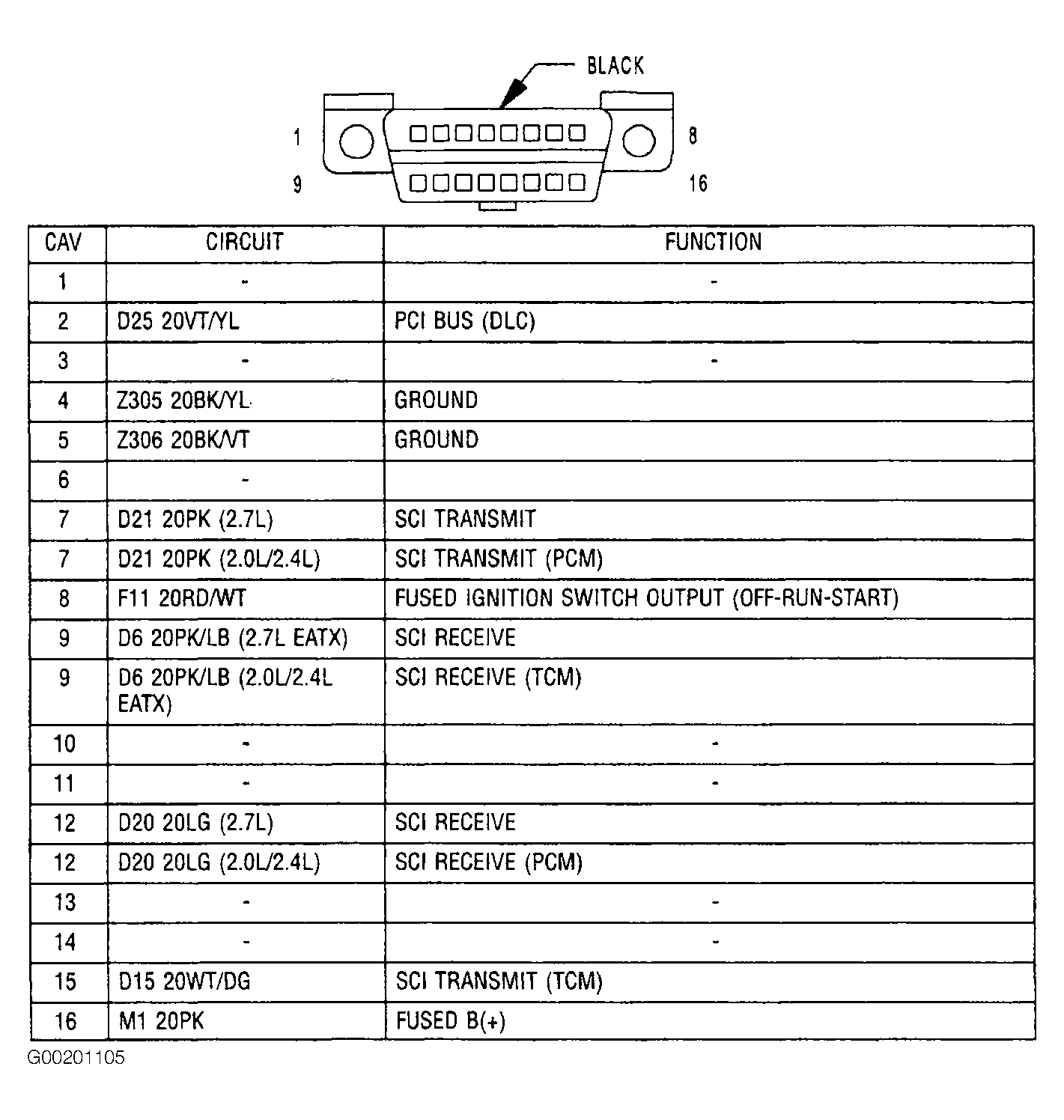

Fig 12: Identifying Data Link Connector Terminals
G00201105Courtesy of CHRYSLER CORP.
Fig 13: Identifying ECT Sensor Harness Connector
G00085486Courtesy of DAIMLERCHRYSLER CORPORATION

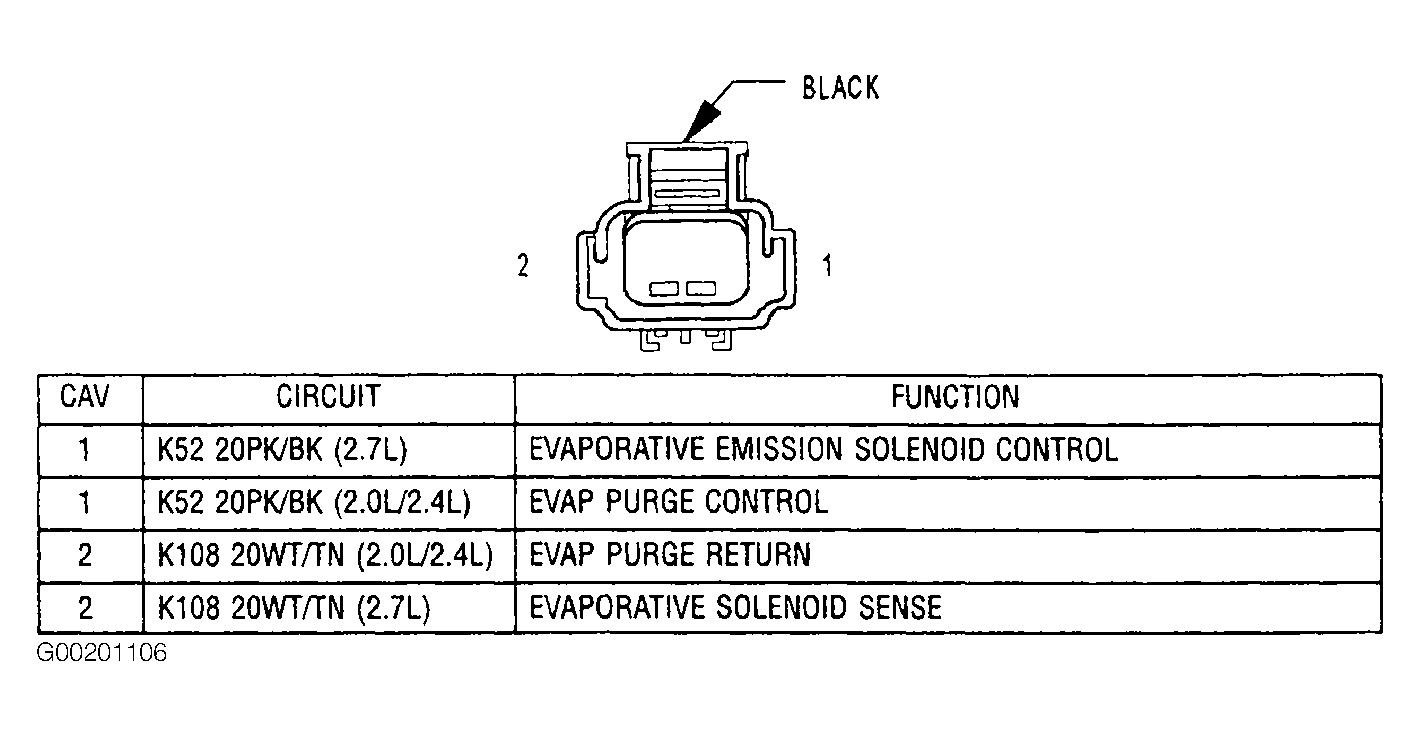

Fig 14: Identifying EVAP Purge Solenoid Harness Connector
G00201106Courtesy of CHRYSLER CORP.

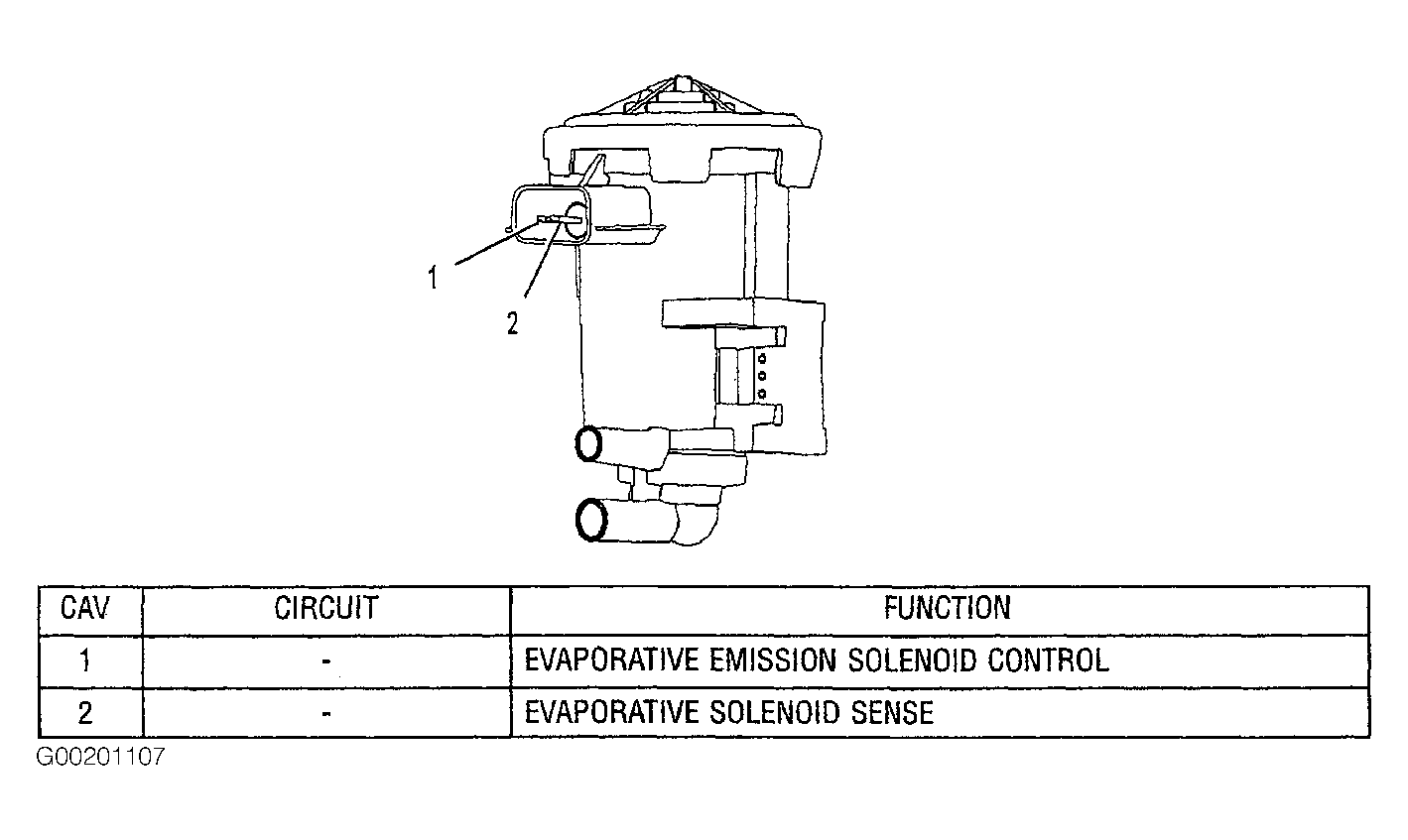

Fig 15: Identifying EVAP Purge Solenoid Terminals
G00201107Courtesy of CHRYSLER CORP.
Fig 16: Identifying Fuel Injector No. 1 Harness Connector
G00085490Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 17: Identifying Fuel Injector No. 2 Harness Connector
G00085492Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 18: Identifying Fuel Injector No. 3 Harness Connector
G00085494Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 19: Identifying Fuel Injector No. 4 Harness Connector
G00085496Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 20: Identifying Fuel Injector No. 5 Harness Connector
G00085497Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 21: Identifying Fuel Injector No. 6 Harness Connector
G00085498Courtesy of DAIMLERCHRYSLER CORPORATION

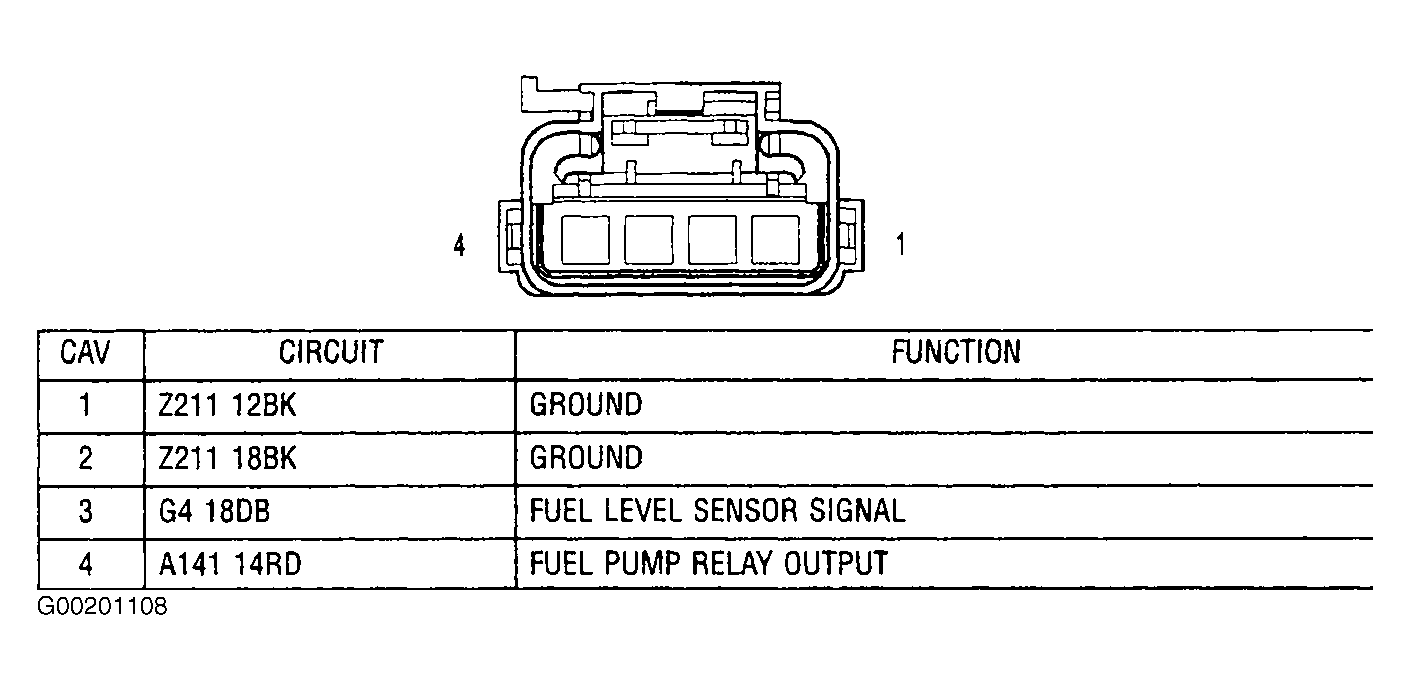

Fig 22: Identifying Fuel Pump Module Harness Connector
G00201108Courtesy of CHRYSLER CORP.
Fig 23: Identifying Generator Connections
G00201110Courtesy of CHRYSLER CORP.

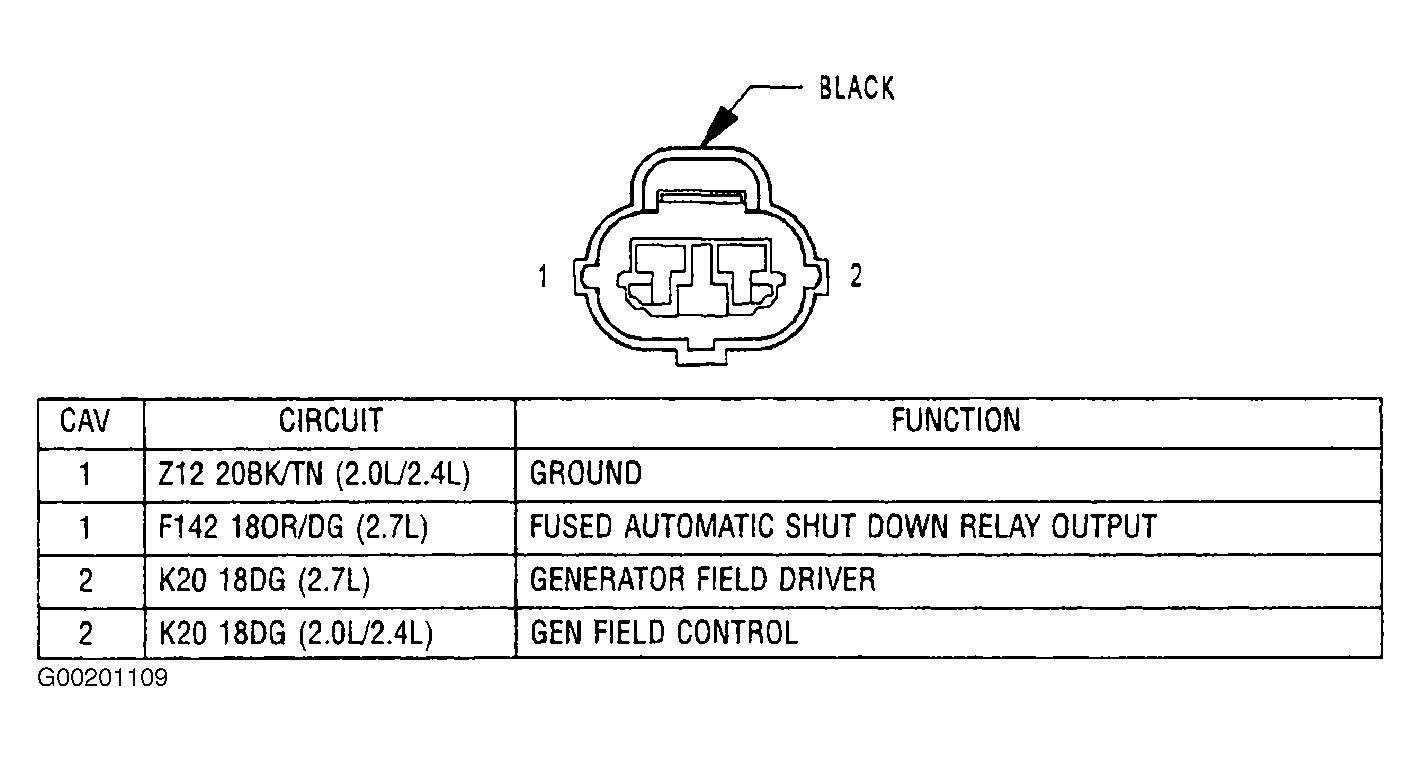

Fig 24: Identifying Generator Harness Connector
G00201109Courtesy of CHRYSLER CORP.

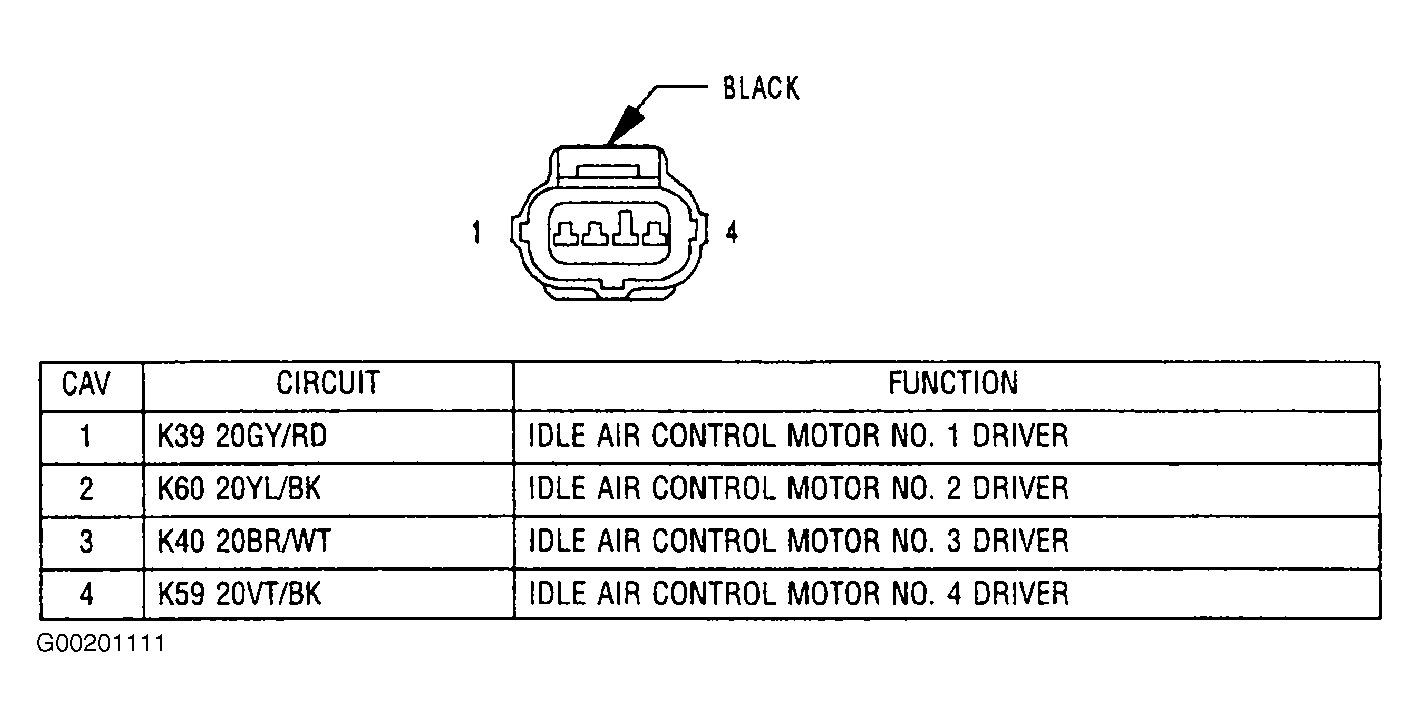

Fig 25: Identifying Idle Air Control Motor Harness Connector
G00201111Courtesy of CHRYSLER CORP.
Fig 26: Identifying Inlet Air Temperature Sensor Harness Connector
G00085503Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 27: Identifying Knock Sensor Harness Connector
G00201112Courtesy of CHRYSLER CORP.

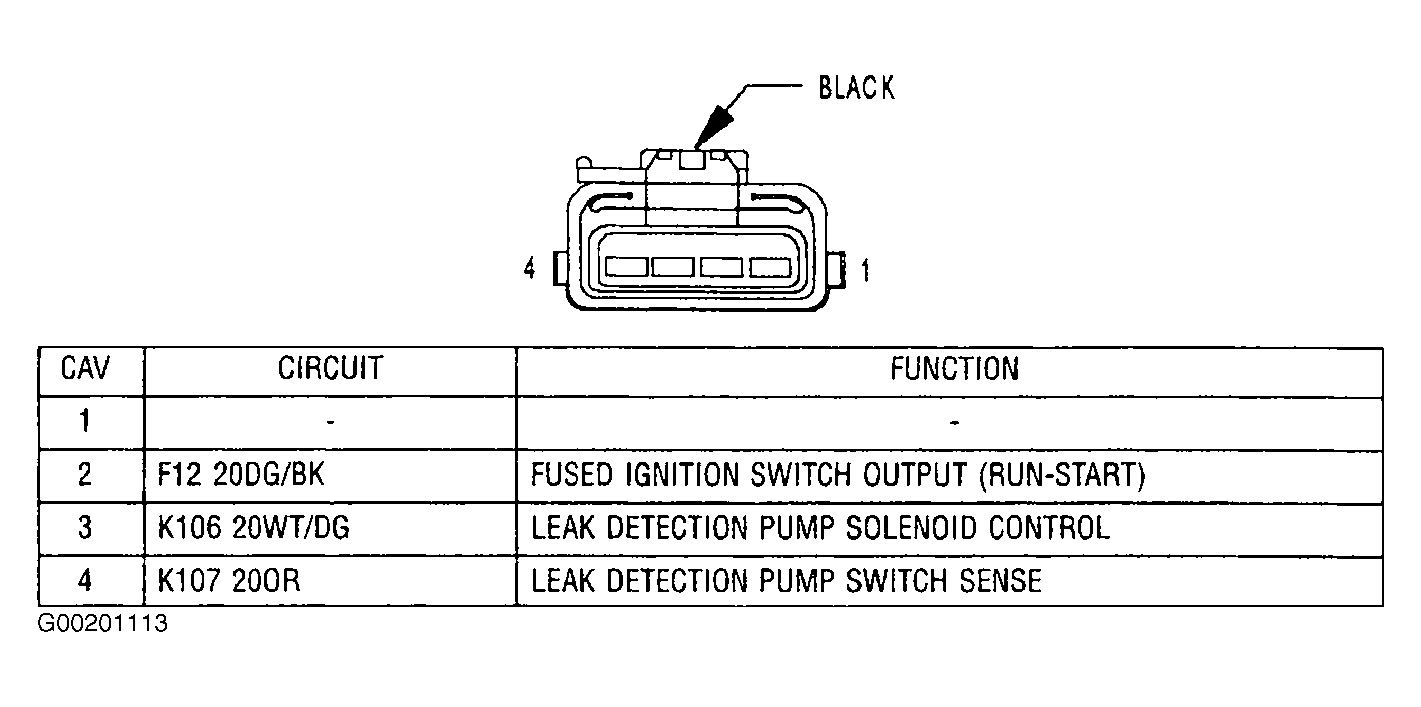

Fig 28: Identifying Leak Detection Pump Harness Connector
G00201113Courtesy of CHRYSLER CORP.
Fig 29: Identifying MAP Sensor Harness Connector
G00085508Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 30: Identifying Oil Pressure Switch Harness Connector
G00201114Courtesy of CHRYSLER CORP.

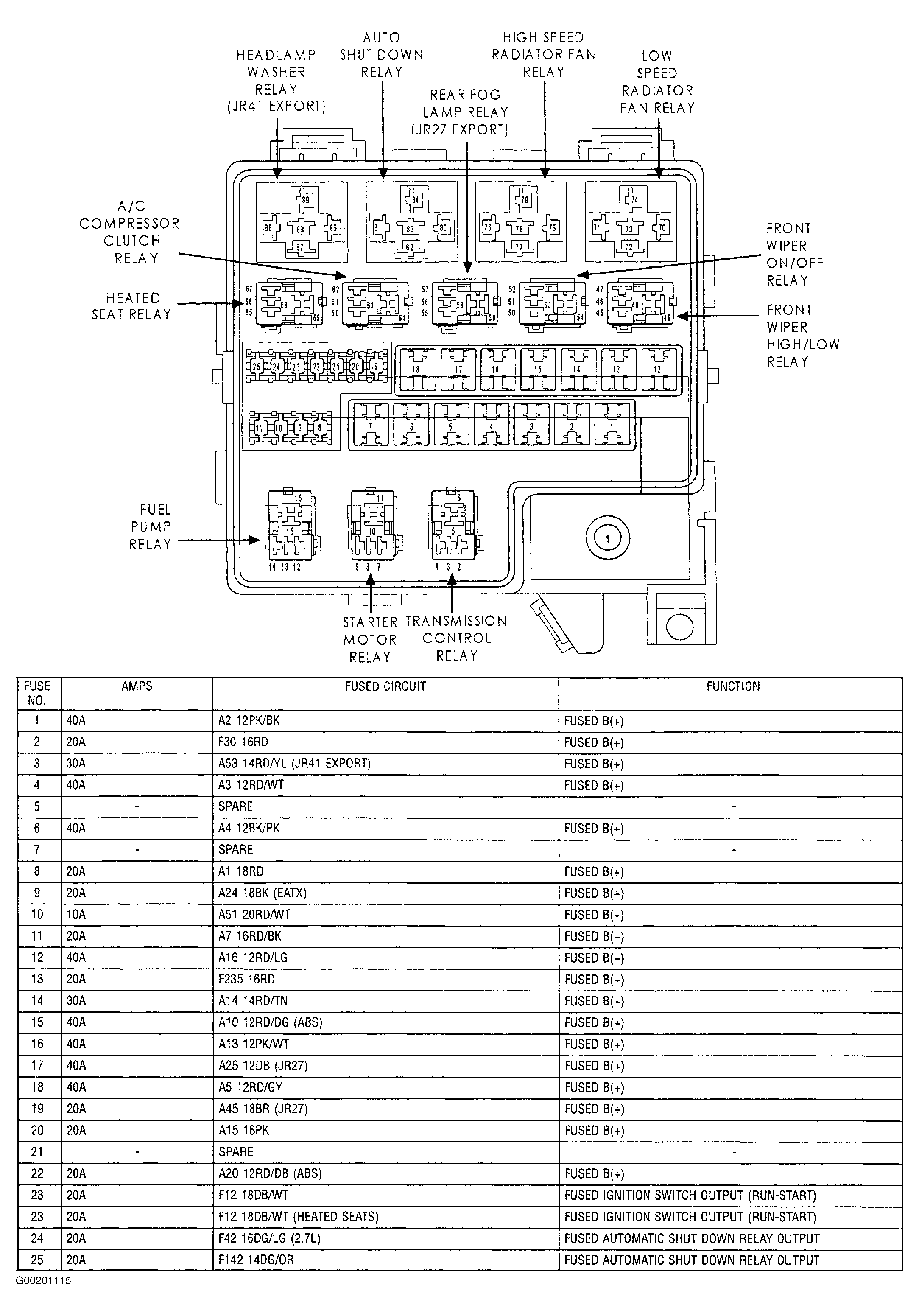

Fig 31: Identifying Power Distribution Center Fuses & Fuse Circuits
G00201115Courtesy of CHRYSLER CORP.

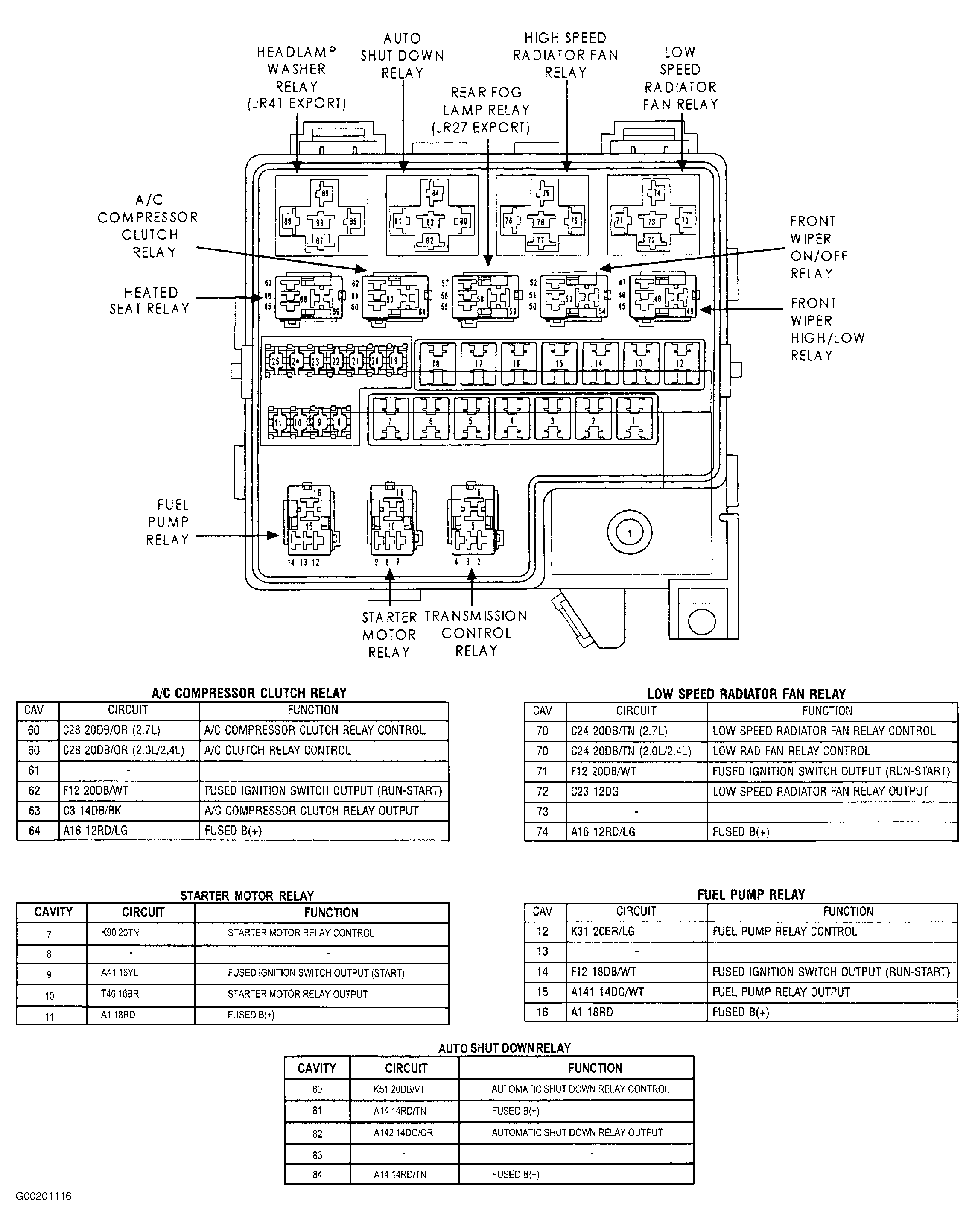

Fig 32: Identifying Power Distribution Center Relay Cavities & Circuits
G00201116Courtesy of CHRYSLER CORP.

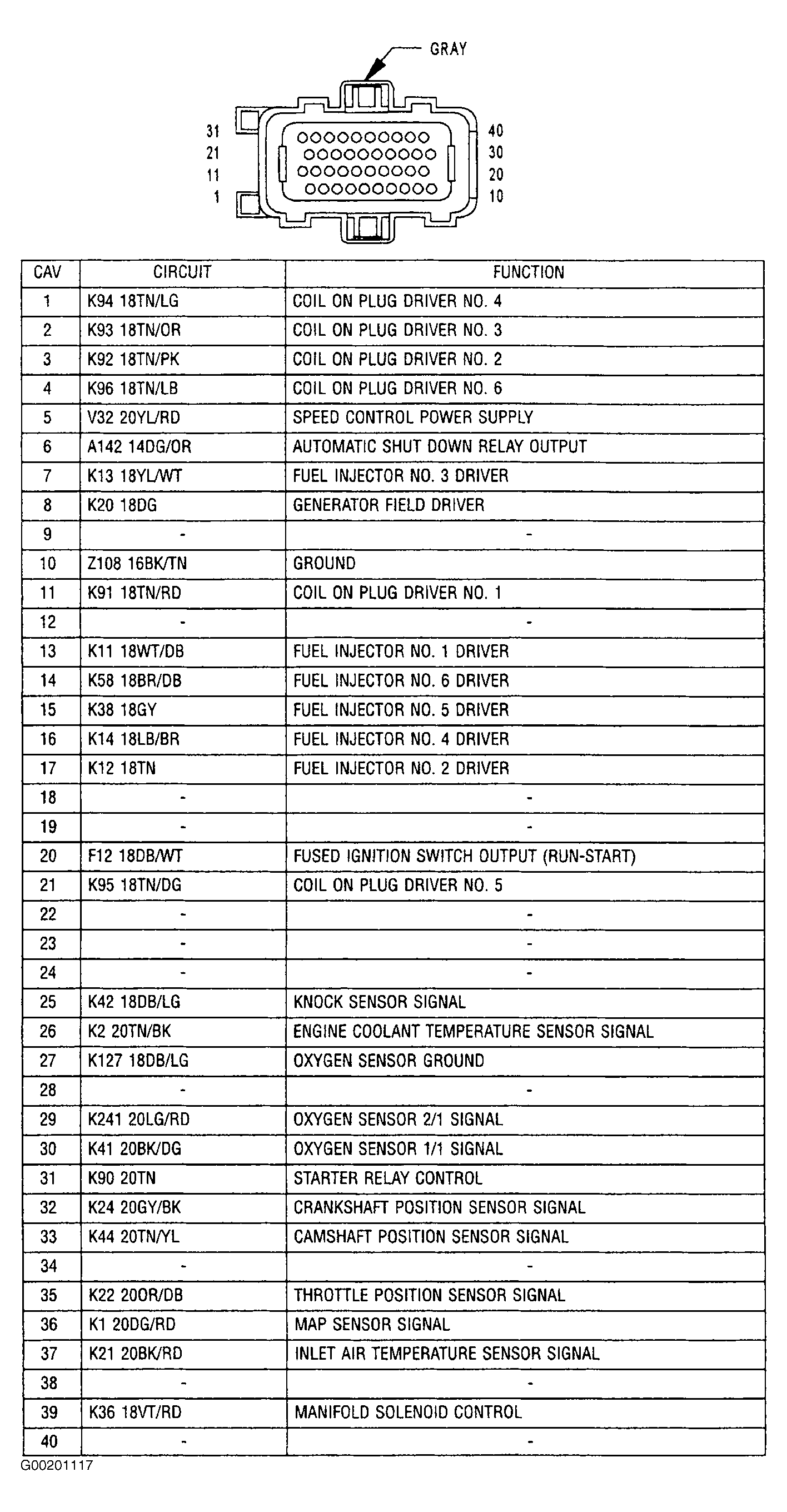

Fig 33: Identifying PCM C1 Harness Connector
G00201117Courtesy of CHRYSLER CORP.

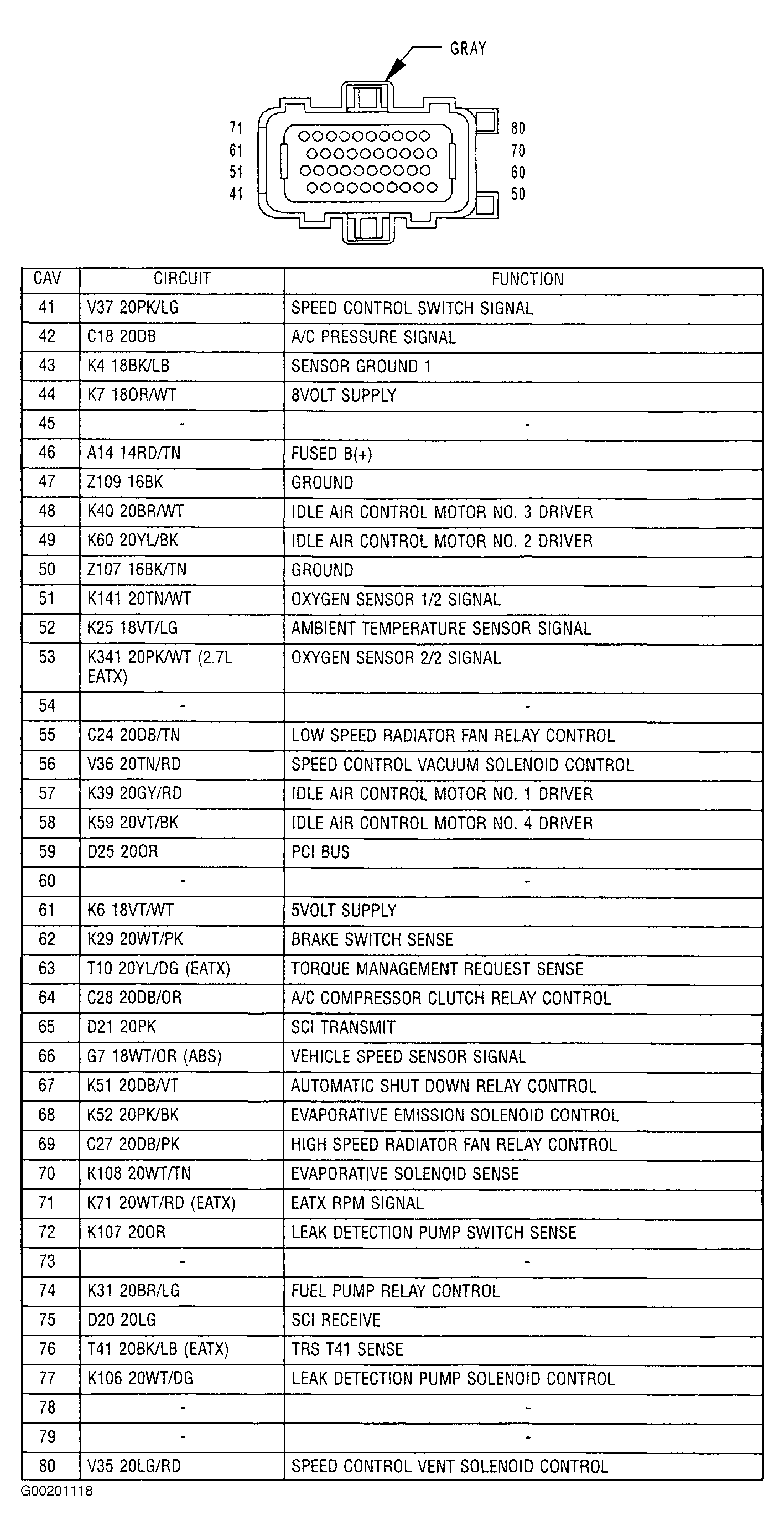

Fig 34: Identifying PCM C2 Harness Connector
G00201118Courtesy of CHRYSLER CORP.

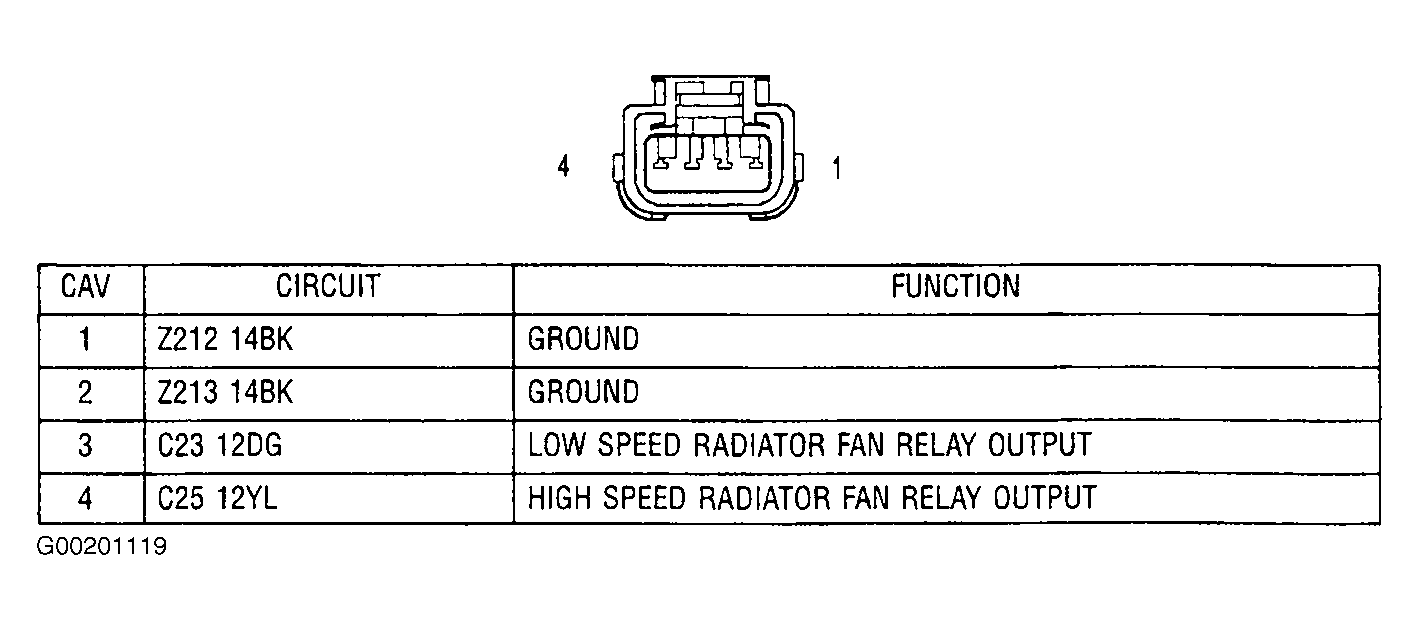

Fig 35: Identifying Radiator Fan Motor Harness Connector
G00201119Courtesy of CHRYSLER CORP.
Fig 36: Identifying Sentry Key Immobilizer Module Harness Connector
G00085520Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 37: Identifying TP Sensor Harness Connector
G00085522Courtesy of DAIMLERCHRYSLER CORPORATION

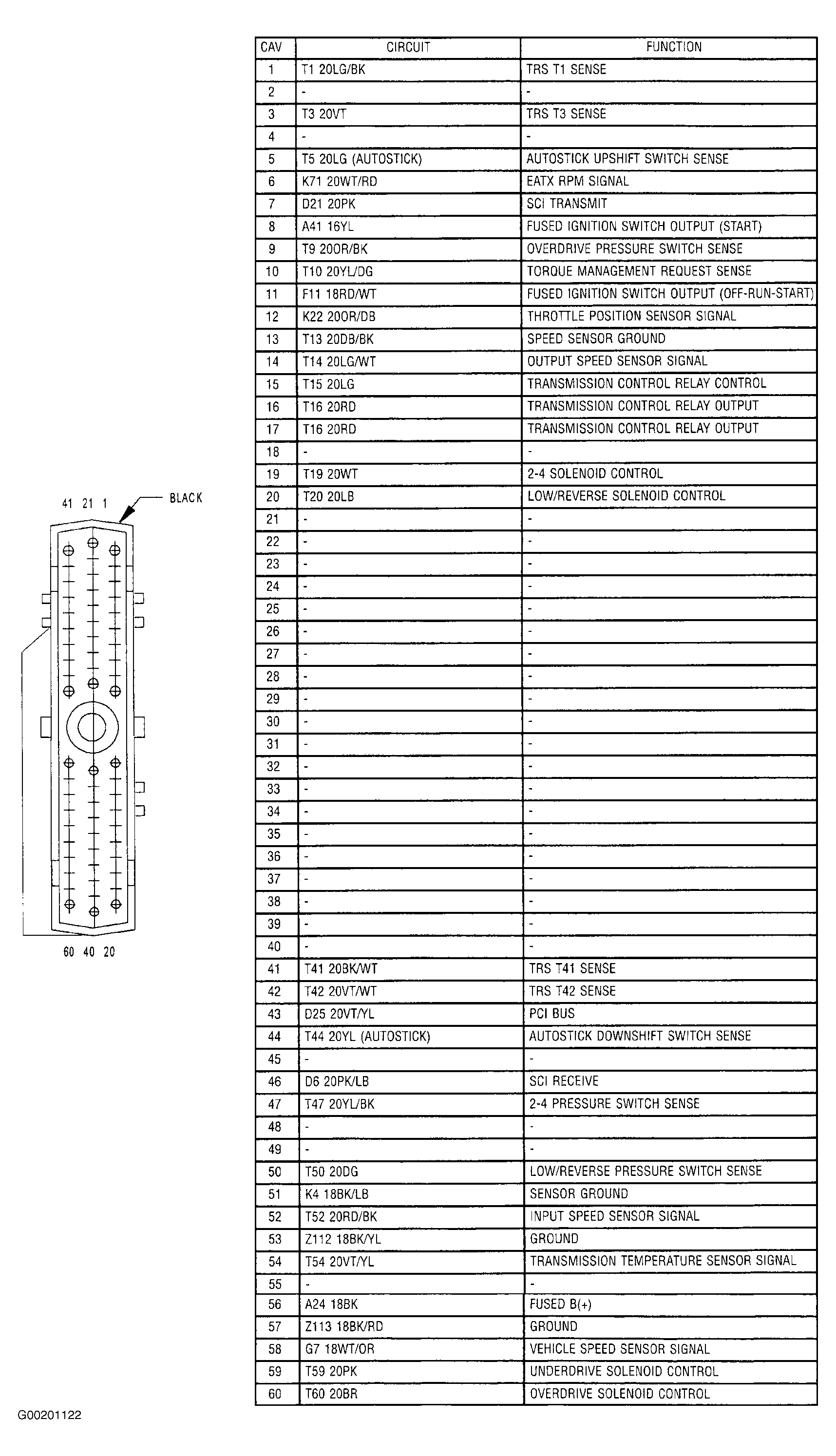

Fig 38: Identifying TCM Harness Connector
G00201122Courtesy of CHRYSLER CORP.
Fig 39: Identifying Transmission Range Sensor Harness Connector
G00085527Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 40: Identifying 1/1 O2 Sensor Harness Connector
G00085509Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 41: Identifying 1/2 O2 Sensor Harness Connector
G00085512Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 42: Identifying 2/1 O2 Sensor Harness Connector
G00085513Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 43: Identifying 2/2 O2 Sensor Harness Connector
G00085514Courtesy of DAIMLERCHRYSLER CORPORATION

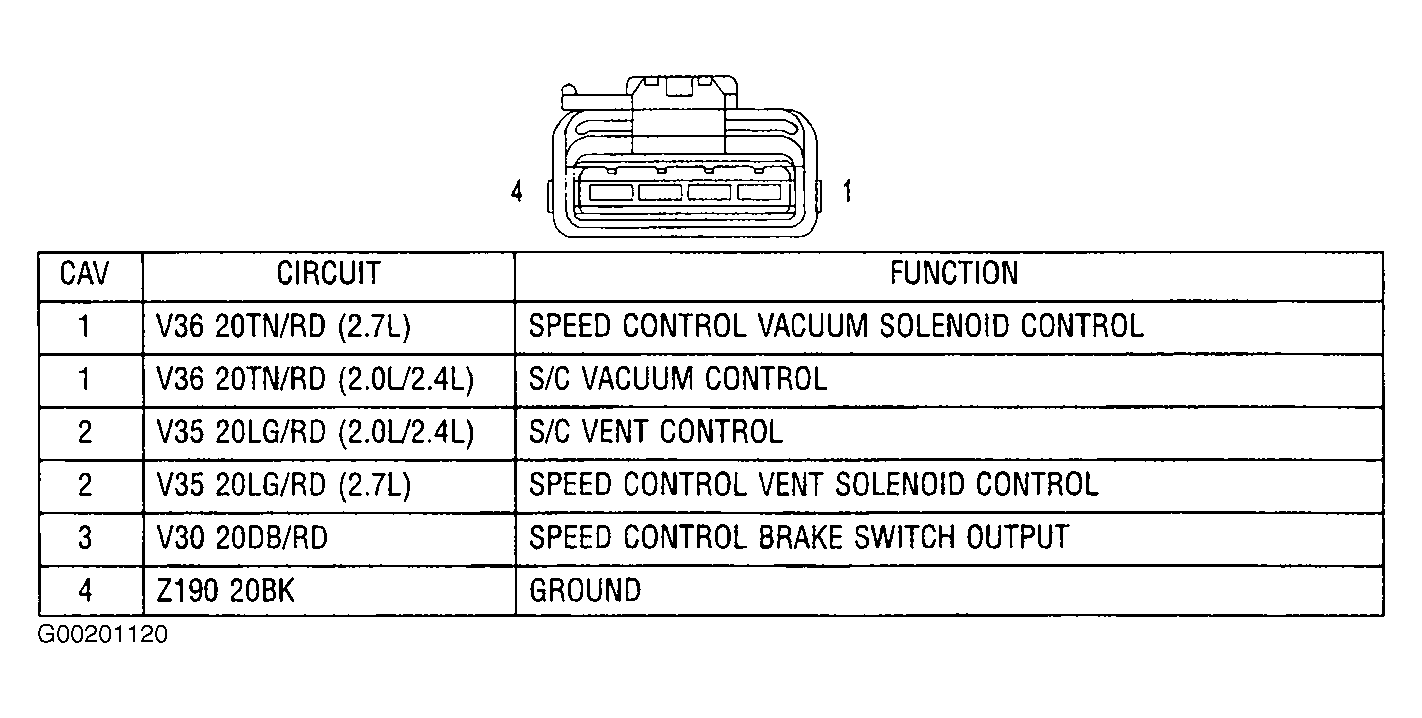

Fig 44: Identifying Vehicle Speed Control Servo Harness Connector
G00201120Courtesy of CHRYSLER CORP.
