Data Link Connector

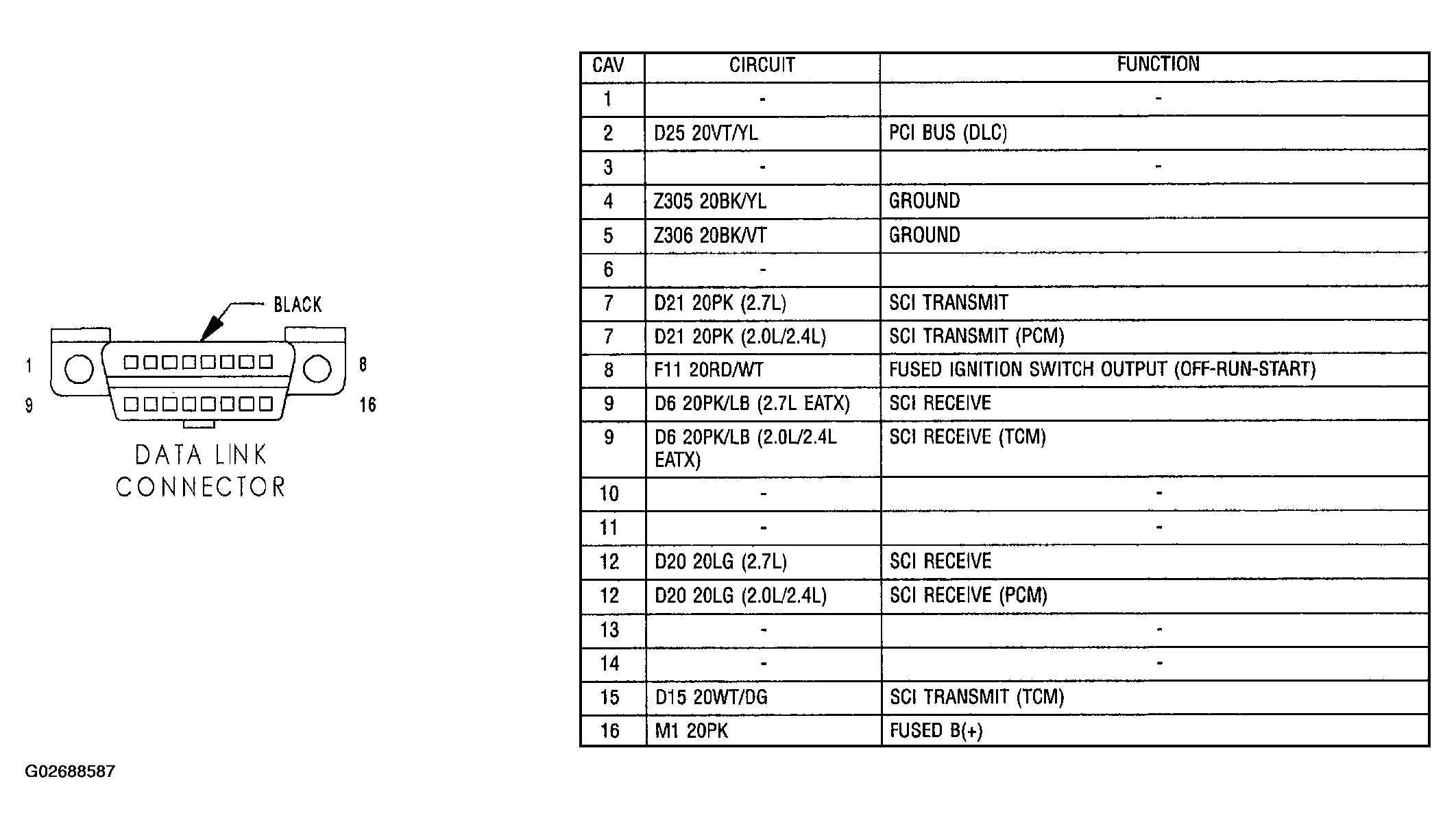

Fig 1: Identifying Data Link Connector Pinouts
Courtesy of DAIMLERCHRYSLER CORP.
