Transmission Control Relay

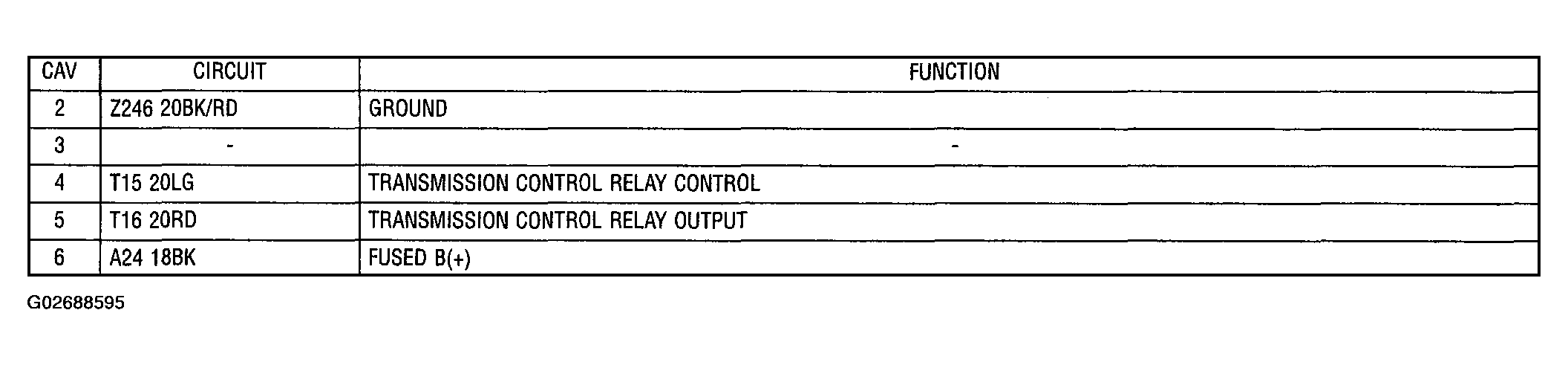

Fig 1: Transmission Control Relay Fuses Connector Pinouts Function Reference Index
G02688595Courtesy of DAIMLERCHRYSLER CORP.
