Removal - 2.4L

The camshaft position sensor is mounted to the rear of the cylinder head.

1. Remove the negative battery cable.
2. Disconnect electrical connectors from the camshaft position sensor (Fig 1 ).
   Fig 1: Disconnecting EGR/CAM Sensor 2.4L

   Courtesy of DAIMLERCHRYSLER CORP.
3. Remove camshaft position sensor mounting screws. Remove sensor.
4. Loosen screw attaching target magnet to rear of camshaft and remove magnet (Fig 2 ).

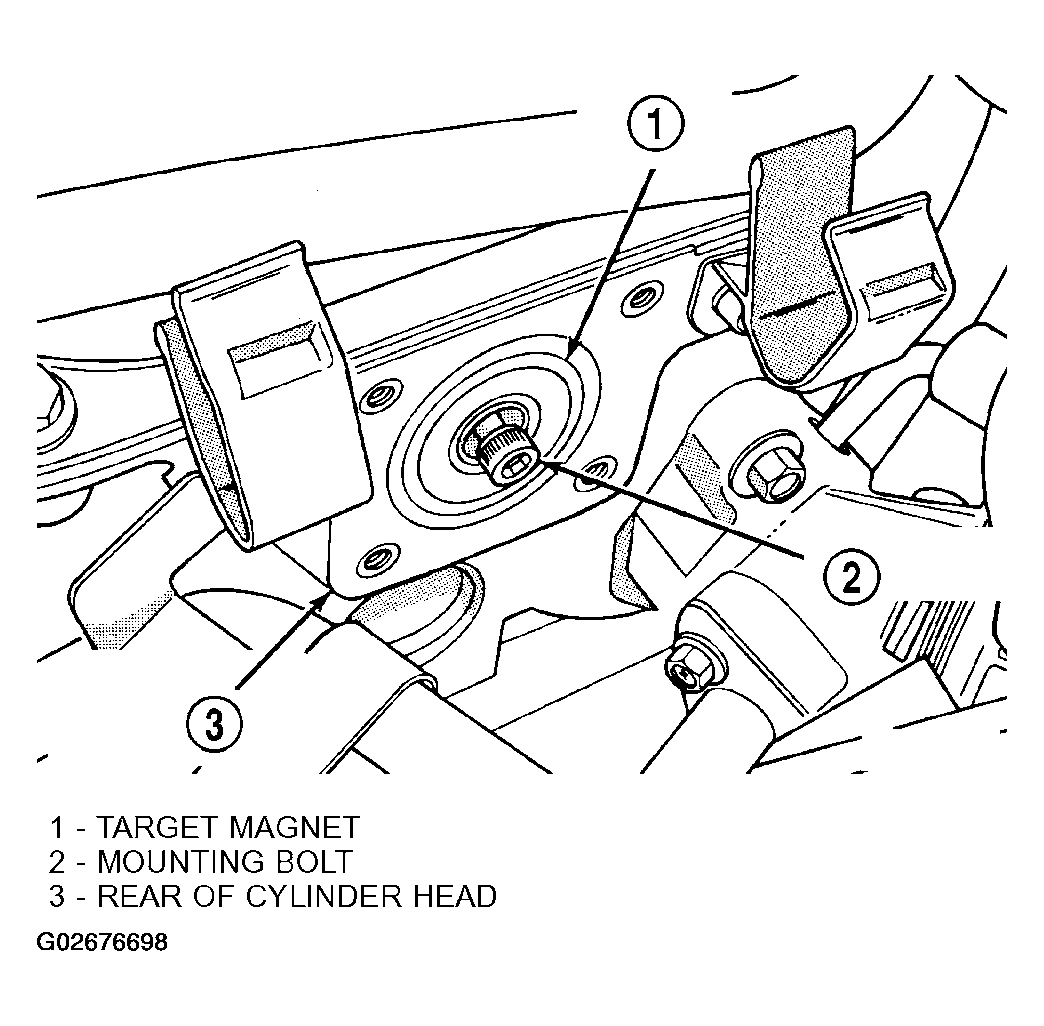

   Fig 2: Removing/Installing Target Magnet

   Courtesy of DAIMLERCHRYSLER CORP.
