Transmission Control Module (3.3L/3.8L) Connector End View

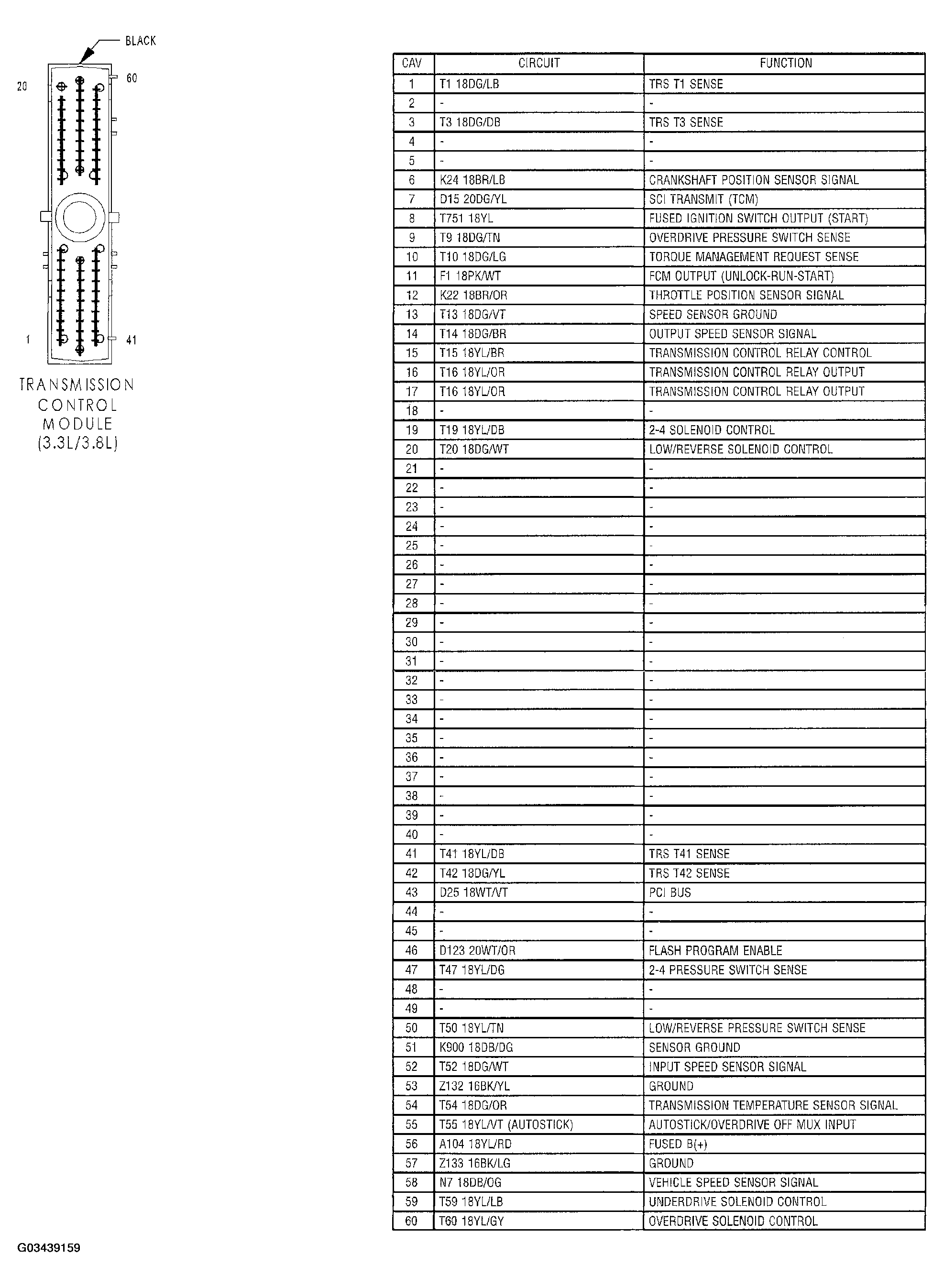

Fig 1: Transmission Control Module (3.3L/3.8L) Connector End View
G03439159Courtesy of DAIMLERCHRYSLER CORP.
