Chime Inoperative

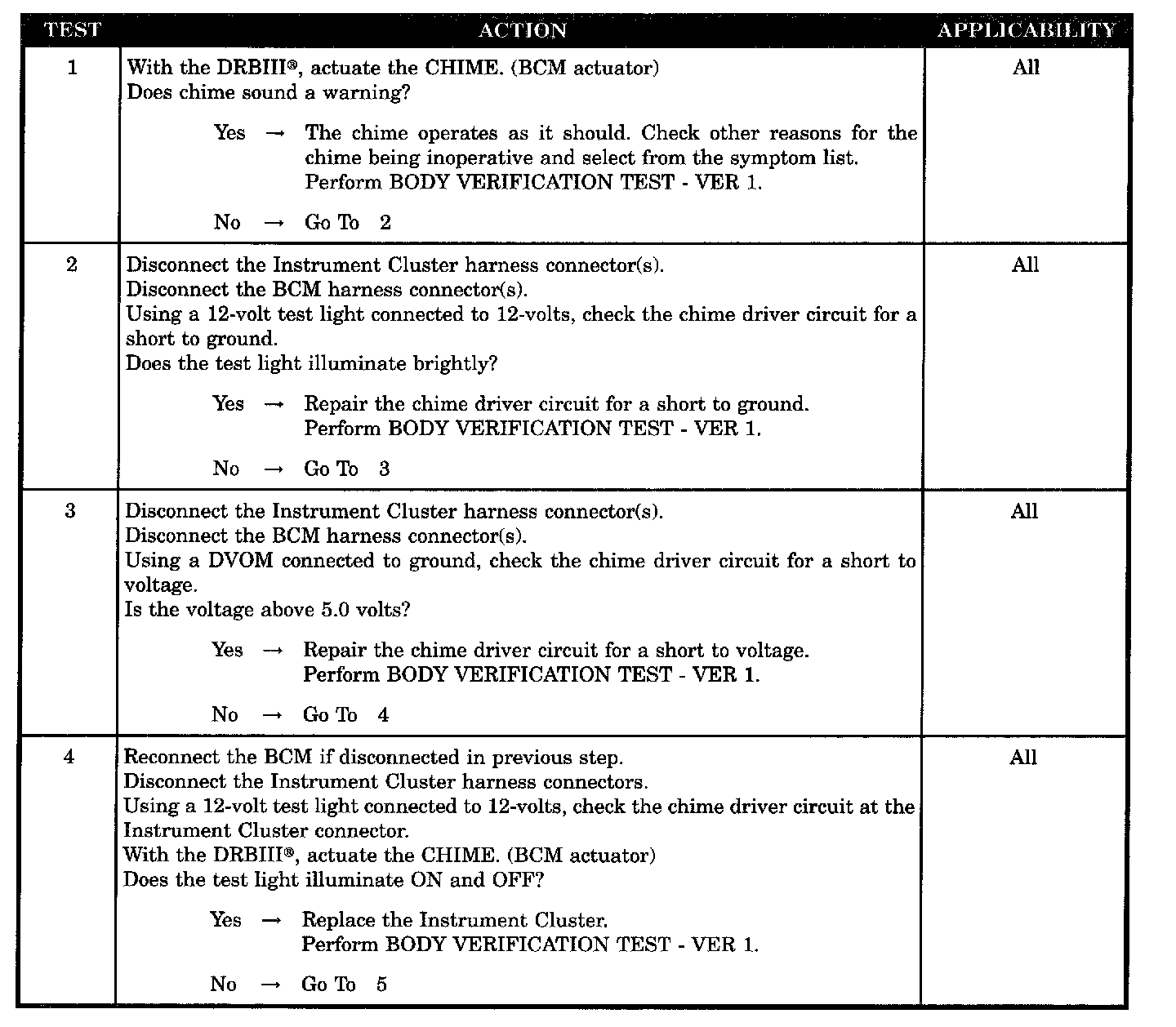

Test 1 - 4:

Test 5:

SYMPTOM
CHIME INOPERATIVE

POSSIBLE CAUSES
- Use DRB to actuate CHIME
- CHIME driver circuit - open
- CHIME driver circuit - short to ground
- CHIME driver circuit - short to voltage
- Instrument cluster
- BCM
