Intake Manifold Bolt Torque Sequence/Specifications

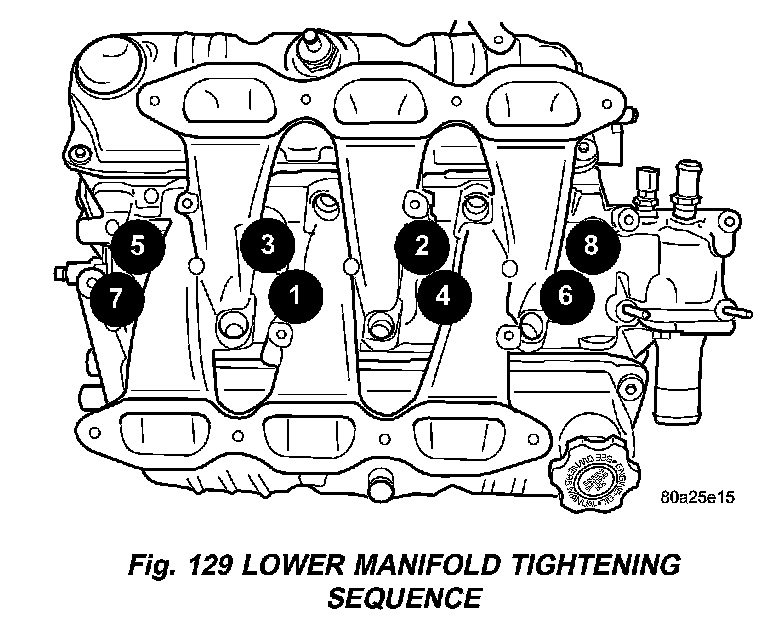

Fig.129:

Lower Intake Manifold Bolts
Step 1 1 Nm (10 in. lbs.)
Step 2 22 Nm (200 in. lbs.)
Step 3 22 Nm (200 in. lbs.)

Fig.124:

Upper Intake Manifold Bolts 12 Nm (105 in lbs.)
