Crossfire Automatic
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Power Door Lock System
>>
Power Locks - Electrical Diagnostics
>>
Diagnosis And Testing
>>
No Communication With Body Control Module And Central Locking Pump/Security System Module
>>
Circuit Diagram & Connector Identification
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram & Connector Identification

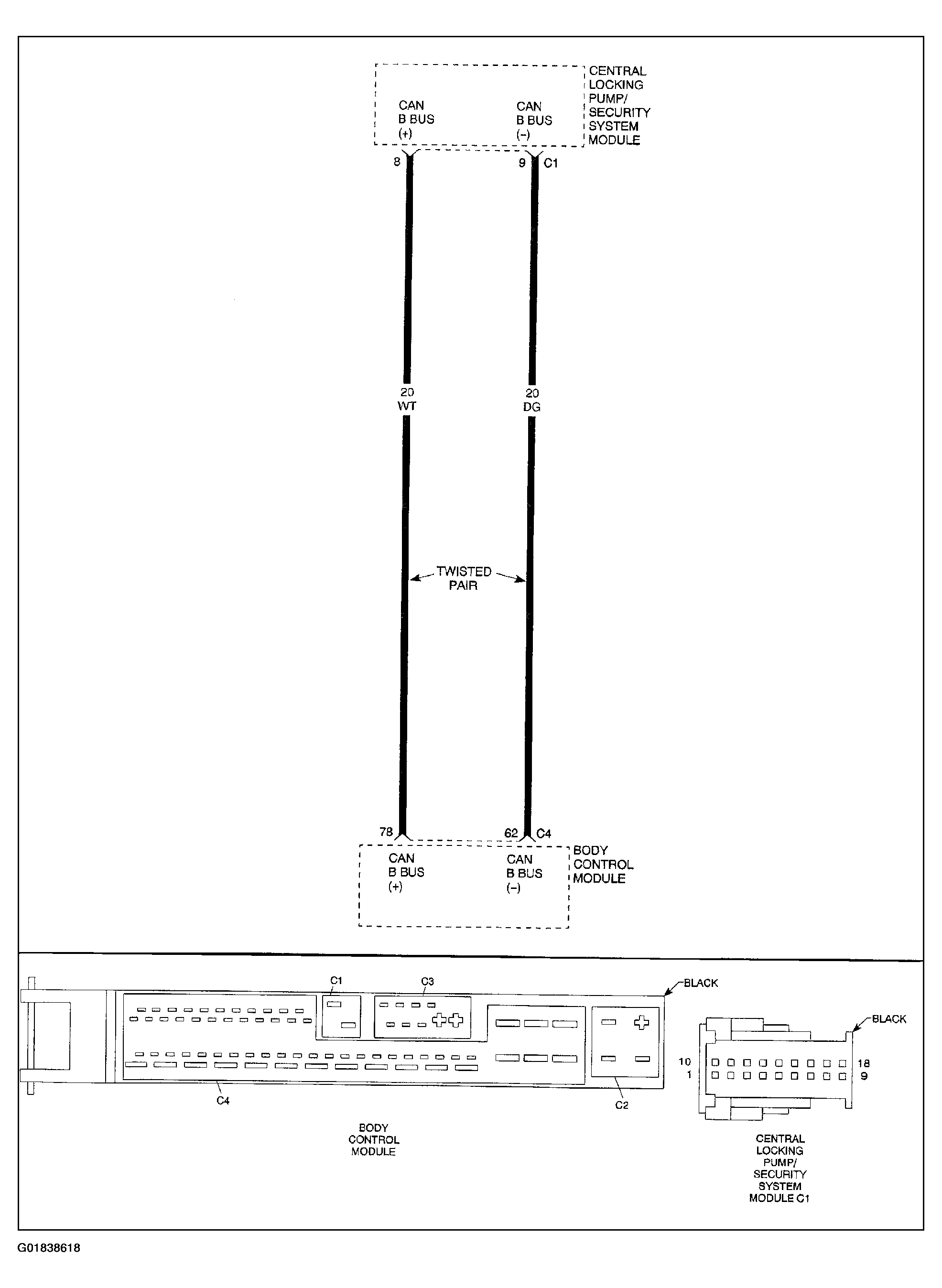

Fig 1: Identifying No Communication With Body Control Module & Central Locking Pump/Security System Module Circuit Diagram & Connector Identification
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
