Circuit Diagram & Connector Identification

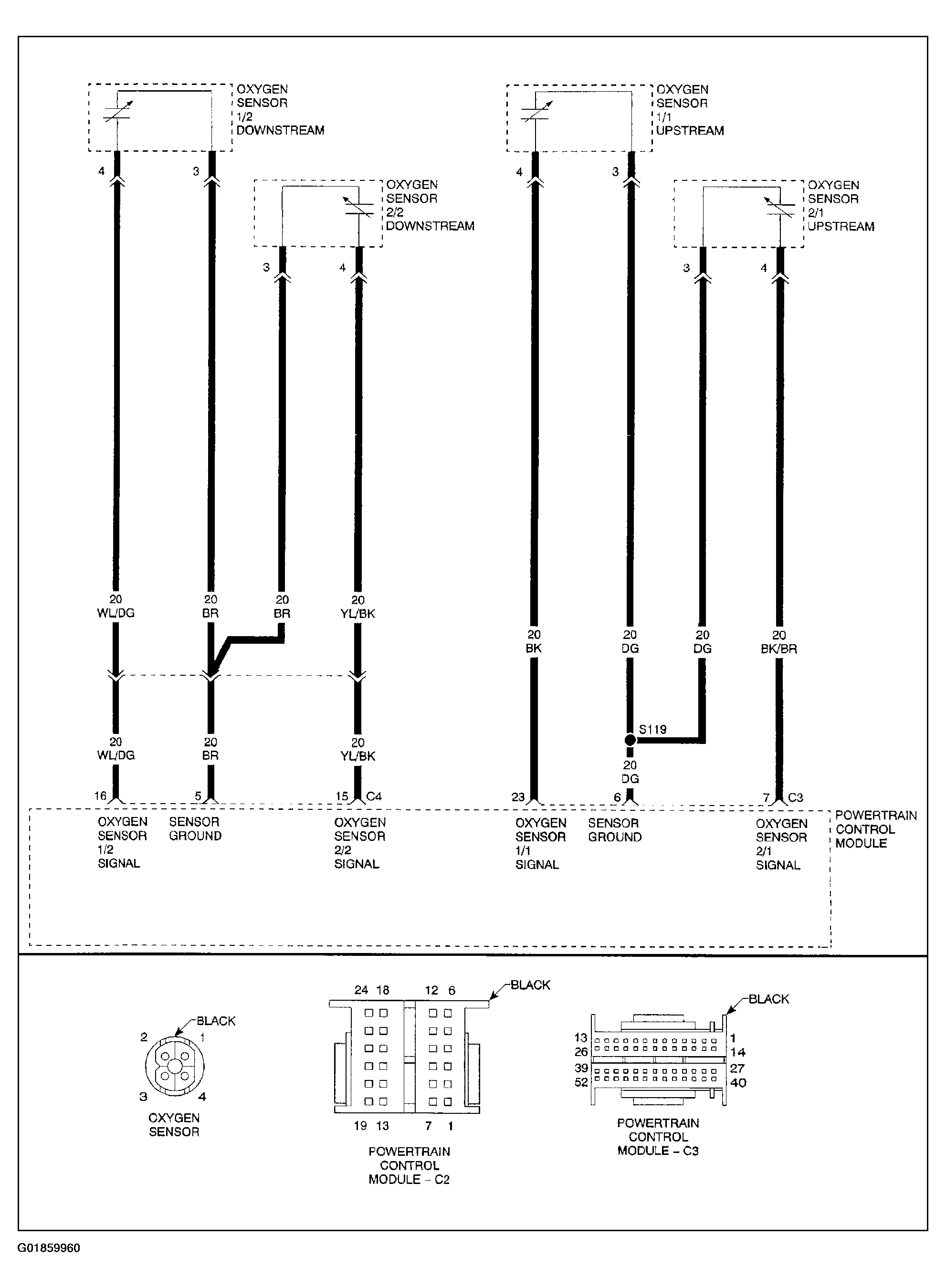

Fig 1: Identifying DTC P0140 Circuit Diagram & Connector Identification
G01859960Courtesy of DAIMLERCHRYSLER CORP.
