Circuit Diagram & Connector Identification

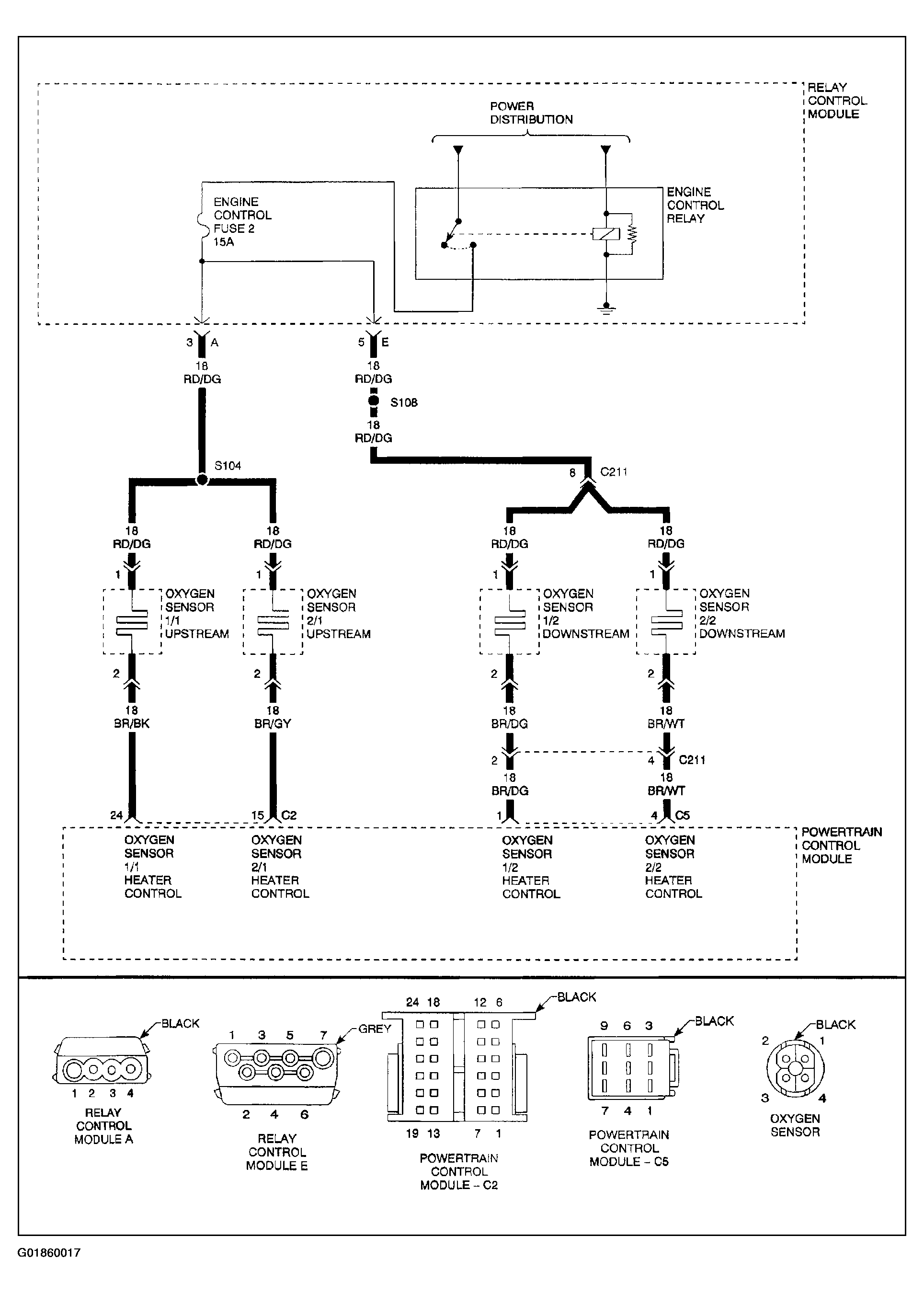

Fig 1: Identifying DTC P0161 Circuit Diagram & Connector Identification
G01860017Courtesy of DAIMLERCHRYSLER CORP.
