Anti Theft Tow Sensor Connector End View

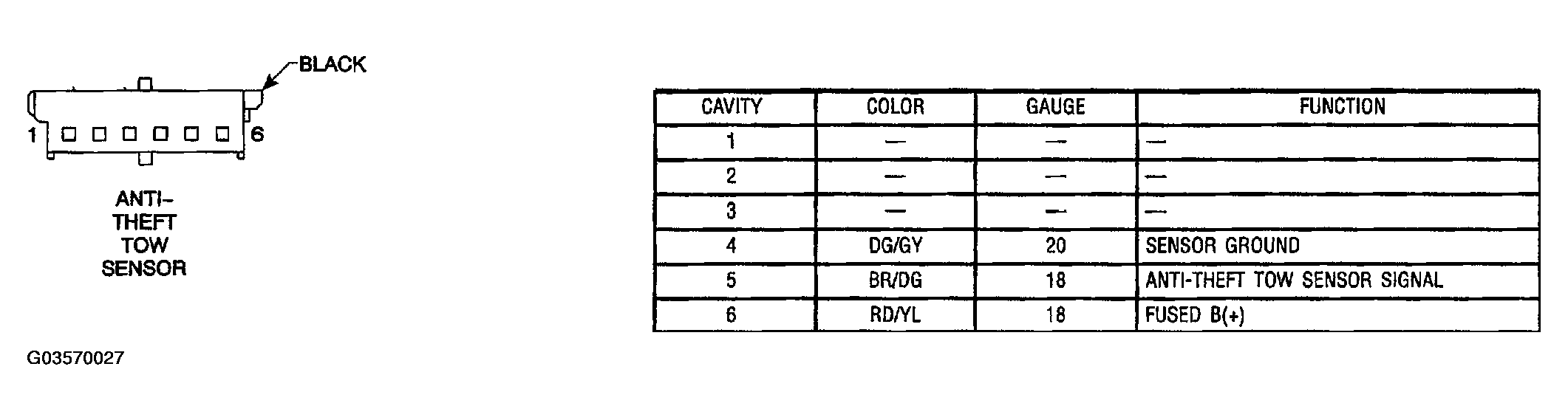

Fig 1: Anti Theft Tow Sensor Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
