Alignment Specifications

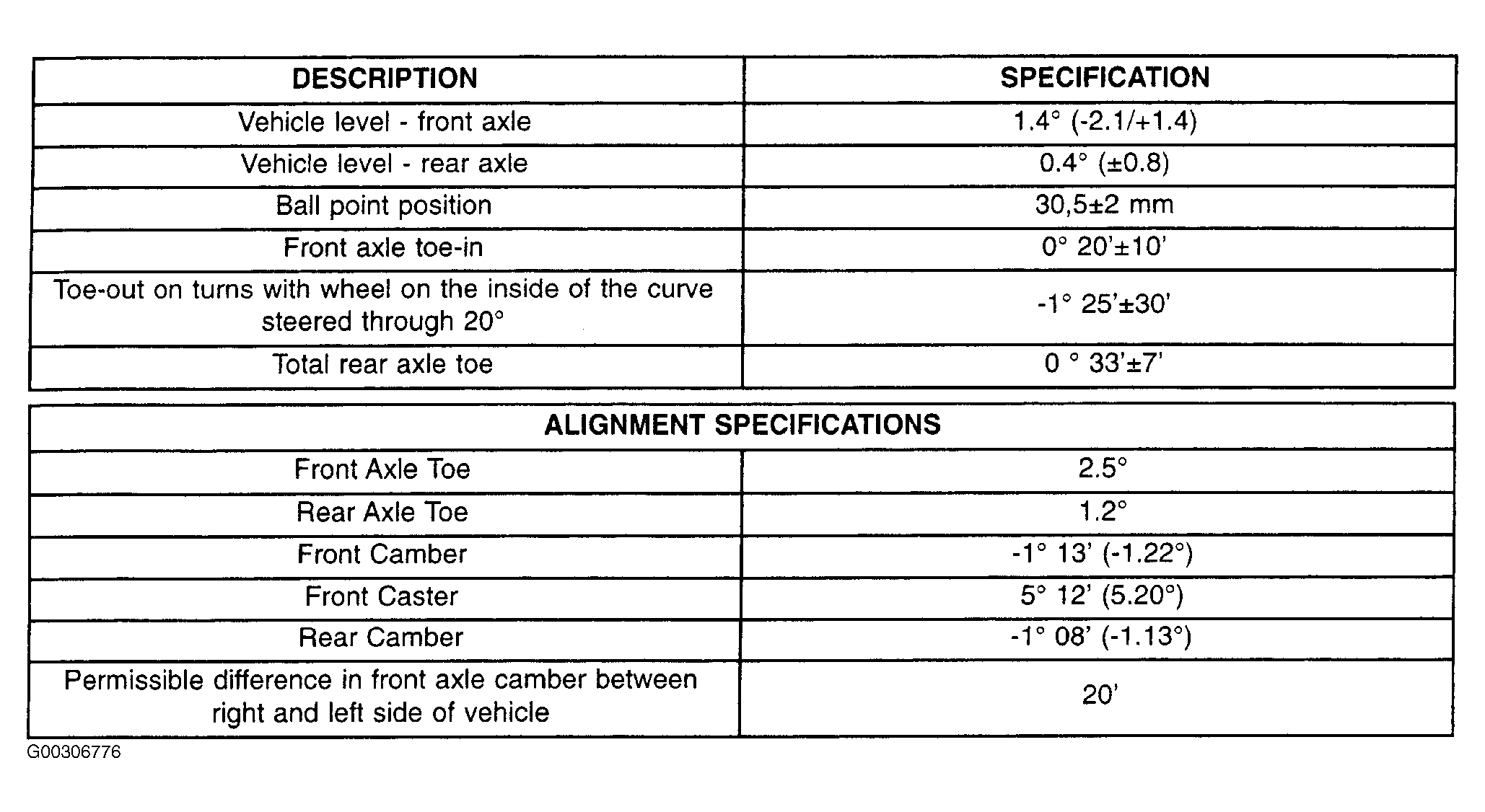

Fig 1: Wheel Alignment Specifications
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
