Relay Control Module Connector End View (C)

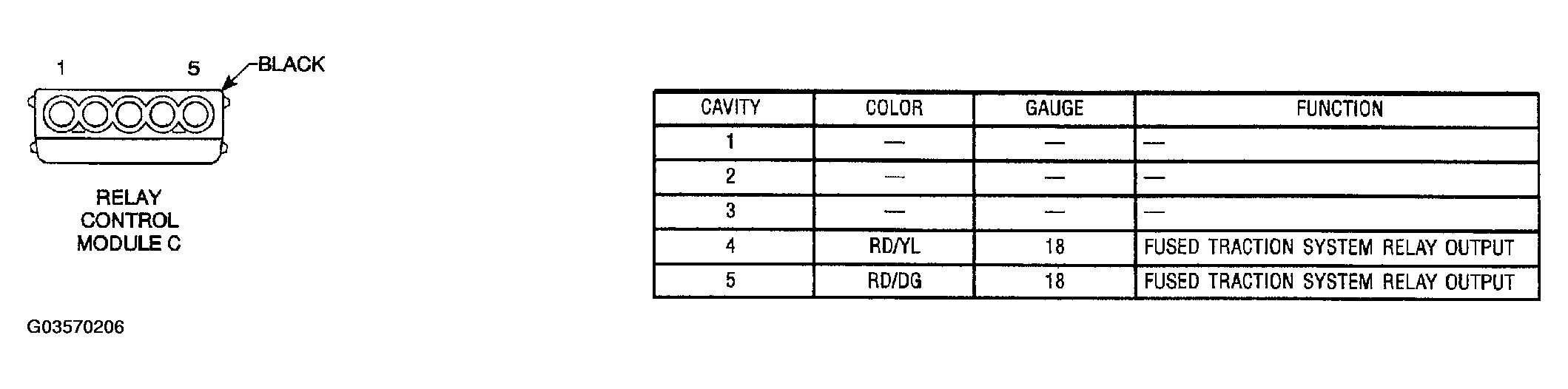

Fig 1: Relay Control Module Connector End View (C)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
