Schematics And Diagrams

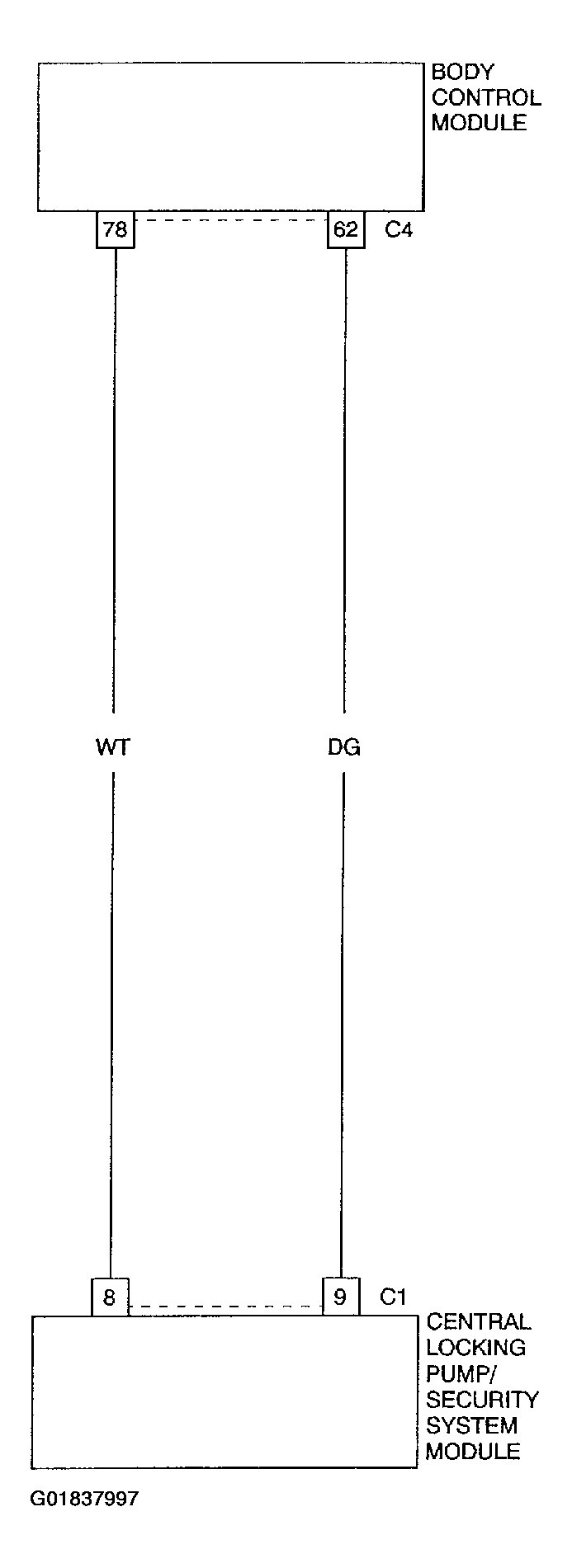

Fig 1: Identifying CAN B BUS - Automatic Transmission Circuit Diagram

Courtesy of DAIMLERCHRYSLER CORP.

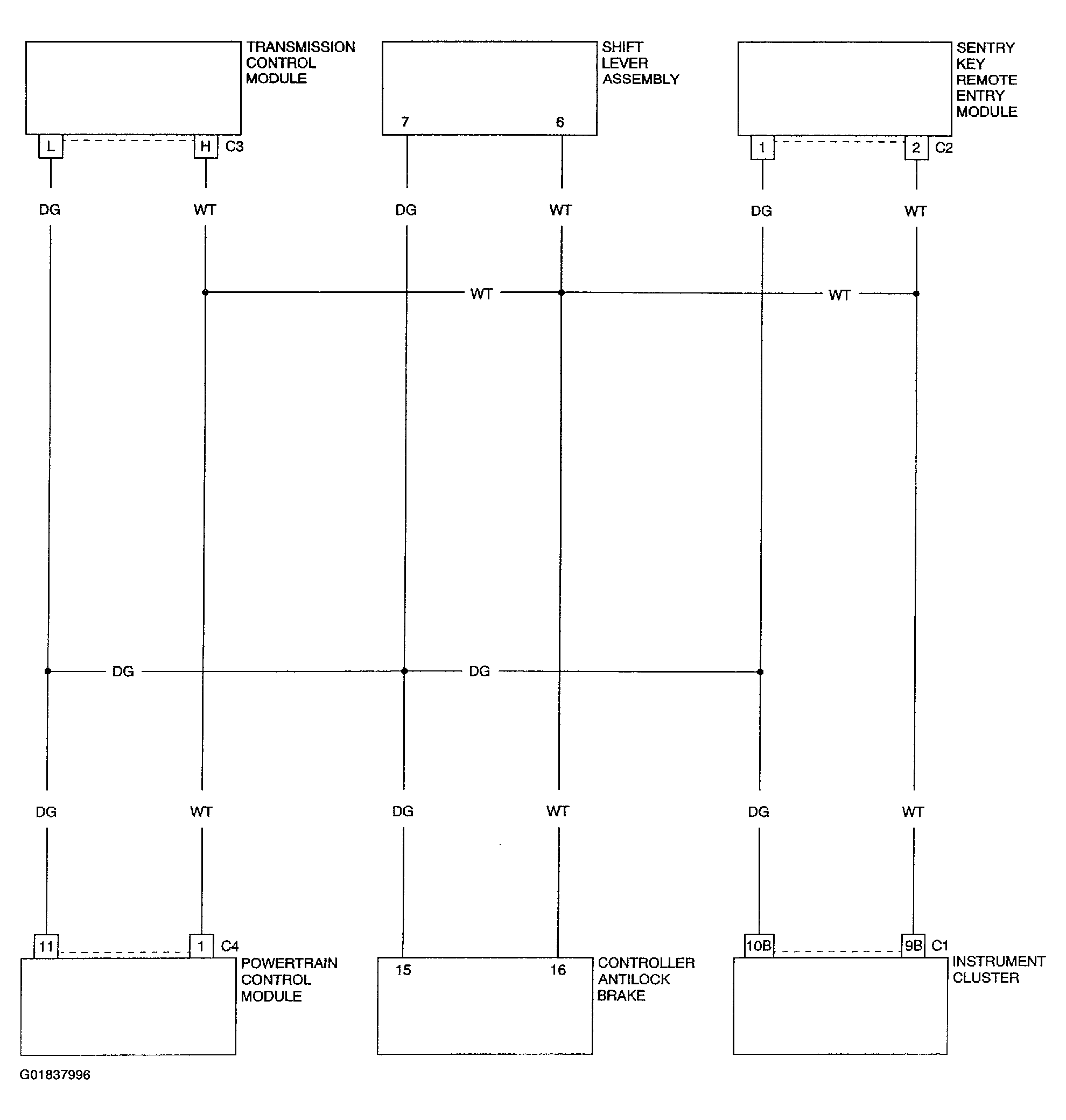

Fig 2: Identifying CAN C BUS Circuit Diagram

Courtesy of DAIMLERCHRYSLER CORP.

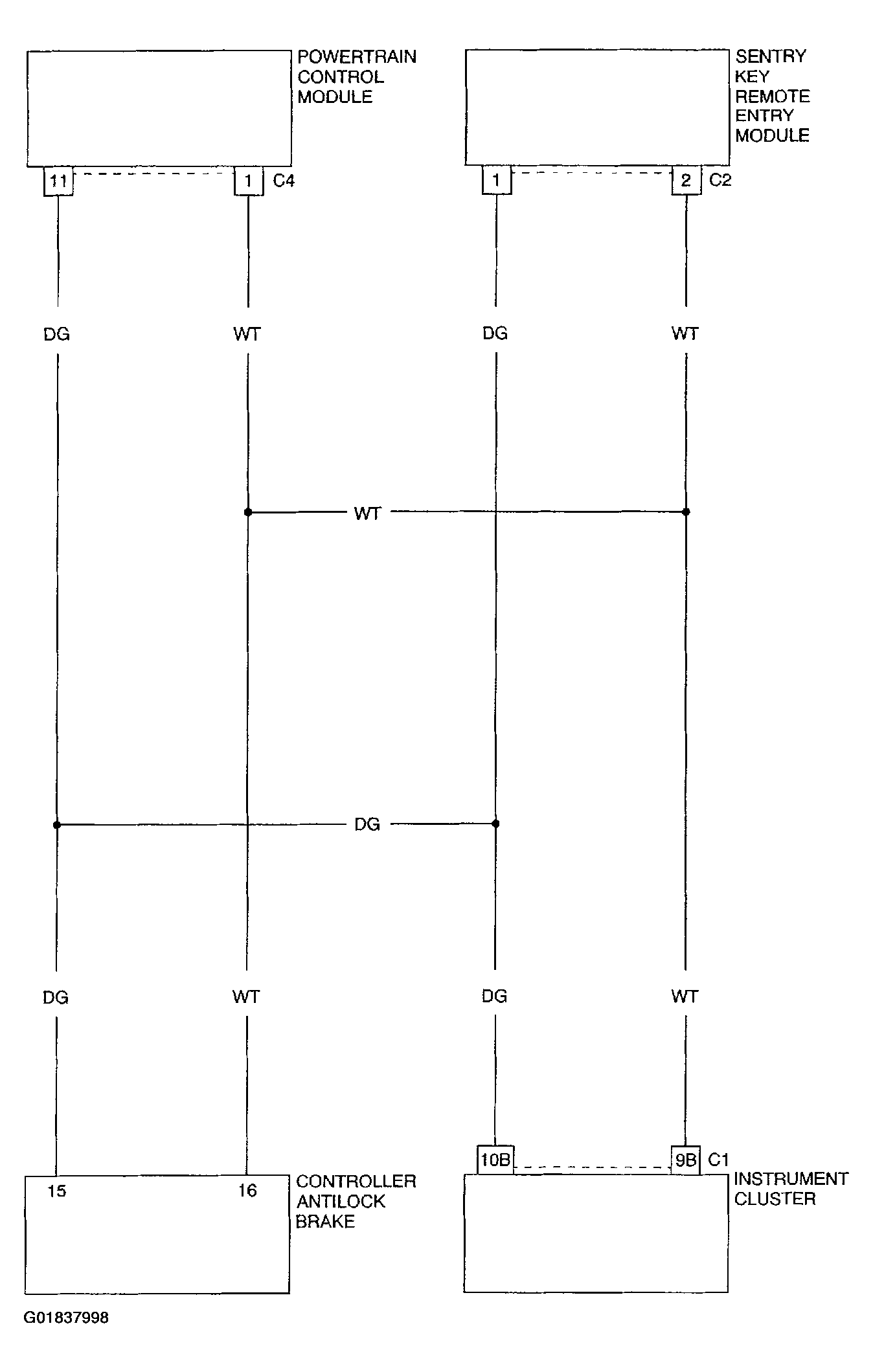

Fig 3: Identifying Manual Transmission Circuit Diagram

Courtesy of DAIMLERCHRYSLER CORP.

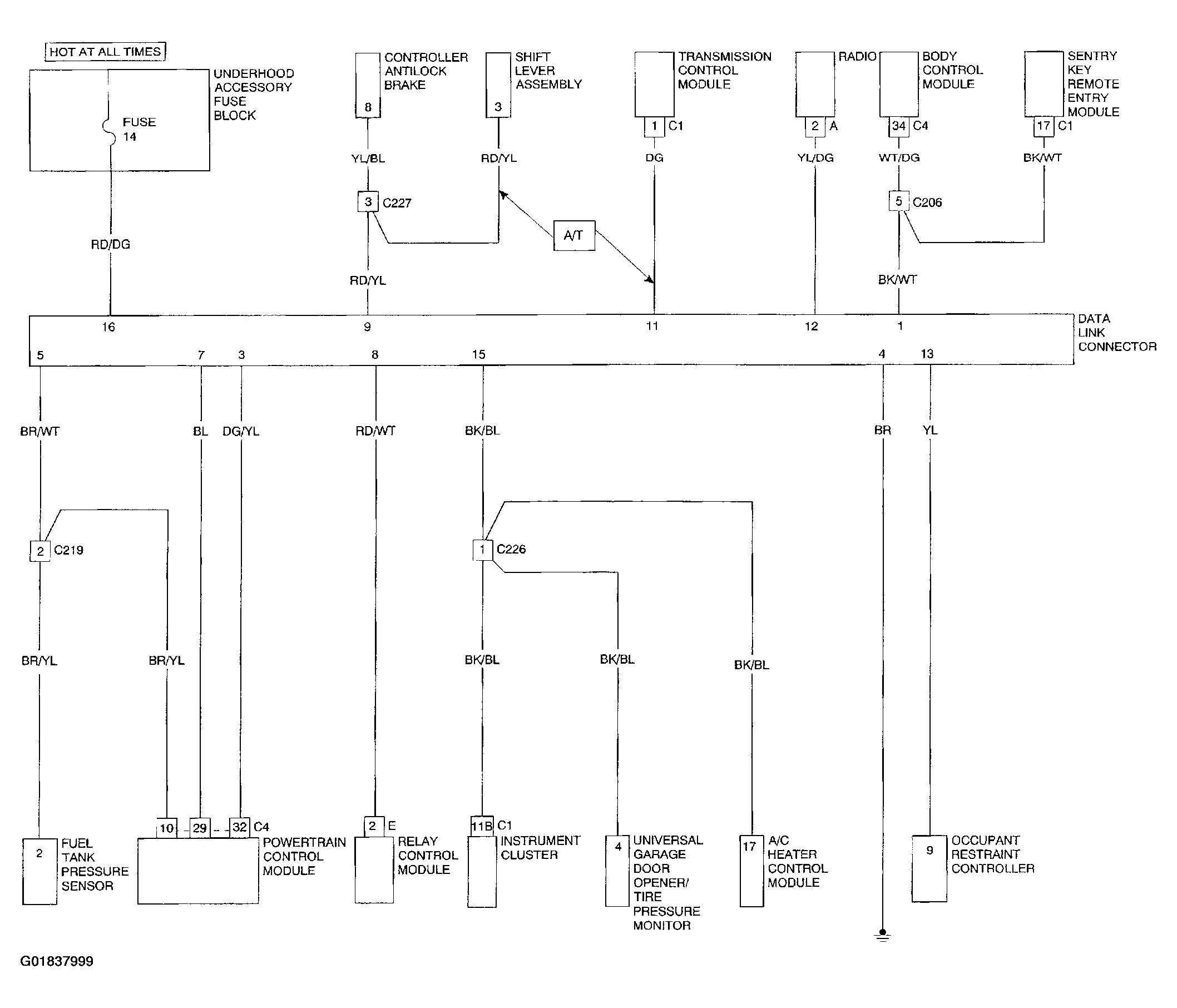

Fig 4: Identifying Data Link Connector Circuit Diagram

Courtesy of DAIMLERCHRYSLER CORP.

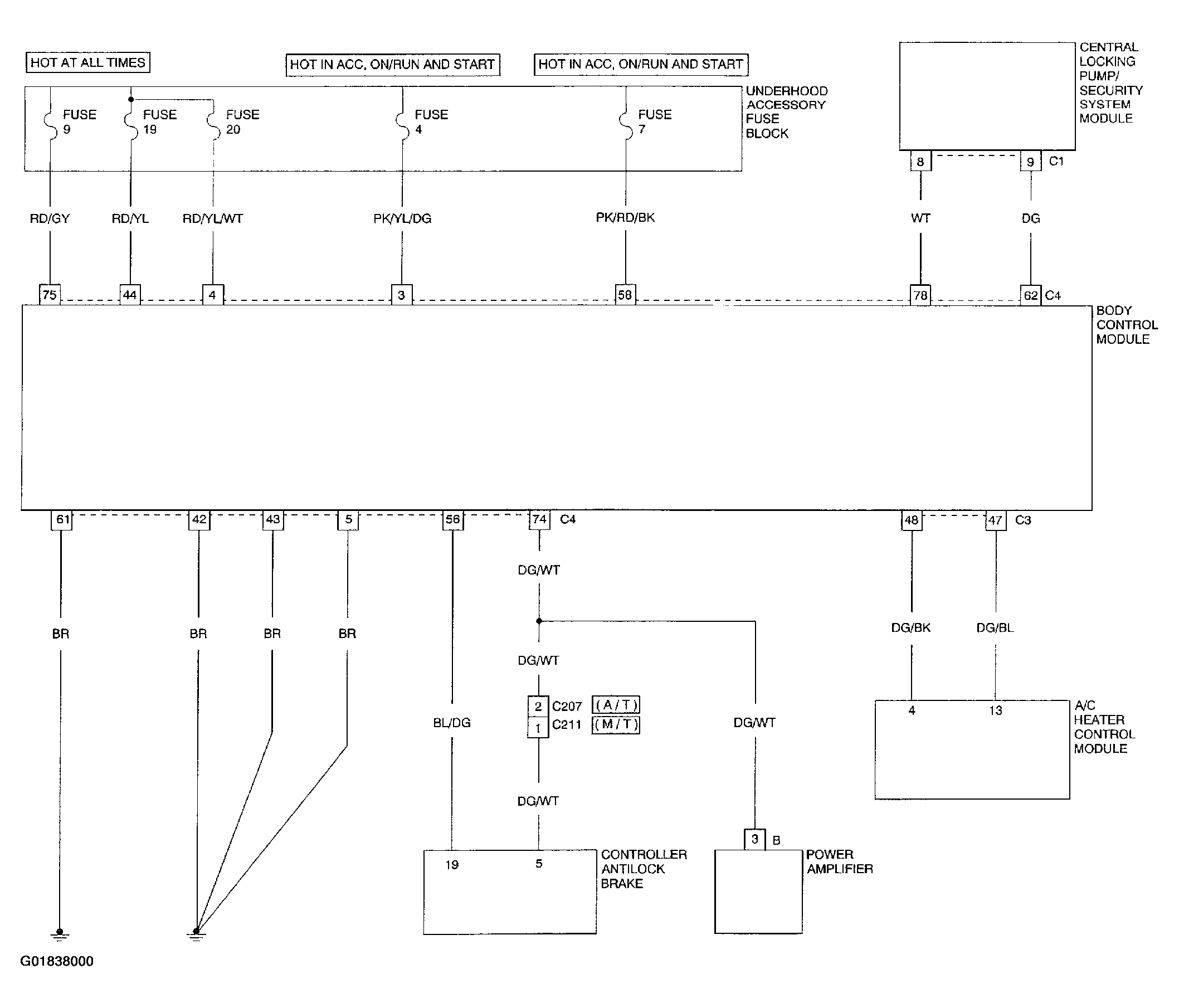

Fig 5: Identifying Body Control Module Circuit Diagram (1 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.

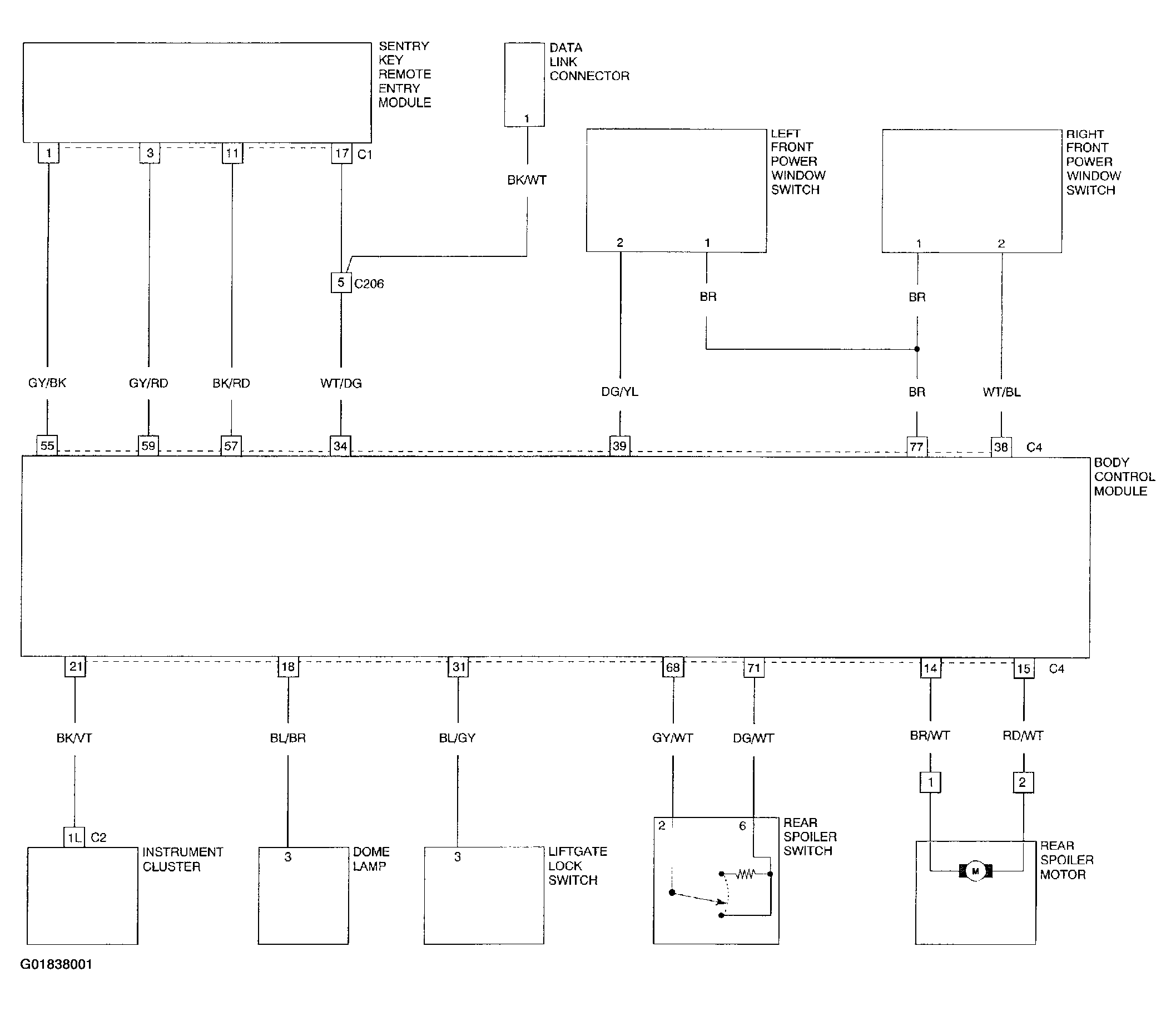

Fig 6: Identifying Body Control Module Circuit Diagram (2 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.

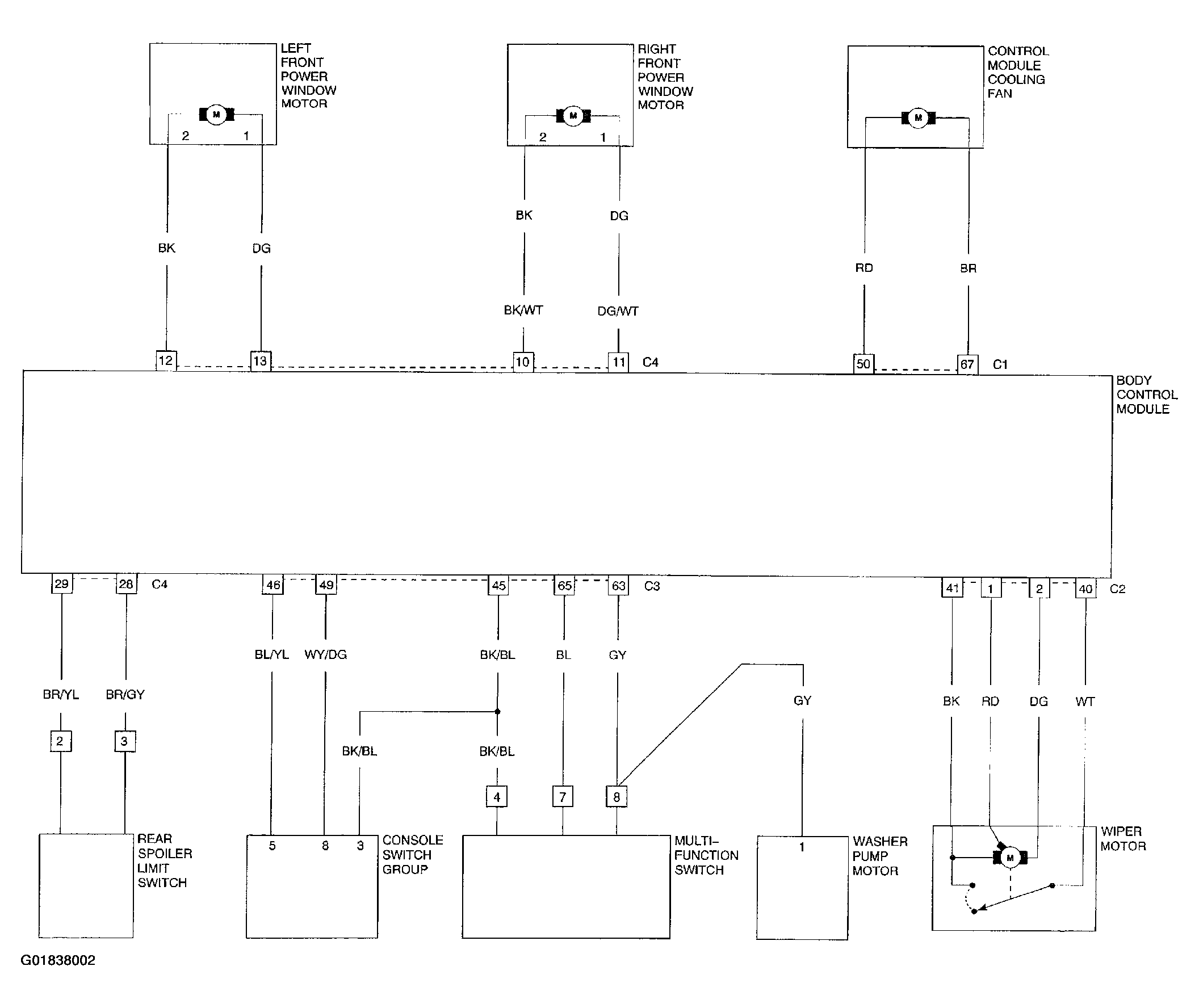

Fig 7: Identifying Body Control Module Circuit Diagram (3 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.
