Heated Seat Module: Installation

The heated seat control module is integrated within the heated seat switch assembly. For complete heated seat control module installation procedures, see HEATED SEAT SWITCH .

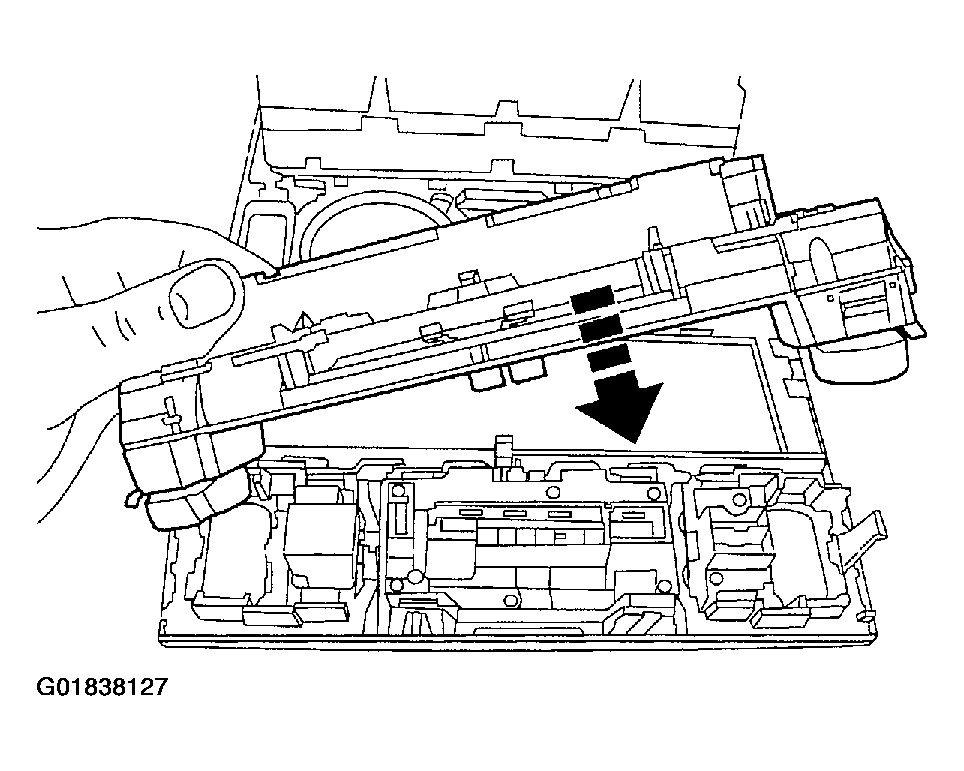

Fig 1: Installing Heated Seat Module

Courtesy of DAIMLERCHRYSLER CORP.
